ROCKET is the latest Mini HD ( HIGH-DEFINITION) Digital image Transmission FPV SYSTEM MICRO QUAD developed by GEPRC. There are two versions of ROCKET to choose from, namely ROCKET PLUS and ROCKET LITE. They have their own advantages. ROCKET PLUS can record 1080P video at 60fps on the SD card of the DJI Air-Unit. It weighs 148g and has high playability. ROCKET LITE can’t record on the drone itself, it can only record 720P video on the FPV Goggle side, but the advantage is that it is lightweight which is only 128g.
ROCKET’s LITE and PLUS using the FPV system which is Caddx Vista HD FPV and DJI FPV Air Unit , each of which has its own advantages. The electronic system and power system use the latest AIO integrated board GEP-20A-F4 developed by GEPRC. It has high integration, lightweight and stability. The motor uses GR1204 5000KV, and it is equipped with a 2-inch 4-blade propeller, which has sufficient power and high efficiency, which is the perfect match and in addition the DJI FPV System has eight frequency channels, allowing eight pilots to fly simultaneously.
“BOTH VERSIONS ROCKET ” completely assembled and tuned by professional GEPRC team.
December 20, 2021: The camera changed from Caddx Vista to Caddx Vista kit Air unit(lite) and DJI lens.
July 19th, 2022: Camera changed to Nebula Pro.
- The Re-Designed Frame is very compact and sturdy, and the propeller cannot be seen in the video.
- With Caddx Vista HD video transmission system, Goggle can record 720P video
- Equipped with a 2-inch Props guards, very safe for flying indoor and outdoor, and the propeller will not be scratched
- Full 3K carbon fiber plate with High-precision Carbon Fiber CNC engrave
- Use new GEP-20A-F4 AIO to integrate flight control and ESC system
- High efficiency power system, motor GR1204 5000KV and 2 inch 4-blades propeller
- The flight controller with soft mounts, so that the gyroscope has a good operating environment
- Completely eliminate jelly from footage and stable Image during the flight

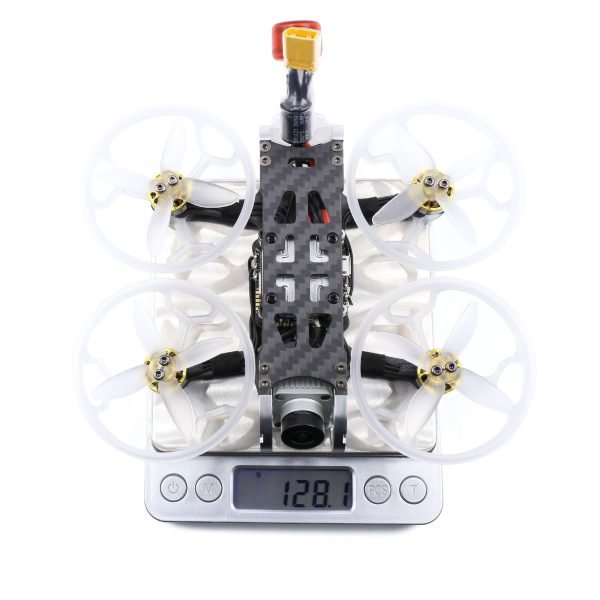

- Light weight up to 128g (excluding battery)
- Professional assembly process, eliminate some potential installation problems
- Model：ROCKET Lite
- Stack：GEP-20A-F4 AIO
- Gyro: 6-Axis
- ESC：BLhelis 20A
- FPV System：CADDX Vista
- Camera：Nebula Pro
- Motors：GR1204 5000KV
- Props：AVAN MICRO 2 inch
- Top plate thickness：3mm
- Bottom plate thickness：3mm
- Weight：128g（without battery）
- Battery：Recommended use 4S 650-850mAh
Caddx Vista SPECS
- Size: 30.45 x 29 x 13mm
- Weight: 19g
- Antenna Connector: U.FL
- 20×20 stack
- 200mw to 1200mw max output power
- Range 4km max
- 2S to 6S
- High quality mode 30-40 ms
- Low latency mode 21-28ms
- Compatible with DJI FPV camera
- Compatible with DJI FPV goggles

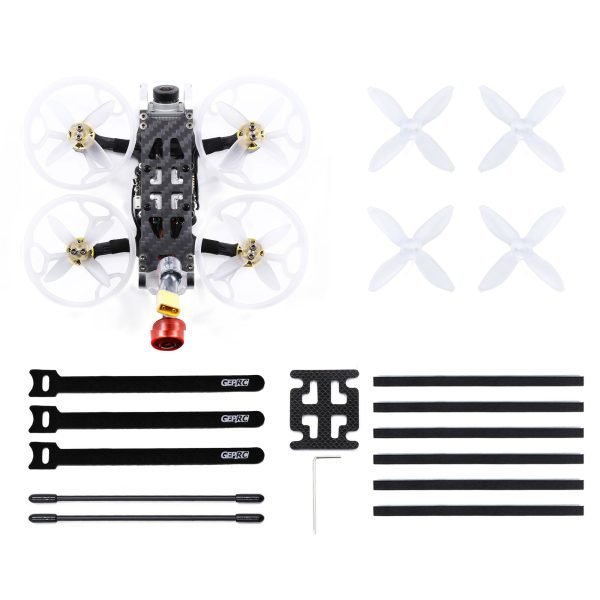

- 1x ROCKET Lite Quadcopter
- 4x 2inch Props(pairs)
