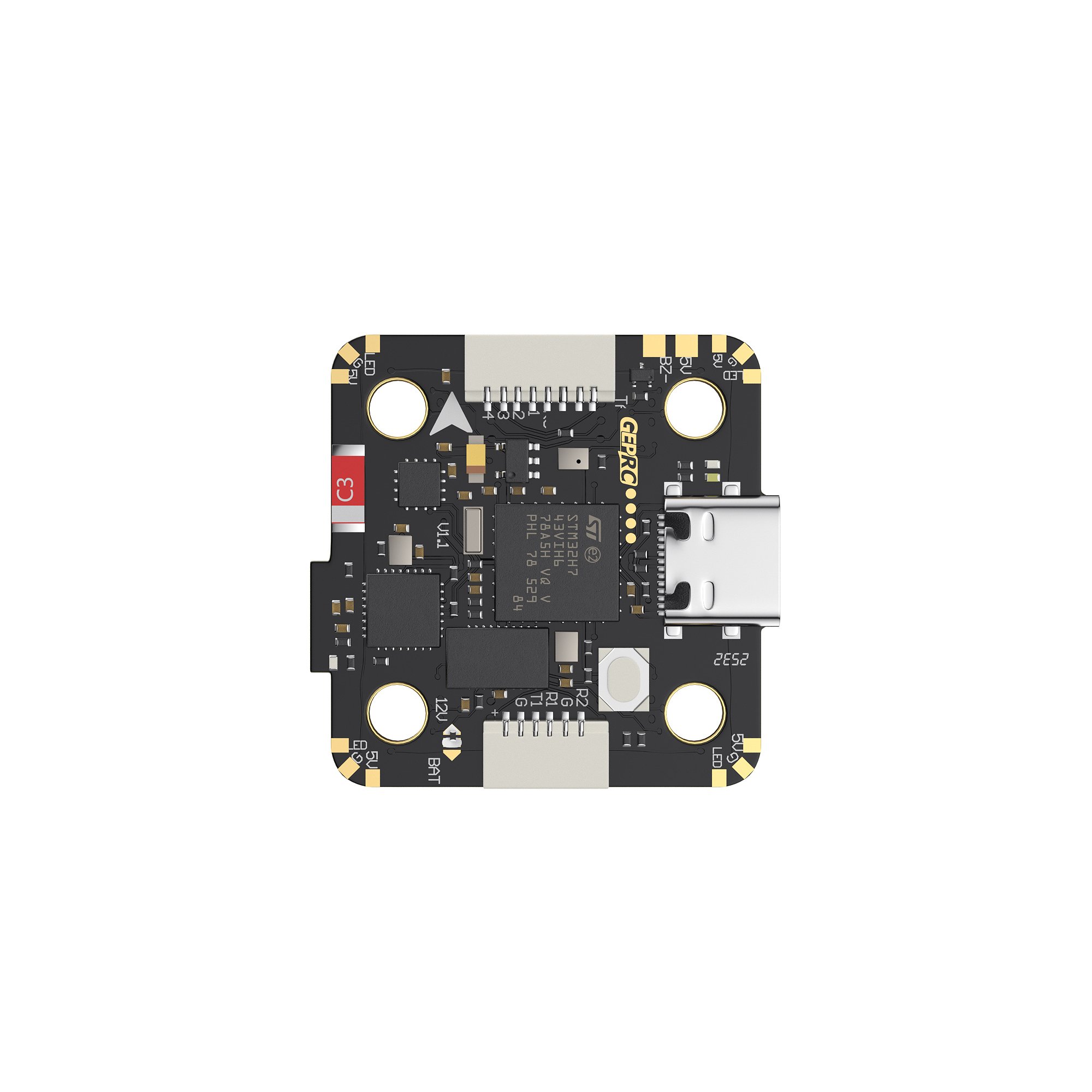

GEPRC TAKER H743 MINI Flight Controller

$45.99

SKU: GP108356 Categories: , Tags: , ,

Specifications

  • FC Model: TAKER H743 MINI Flight Controller
  • MCU: STM32H743
  • IMU: ICM42688-P (Gyro)
  • Air Unit Connector: DJI Plug & Play
  • Blackbox: 16MB onboard
  • Bluetooth: Supported
  • BEC Output: 5V@3A, [email protected] (Dual)
  • USB: Type-C
  • OSD: Betaflight OSD AT7456E
  • Barometer: Supported
  • Firmware Target: GEPRC TAKER H743 MINI
  • Input Voltage: 3–8S LiPo
  • FC Dimensions: 31×31mm
  • Mounting: 20×20mm
  • Power Filtering: Integrated LC filter
  • UART: 7 (UART8 reserved for Bluetooth)
  • Weight: 6.1g
