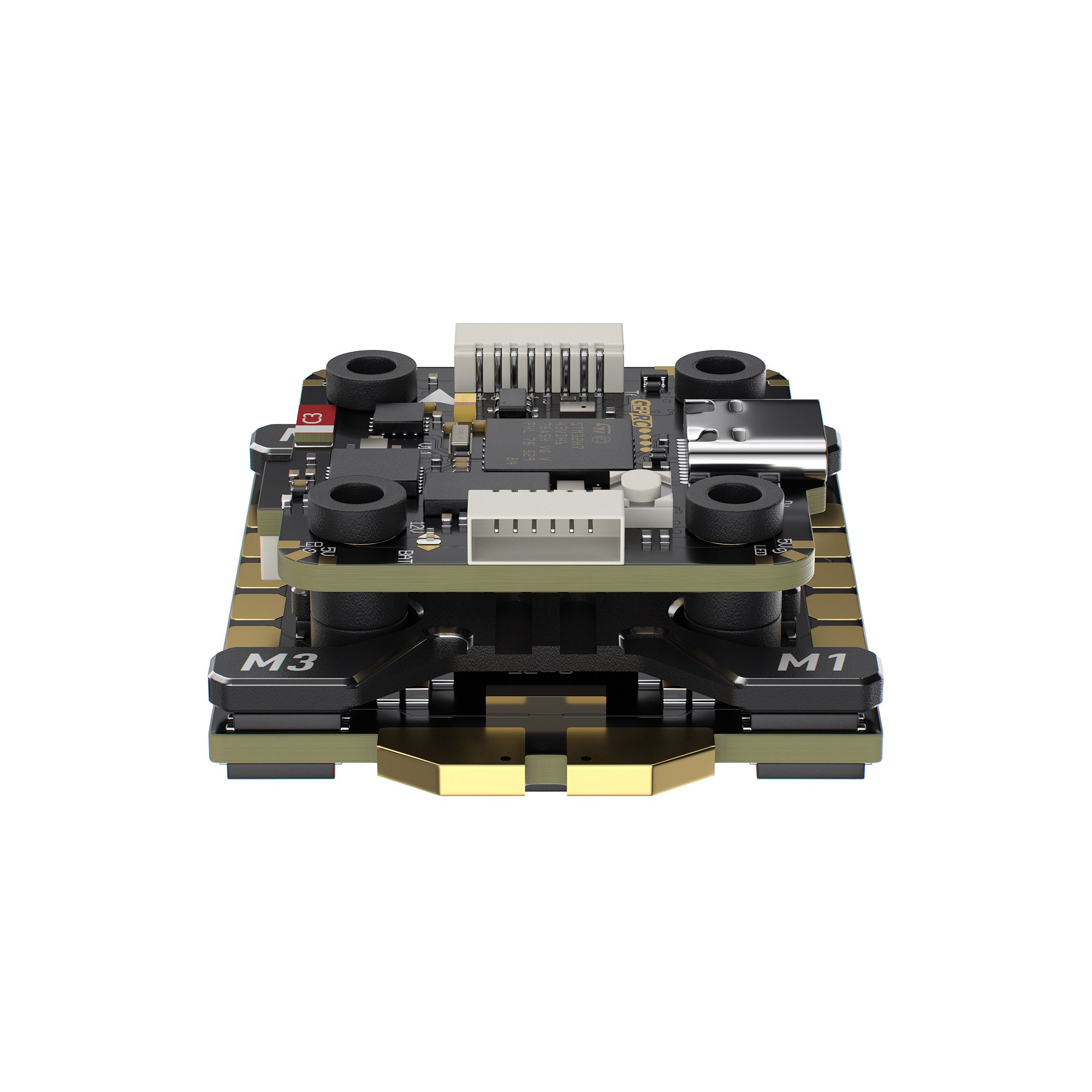

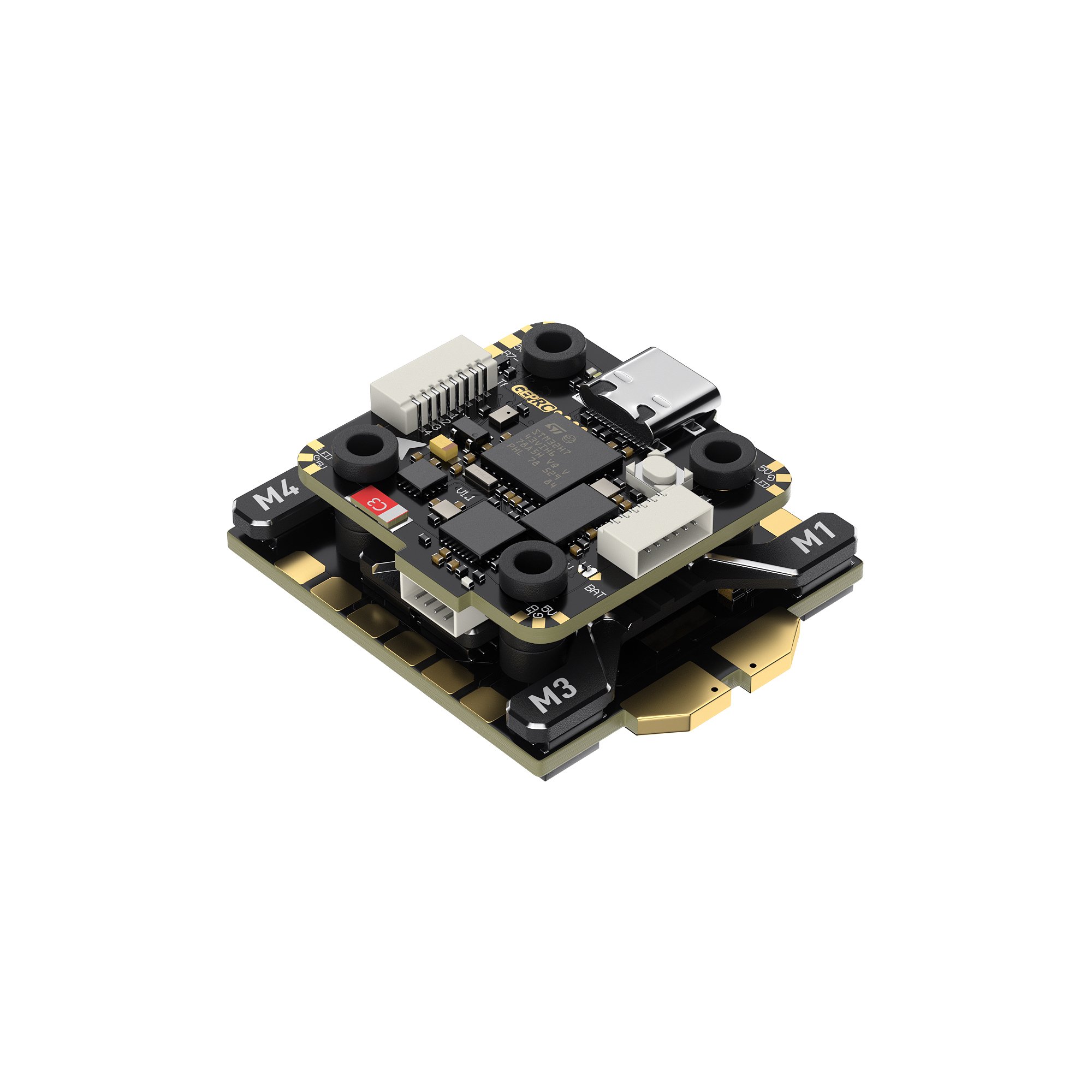

GEPRC TAKER H743 MINI 32Bit 60A STACK

Summary

TAKER H743 MINI 32Bit 60A Stack is GEPRC’s next-gen mini flight stack, powered by an STM32H743VIH6 (Cortex-M7) MCU and ICM42688-P gyro. With high PSRR LDO filtering and external gyro clock support, it delivers stable and precise flight performance.

Paired with the TAKER H60 MINI 60A 4-in-1 ESC (AM32 pre-installed), supporting 3–8S LiPo input. High-spec MOSFETs and TVS protection ensure reliable power and fast response for smooth, controlled flight.

Feature

1. Equipped with ICM42688-P gyroscope
2. Supports external gyro clock input
3. Built-in 16MB Blackbox storage
4. Bluetooth wireless tuning supported
5. Integrated barometer
6. 8 motor outputs, supports X8 configuration
7. Dual independent BEC: [email protected] + 5V@3A
8. Onboard TVS spike protection design

Specifications

GEPRC TAKER H743 MINI 32Bit 60A STACK

FC model: TAKER H743 MINI Flight Controller

• FC Model: TAKER H743 MINI
• MCU: STM32H743
• IMU: ICM42688-P (Gyro)
• Air Unit Connector: DJI Plug & Play
• Blackbox: 16MB onboard
• Bluetooth: Supported
• BEC Output: 5V@3A, [email protected] (Dual)
• USB: Type-C
• OSD: Betaflight OSD AT7456E
• Barometer: Supported
• Firmware Target: GEPRC TAKER H743 MINI
• Input Voltage: 3–8S LiPo
• FC Dimensions: 31×31mm
• Mounting: 20×20mm
• Power Filtering: Integrated LC filter
• UART: 7 (UART8 reserved for Bluetooth)
• Weight: 6.1g

ESC Model: TAKER H60 MINI AM32 60A 4IN1 ESC

• Input Voltage: 3–8S LiPo
• Continuous Current: 60A
• Burst Current: 65A (5s)
• Protocol: DShot150/300/600
• ESC Dimensions: 43×36mm
• Weight: 17g (with aluminum heat sink)
• Mounting: 20×20mm
• Firmware: AM32 GEPRC 4IN1 F421

Includes

1× TAKER H743 MINI Flight Controller

1× TAKER H60 MINI 32bit ESC

1× 50V 1000µF Capacitor

1× DJI Air Unit Cable (SH1.0-6P)

1× FC Cable (SH1.0-8P)

1× FC to GPS RX Cable (SH1.0-4P)

1× XT60 Power Cable (12AWG, 55mm)

10× M3 Silicone Dampers

5× M3*22 Stack Screws

6× M3 Nylon Lock Nuts

5× M3 Hex Nuts
