GEPRC MATEN 3.3G 5W VTX PRO

$79.99

SKU: GP107997 Categories: , Tags: , , ,

Summary

The MATEN 3.3G 5W VTX PRO is a high-performance VTX newly developed by the GEPRC team. With four adjustable power options, it delivers up to 5000mW of power.The frequency range is 3083-3495MHz, and it supports direct frequency input by the configurator, ensuring stable signal transmission and excellent penetration.

Built with a high-strength CNC aluminum alloy shell, the MATEN 3.3G 5W VTX PRO offers superior heat dissipation and impact resistance. Its sleek design features a fan cooling function for optimal performance. Supporting the IRC Tramp protocol, it allows you to adjust parameters through OSD.

With a 7–36V wide-range input, the VTX is equipped with thermal protection to prevent damage from overheating. It supports 48 channels and a 20x20mm (M2) mounting pattern.

Features

  1. Four adjustable power levels, up to 5W, ideal for long-range flights
  2. High-strength CNC aluminum alloy housing for enhanced heat dissipation
  3. Built-in micro turbine fan for active cooling
  4. Wide voltage input, supports 7–36V
  5. One function button + three indicator LEDs for quick and easy operation
  6. IRC Tramp protocol, supports OSD configuration
  7. Thermal protection to prevent damage from excessive heat
  8. Supports 48 channels
  9. Supports direct frequency input from ground stations
  10. Supports 20x20mm (M2) mounting holes

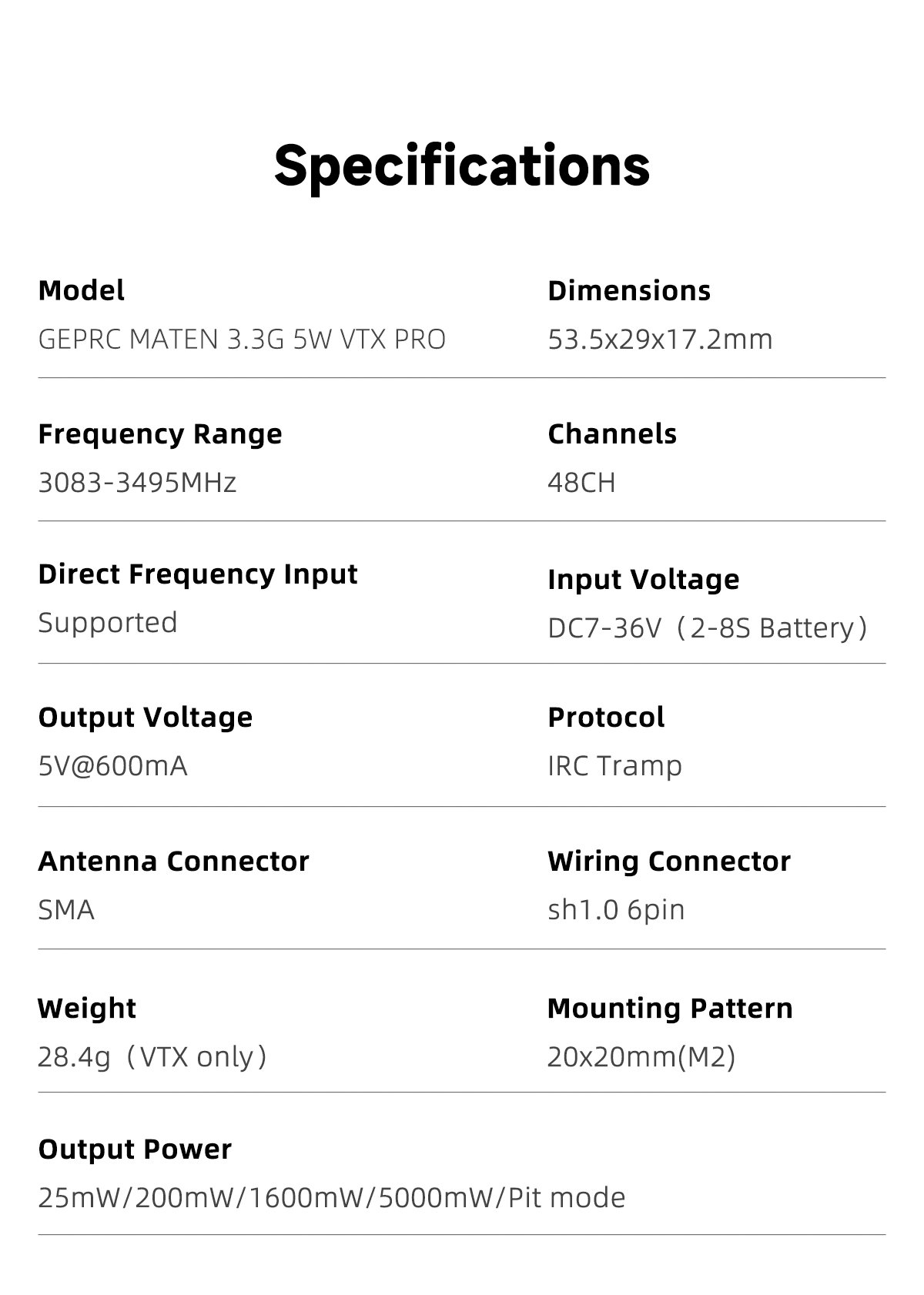

Specifications

  • Model: GEPRC MATEN 3.3G 5W VTX PRO
  • Dimension: 53x30x16.7mm
  • Mounting Pattern: 20x20mm(M2)
  • Output Power: 25mW/200mW/1600mW/5000mW/Pit mode
  • Frequency Range: 3083-3495MHz
  • Channels: 48CH
  • Direct Frequency Input: Supported
  • Input Voltage: DC7-36V（2-8S Battery）
  • Output Voltage: 5V@600mA
  • Protocol: IRC Tramp
  • Antenna Connector: SMA
  • Wiring Connector: sh1.0 6pin
  • Weight: 28.4g (VTX only)

Frequency Bands

A:3083，3114，3145，3176，3207，3238，3269，3300
B:3215，3235，3255，3275，3295，3315，3335，3355
C:3170，3190，3210，3230，3250，3270，3290，3310
D:3320，3345，3370，3395，3420，3445，3470，3495
E:3310，3330，3355，3380，3405，3430，3455，3480
F:3330，3350，3370，3390，3410，3430，3450，3470

Noted

  1. Install the antenna before powering on.
  2. The VTX will activate thermal protection and automatically reduce output power if overheated. Ensure good airflow and cooling during use. If airflow is limited, consider adding an additional cooling fan.
  3. The 5V output is for the camera only. Do NOT connect the main power input to the 5V output port, or the VTX will be damaged.

Includes

1 x MATEN 3.3G 5W VTX PRO VTX

1 x VTX cable(SH1.0 6pin 150mm)

1 x User manual
