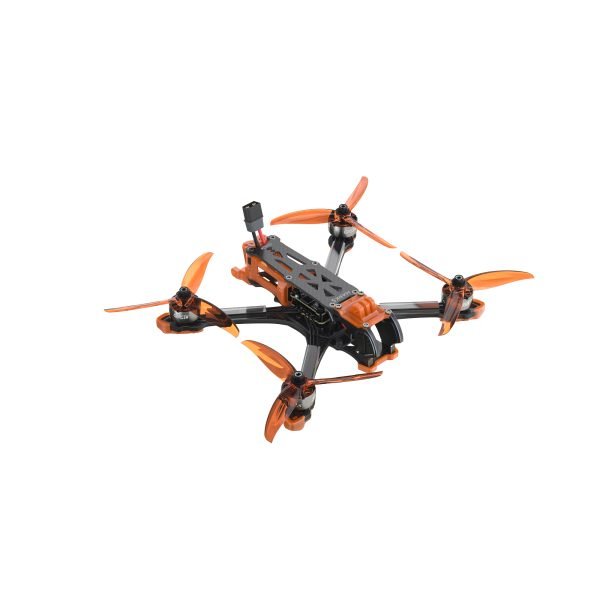

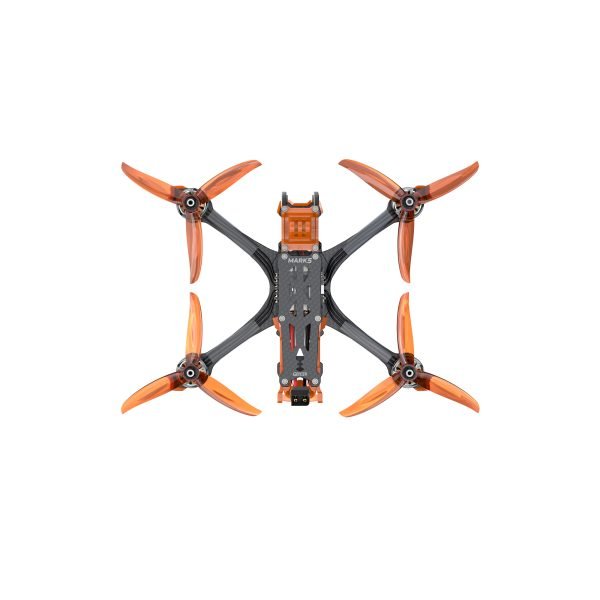

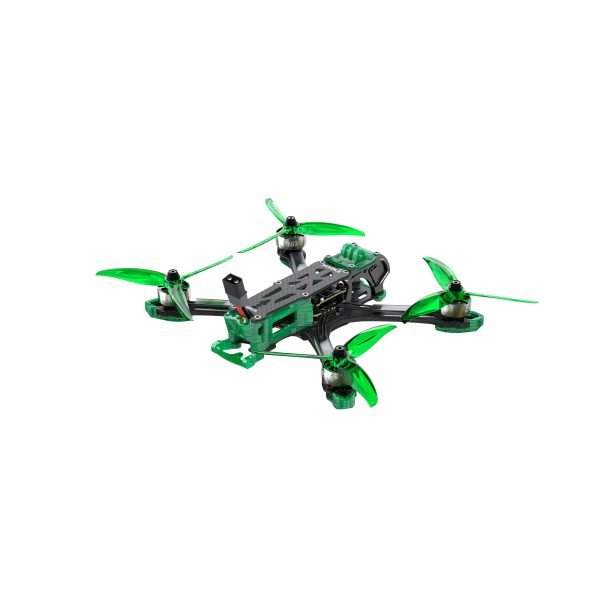

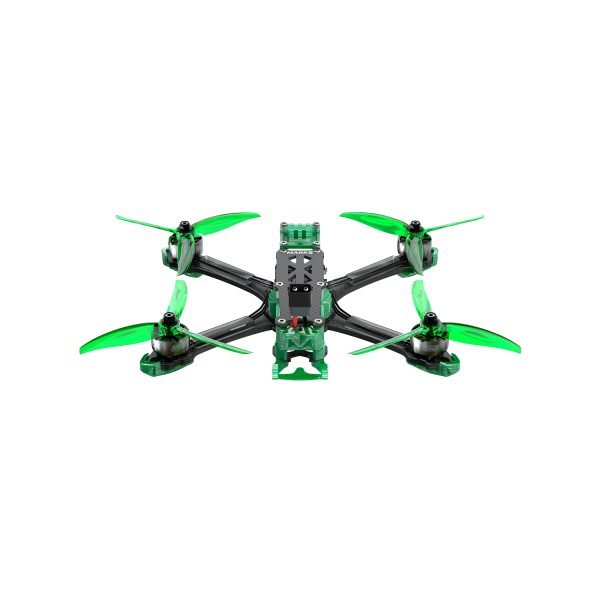

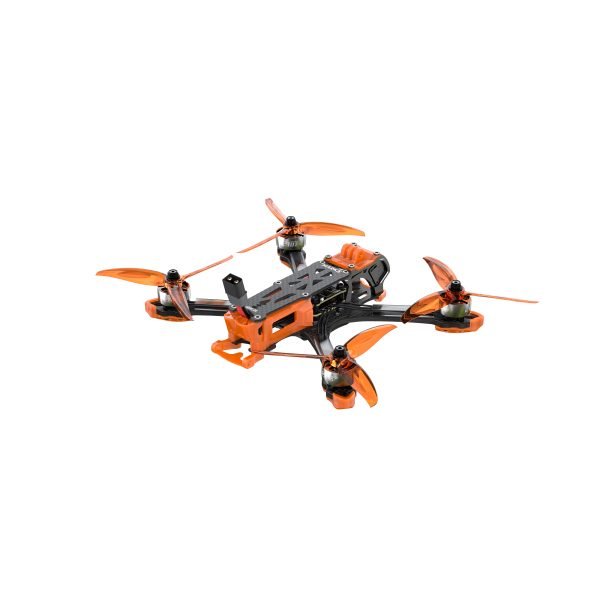

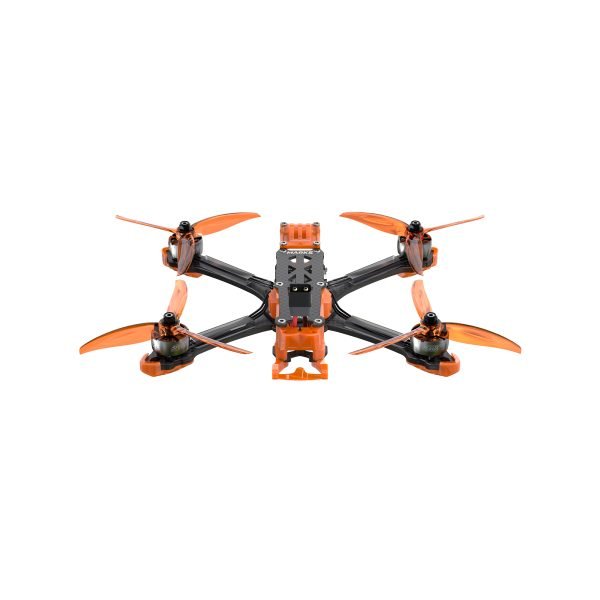

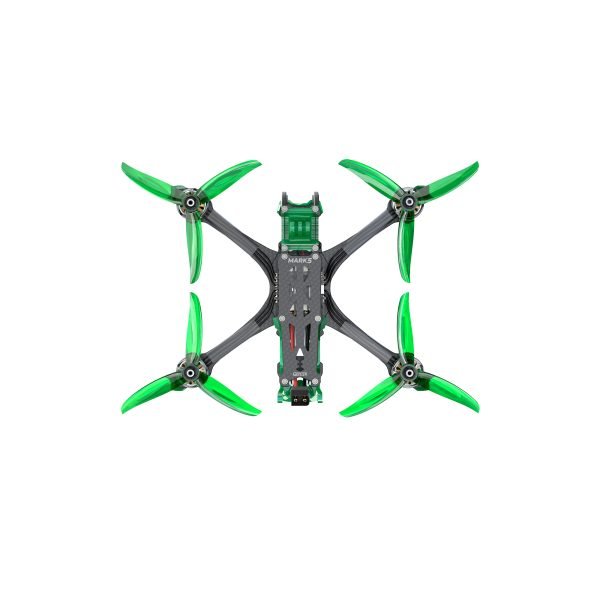

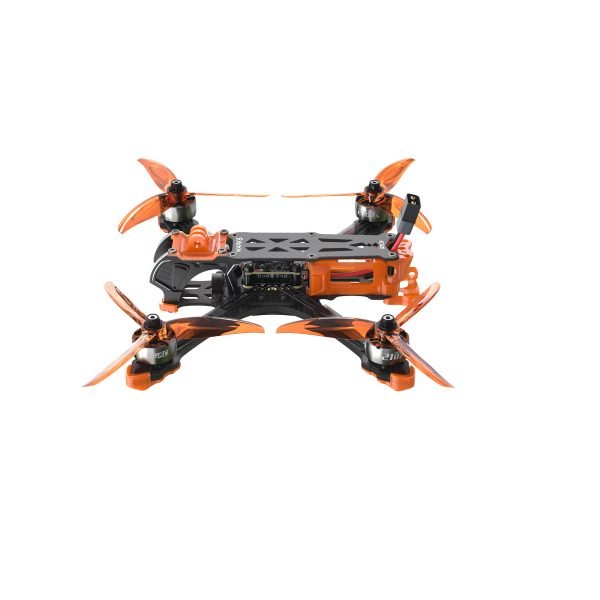

GEPRC MARK5 O4 Pro Wide X WTFPV Drone

Price range: $219.99 through $254.99

SKU: N/A Categories: , , , Tags: , , , , ,

Summary

The GEPRC MARK5 O4 series is expertly crafted for the DJI O4 Air Unit Pro VTX. Featuring a redesigned camera aluminum mount and custom shock-absorbing silicone, it significantly boosts compatibility and reduces vibrations.These upgrades ensure stable, smooth footage while effectively minimizing the impact of vibrations on the gyroscope during flight, resulting in a more stable and fluid flying experience.

Feature

1. Optimized for DJI O4 Air Unit Pro, offering enhanced compatibility.

2. DC and wide X frames, fit for a variety of flying situations.

3. Two TPU camera mounts, compatible with all action cameras.

4. Quick-release arms with just two screws for easy swapping.

5. 3K carbon fiber frame that is lighter, stronger, and more durable.

6. Separate capacitor and buzzer compartment for stable, jitter-free operation.

7. Vibration-dampening frame for stable electronics performance.

Specfication

  • Model: MARK5 O4 Pro Wide X WTFPV FPV
  • Wheelbase: 225mm
  • Weight: 380.6g ± 5g
  • VTX: None
  • Camera: None
  • Antenna: None
  • Motor: SPEEDX2 2107.5 1960KV
  • Prop: Gemfan 5136
  • FC: GEP-F722-BT-HD V3
  • MCU: STM32F722
  • IMU: ICM42688-P(SPI)
  • OSD: BetaFlight OSD w / AT7456E chip
  • ESC: GEP-BL32 50A 96K 4IN1 ESC
  • Power Connector: XT60
  • Receiver: PNP / ELRS 2.4G / TBS NanoRX
  • Recommended Battery: LiPo 6S 1050mAh-1550mAh
  • Printouts Color: emerald green/coral orange

Include

1 x GEPRC MARK5 O4 Pro WTFPV FPV
1 x Gemfan 5136（2CW 2CCW）
1 x 15*250mm Straps
2 x 20*250mm Straps
2 x Battery anti-slip pads
1 x 3D printouts pack
1 x Spare Screw Pack
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x L-shaped screwdriver 3mm
1 x M8 wrench

Spare Screws Include:

1 x M5 flanged nylon nut
2 x M2 stainless rivet nut
1 x M5*25 Stainless round-head hex screw

4 x M3*10 button-head hex socket screw

4 x M3*8 button-head hex socket screw
2 x m3*8 countersunk hex socket screw
2 x m3*5 countersunk hex socket screw



COLOR

Coral Orange, Emerald Green

Receiver Options

6S PNP, 6S ELRS 2.4G, 6S TBS Nano RX
