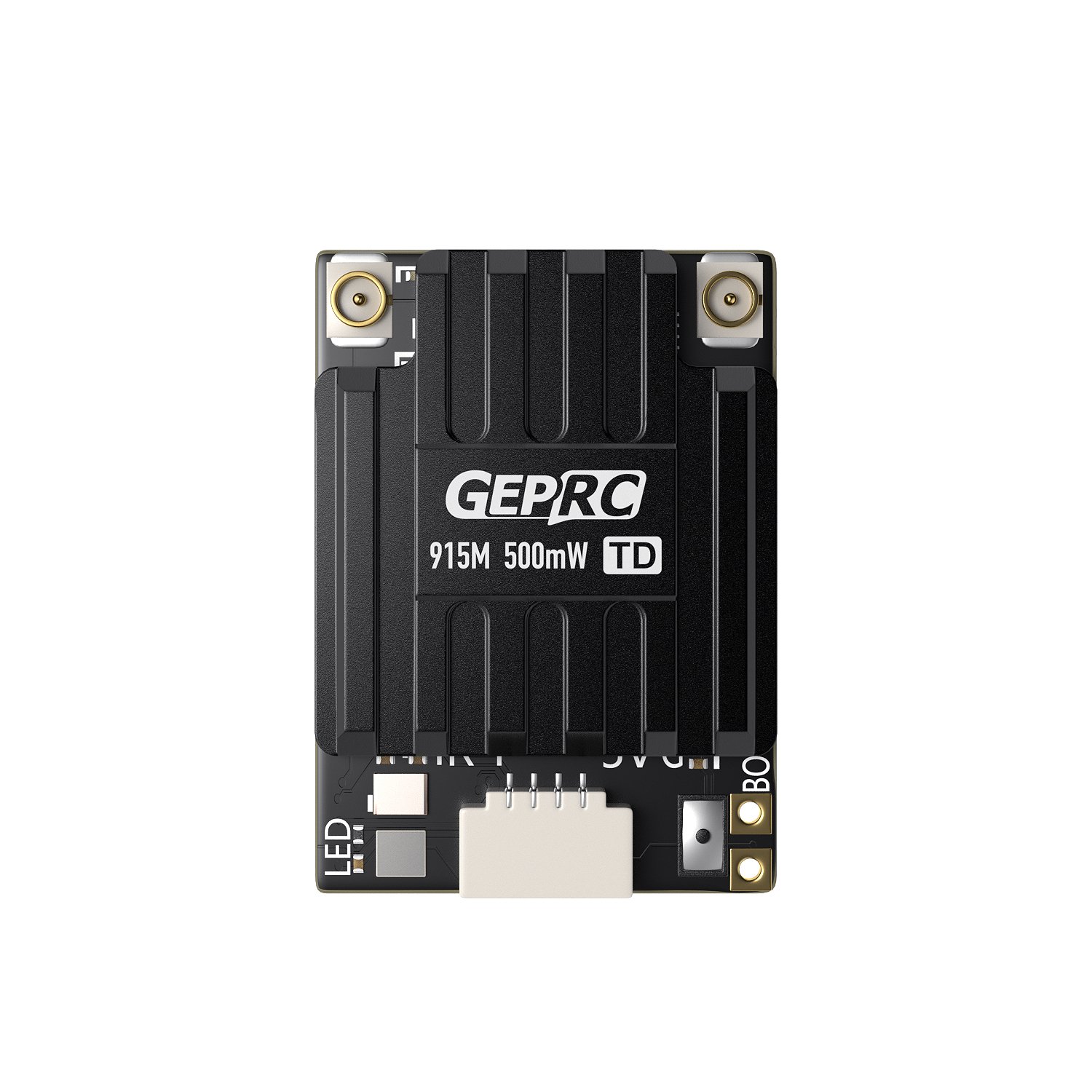

GEPRC ELRS DUAL 915M PA500 Diversity Receiver

Summary

Boost your signal reliability with GEPRC’s next-gen dual-antenna True Diversity system, powered by the open-source ExpressLRS project. Engineered for long-range operation, ultra-low latency, and a 200Hz refresh rate, the ELRS DUAL 915M PA500 delivers premium performance at an unbeatable price.
Its dual antennas are strategically positioned for broader coverage and a more stable connection compared to single-antenna systems. The TCXO crystal oscillator ensures stable performance, even in extreme temperatures, by preventing frequency shifts.
Packed with power, the integrated high-power PA chip delivers up to 500mW of telemetry. The CNC-machined aluminum alloy shell optimizes cooling for smooth operation, while firmware upgrades are effortless with the built-in WiFi antenna. Plus, installation is quick and easy with the SH1.0 connector.

Feature

1. Compact size of 18x25x5.5mm
2.  Weighs only 3.2g
3.  WIFI firmware upgrade
4.  ELRS open-source project, long-range remote control
5.  Maximum refresh rate of 200Hz
6.  Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures
7.  Features a built-in high-power PA chip, providing a maximum Telemetry power of 500mW
8.  Equipped with an sh1.0 connector for easy installation
9.  Two independent RF receiving links, True Diversity Receiver
10.  Adopts an aluminum alloy CNC shell to optimize heat dissipation

 Includes

1 x ELRS Diversity Receiver
2 x Antennas
1 x Heat shrink tube
1 x 4pin silicone cable
1 x User manual
