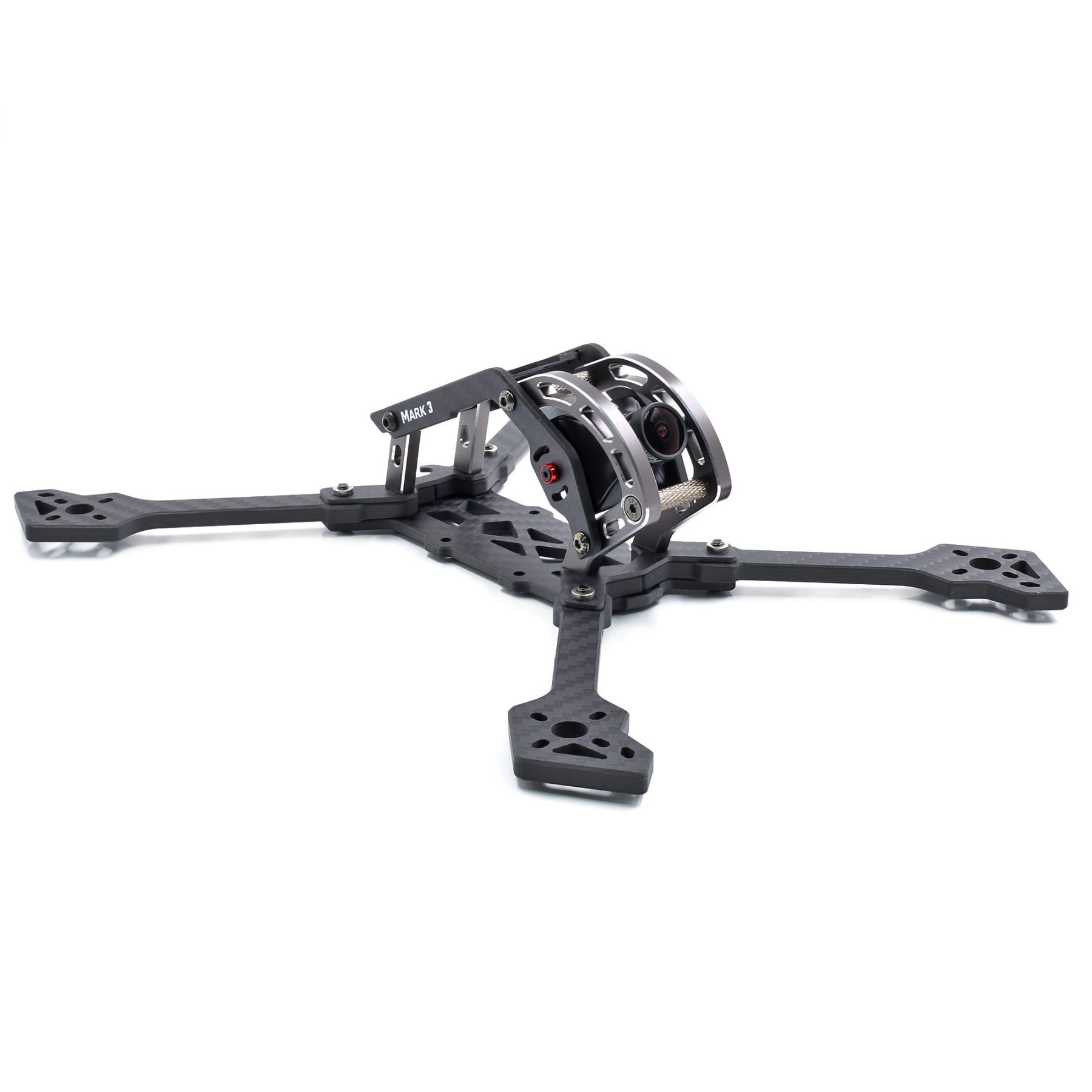

GEP-Mark3 HB56 Frame

Summary:

Mark3-hb56 is a hybrid type replaceable arms design.

Mark3 is a comprehensive frame, which has three types of different arm structures, namely, whole unibody design true X-type,replaceable arms h-type and the latest replaceable arms HB (front stretch X and back true X).The new arm structure is a hybrid.The model, which can be controlled more accurately when turning rapidly, will have more advantages.
The structural design of the fuselage USES a combination of carbon fiber plates and aluminum parts,which can act like a car hood flip (quick maintenance and replacement of equipment).The lens protection adopts 7075 aviation grade aluminum as the protection,installation size is 29*29. Position is more compact and the protection is more comprehensive.Movable 5.8g antenna is fixed and installed, which can be adjusted to the right Angle at will.
The appearance design of the model, high precision carbon fiber CNC combined with 7075 grade aluminum, to build a durable structure.

Specifications：

• Brand name：GEPRC
• Item name：Mark 3-HB56
• Frame type：Hybrid type
• Propeller : 5inch/6inch
• Motor to motor：239mm
• Size：137*183mm
• Weight：107g
• Arms plate : 5mm
• Bottom plate：3mm
• Side plate : 3mm
• Top plate : 1.5mm
• Reinforce plate : 1.5mm

Recommended：

• Flight Controller：RF/Kiss/F4/F3
• Motor： 2205/2206/2207/2305/2306
• ESC：20A-50A
• Propeller：5inch~6inch
• Lipo: 3S 1300mAh ~ 6S 1500mAh

Features:

• Hybrid type Frame
• Beautiful appearance design，durable in crashing
• Hood engine room design，Quick maintenance and replacement of equipment
• Quick swapping of arms
• Ample space for electronic installation
• With 25 ° Camera mount
• Center Stack Mount 30.5×30.5mm，It is also equipped with a 20x20mm flight controller plate
• High quality 3K twill carbon fiber plate, high precision CNC processing,7075 aluminum alloy
• YFS screw, 12.9 grade strength, non-slip teeth, anti-rus

Includes:

• 2 x 4mm Front arms plate (5inch)
• 2 x 4mm Rear arms plate (6inch)
• 1 x 3mm bottom plate
• 2 x 3mm Side plate
• 1 x 1.5mm top plate
• 1 x 1.5mm reinforce plate
• 1 x 1mm 20*20mm flight controller plate
• 1 x 1mm receiver plate
• 1 x 1.5mm Lipo protection plate
• 1 x 7075 Aluminum Camera Protector
• 1 x Camera No-Slip Silicone Pad
• 1 x Lipo foam pad

Hardware：

• 3 x M3*18.5mm Aluminum alloy standoff Titanium color
• 4 x M3*14 YFS Button Screw
• 4 x M3*12 YFS Button Screw
• 4 x M3*10 YFS Button Screw
• 2 x M3*6 YFS Button Screw
• 4 x M3*5 YFS Button Screw
• 2 x M3*10 Flat Screw
• 3 x M2*5 Cap Screw
• 4 x M3 insert nut
• 4 x FC Rubber damping pad
• 3 x M2 Gasket red
• 4 x M3 Nylon nut
• 6 x M3*5+6 Nylon standoff
• 2 x 20*220 GEPRC Lipo strap
• 1 x 2.4g Antenna fixed tube
