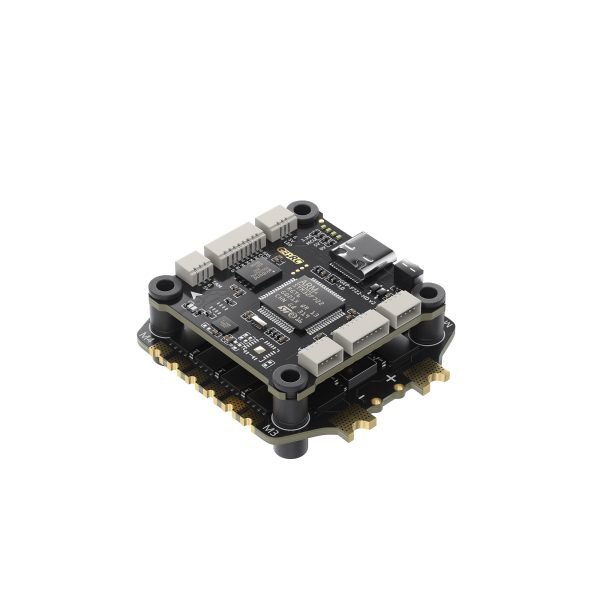

GEPRC TAKER F722 BLS 65A V2 STACK

Features

1. Uses the mainstream STM32F722 chip
2.  Equipped with the latest 42688-P gyroscope
3. 16M onboard black box storage
4. Integrated LC filter
5.  Upgraded Type-C USB interface
6.  Directly plugs into the DJI Air Unit
7. Paired with the TAKER H65_8S_BLS 65A 4IN1 ESC, providing a smooth flying experience
8.  Simple and efficient installation method with shock absorbers for stable gyroscope performance
9.  Dual independent BECs: [email protected] and 5V@3A

Specifications

GEP-F722-HD v2 Flight Controller

• MCU: STM32F722
• IMU: ICM42688-P(SPI)
• Air Unit Connection: Direct plug-in to DJI Air Unit
• Black Box:16M onboard
• USB Interface: Type-C
• Barometer: supported
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC: 5V@3A,[email protected] dual BEC
• Firmware Target: GEPRCF722
• Dimension: 36.85×36.85mm, mounting hole size 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
• Input Voltage: 3-6S LiPo
• UART: 5
• Power Filter: Integrated LC filter
• Weight: 8.1g

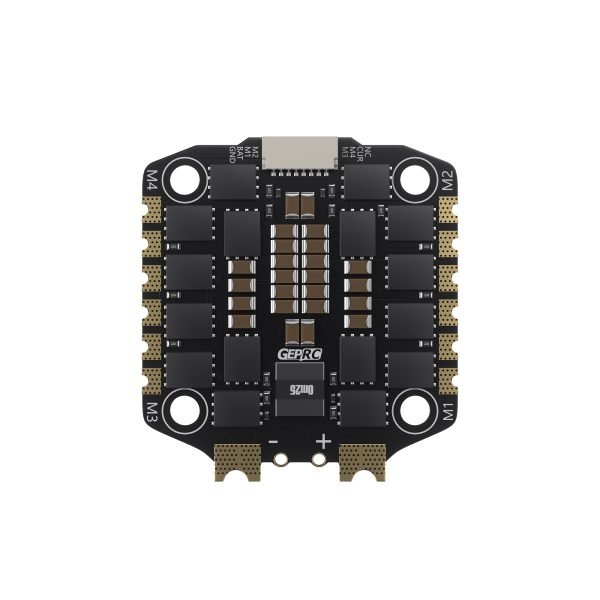

TAKER H65_8S_BLS 65A 4IN1 ESC

• Input Voltage: 3-8S Lipo
• Ammeter: Supported
• Continuous Current：65A
• Burst Current：70A（5 seconds）
• Support Protocol: Dshot 150/300/600
• Dimension：42×45.7mm,mounting hole size30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
• Weight: 14.9g
• Firmware Target: B_X_30

Includes

1 x FC board

1 x ESC board

1 x Capacitor

1 x DJI Air Unit adapter cable

1 x Flight controller adapter cable

1 x XT60 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

8 x Silicone anti-shake pads

2 x sh1.0 4pin silicone cable

1 x Camera connection cable
