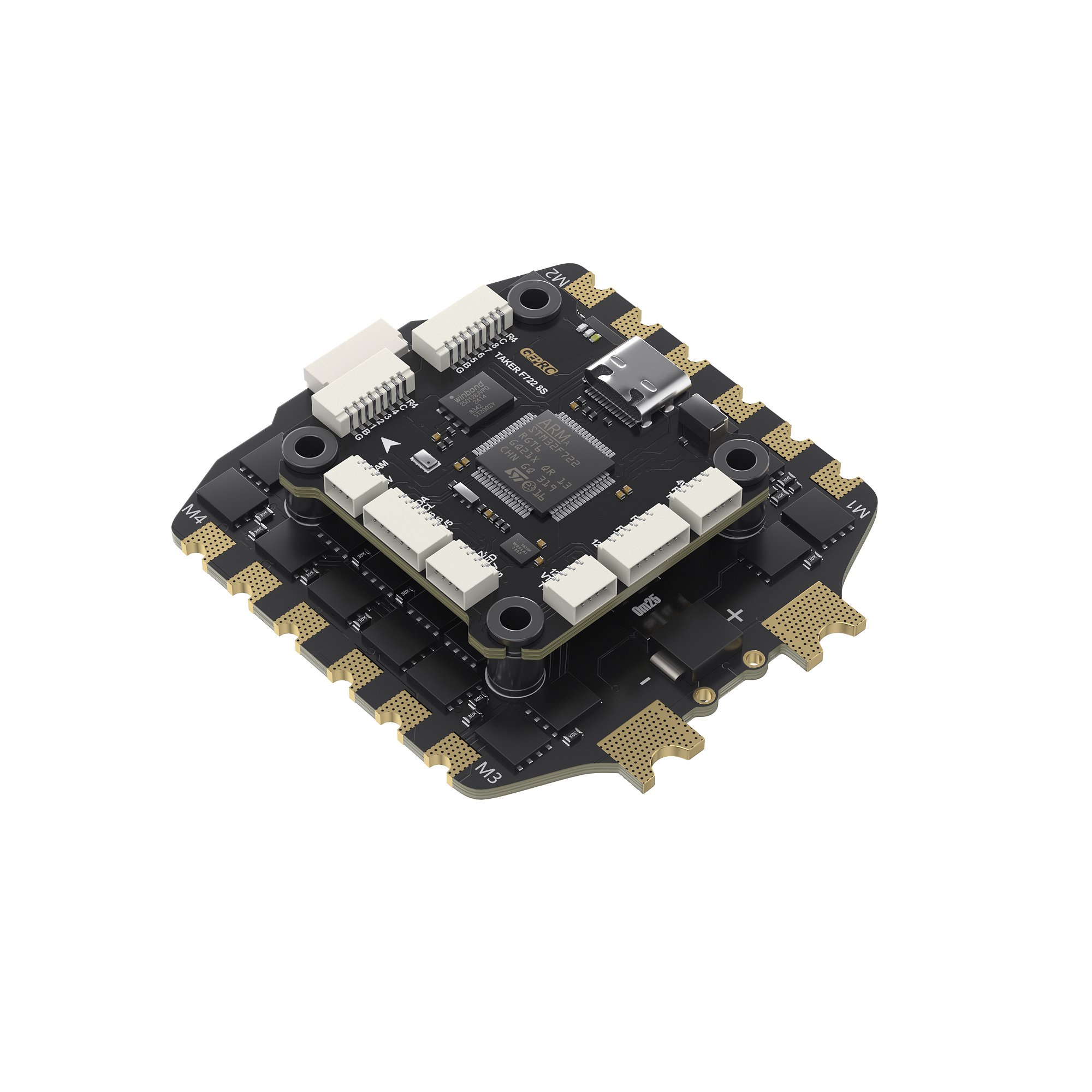

TAKER F722 BLS 100A 8S STACK

Changelog

Oct 10, 2025:

The flight controller firmware has been changed to: GEPRC_TAKER_F722_8S. If you still use the TAKERF722SE firmware for flash, you need to add the definition of “USE_BARO USE_BARO_DPS310” before flash the firmware, and after burning the firmware, enter the following command in the CLI:

set pinio_box = 40,41,255,255
save

Firmware

betaflight_4.5.2_STM32F7X2_GEPRC_TAKER_F722_8S(251009)

Feature

1. Uses the mainstream STM32F722 chip

2. Equipped with the latest 42688-P gyroscope

3. 16M onboard black box storage

4. Integrated LC filter

5. Upgraded Type-C USB interface

6. Directly plugs into the DJI Air Unit

7. Paired with the TAKER H100_8S_BLS 100A 4IN1 ESC, providing a smooth flying experience

8. Simple and efficient installation method with shock absorbers for stable gyroscope performance

9. Dual independent BECs: 12V@3A and 5V@3A

10. Supports 8S Lipo batteries

11. Support direct insertion of 8 motors

 Specifications

TAKER F722 8S Flight Controller

• MCU: STM32F722
• IMU: ICM42688-P(SPI)
• Air Unit Connection: Direct plugs into DJI Air Unit
• Black Box: 16M onboard
• USB Interface: Type-C
• Barometer: Supported
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC: 5V@3A,12V@3A dual BEC
• Firmware Target: GEPRC_TAKER_F722_8S
• Dimension: 38.5×38.5mm,
• Mounfing Hole Size: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
• Input Voltage: 3-8S LiPo
• UART: 6 UARTs
• Power Filter: Integrated LC filter
• Weight: 8.1g Includes

TAKER H100_8S_BLS 100A 4IN1 ESC

• Input Voltage: 3-8S Lipo
• Ammeter: Support
• Calibration value: 200
• Continue Current: 100A
• Burst Current: 105A (5 seconds)
• Support Protocol: Dshot 150/300/600
• Size: 56.3*61.1 mm; hole: 30.5×30.5 mm; φ4 mm hole becomes φ3mm after using the silicone shock-absorbing ring.
• Weight: 28.8g
• Target: B_X_30

Includes

1 x TAKER F722 8S Flight Controller

1 x TAKER H100_8S_BLS 100A 4IN1 ESC

1 x Electrolytic capacitor(50V 4700uF)

1 x DJI connection cable(SH1.0 6pin 100mm)

2 x FC adapter cable(SH1.0 8pin 30mm)

1 x Receiver silicone cable(SH1.0 4pin 150mm)

1 x Camera connection cable(SH1.0-SH1.25 3pin 135mm)

1 x VTX connection cable(SH1.0 4pin-6pin 100mm)

1 x XT90 battery plug

1 x Red and black power cable(10AWG 240mm)

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts(M3)

12 x Silicone anti-shake pads(M3)
