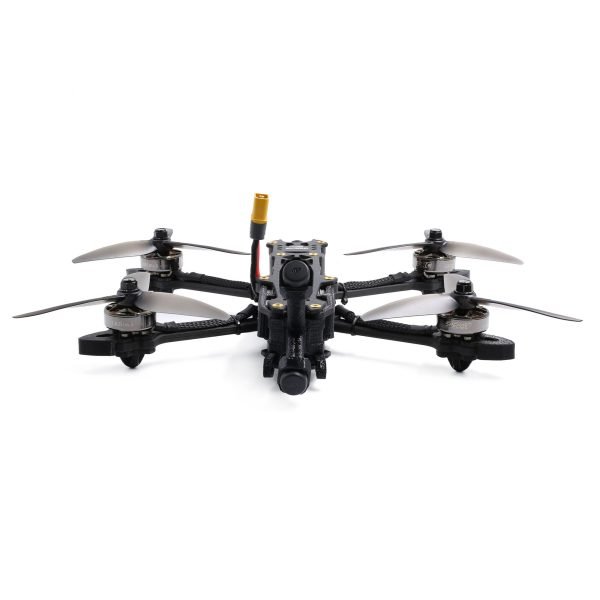

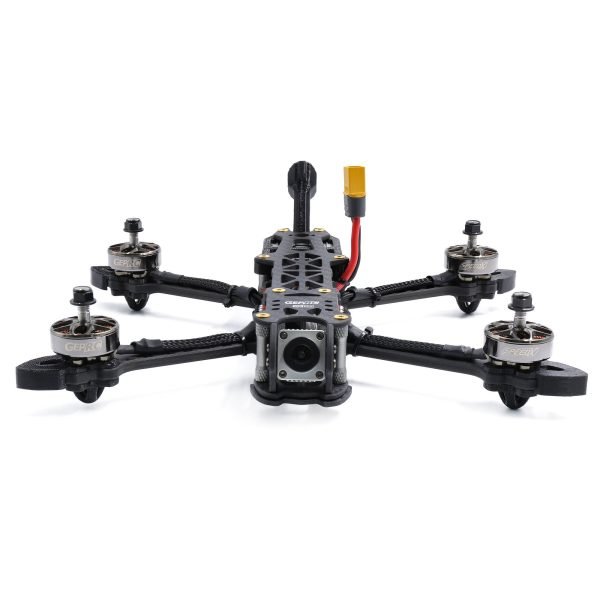

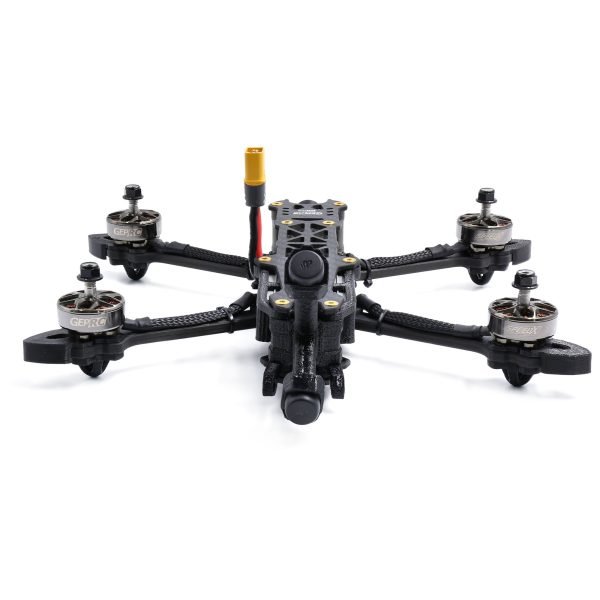

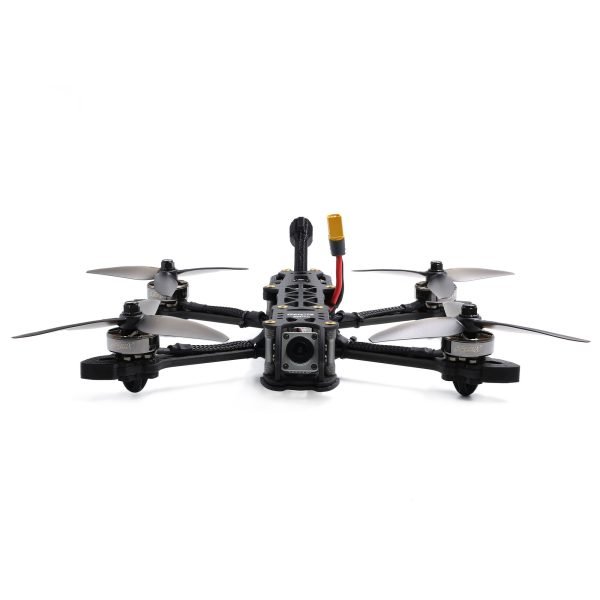

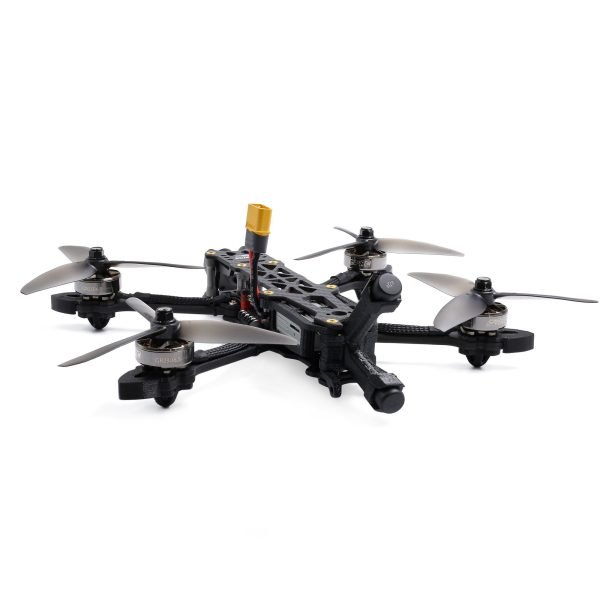

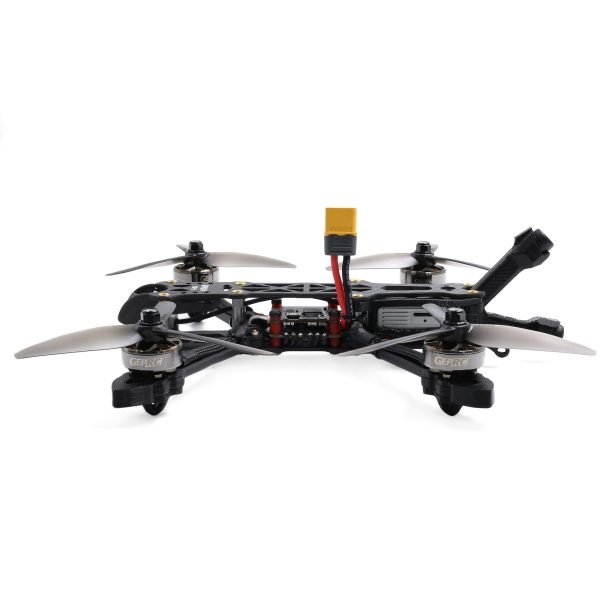

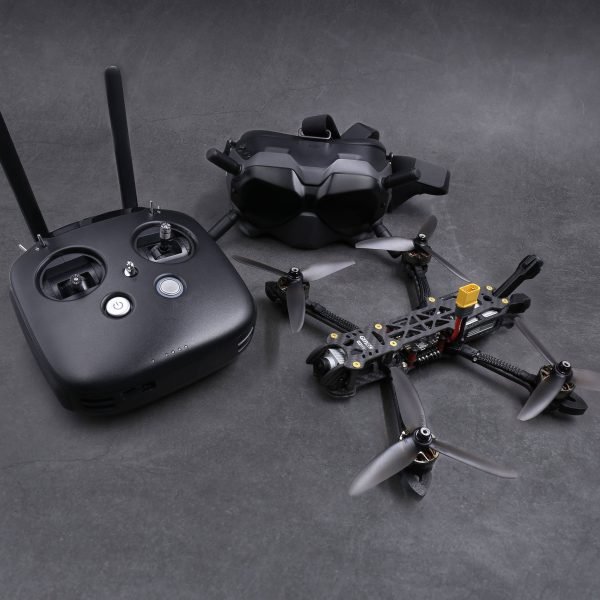

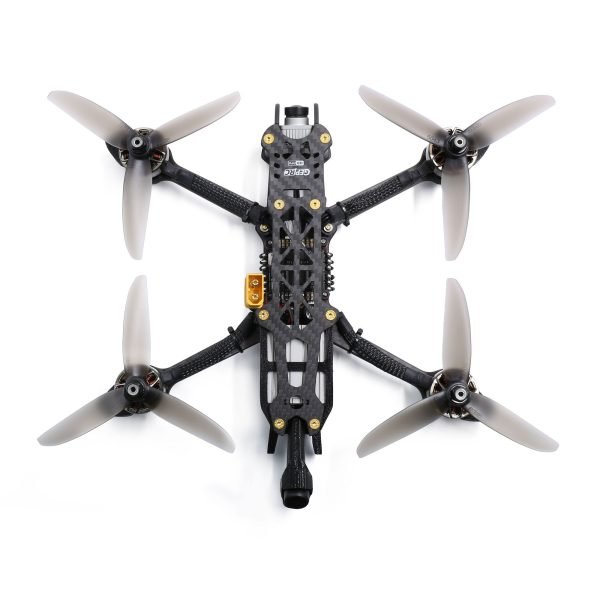

MARK4 HD5 DJI FPV HD

Specifications:

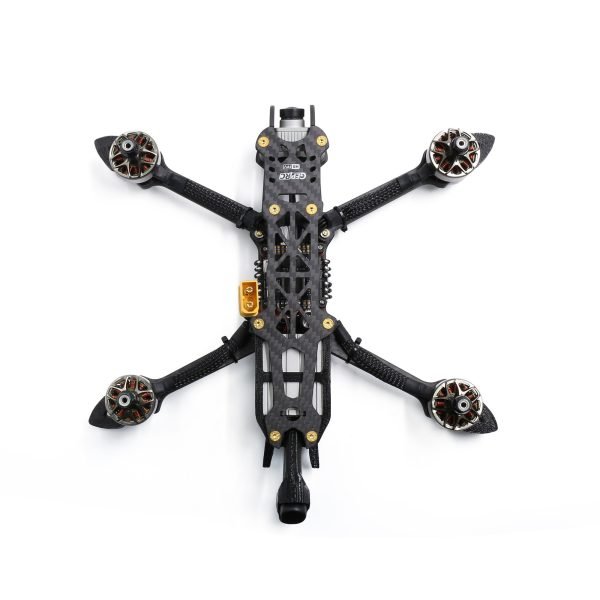

Frame:MARK4 HD5 Frame kits

• Full 3K Carbon Fiber
• Motor to motor：224mm
• Size：138*176mm
• Mounting Holes: 30.5*30.5mm/20*20mm
• Arms plate : 5mm
• Side plate : 2.5mm
• Top plate : 2.5mm
• Bottom plate : 2.5mm
• Protect plate : 2mm

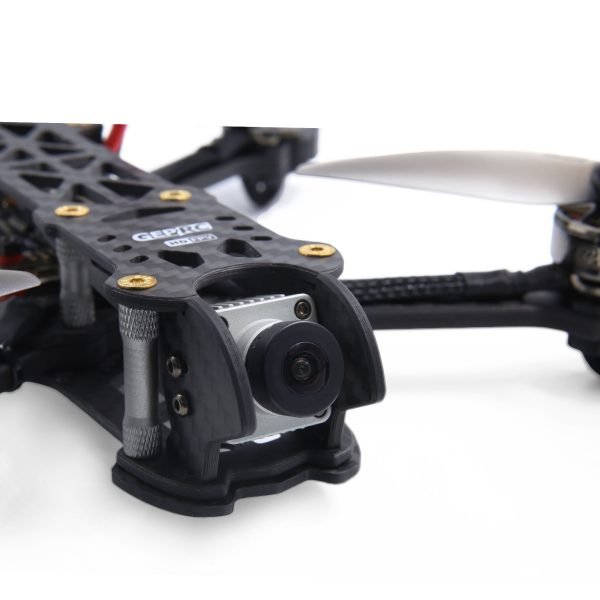

FPV SYSTEM : DJI FPV Air Unit

• Operating Frequency: 5.725-5.850 GHz
• Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm
• Min. Latency (end-to-end)
• Low Latency Mode (720p/120fps): <28 ms
• High-Quality Mode (720p/60fps): <40 ms
• Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
• Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
• I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
• Operating Temperature Range: 32° to 104°F (0° to 40°C)
• Input Power: 7.4-17.6 V, about 4-9 W
• Sensor: 1/3.2” CMOS; Effective Pixels: 4 M
• Lens: 2.1 mm, f/2.1
• Shutter: Rolling shutter
• ISO: 100-25600
• FOV: 150°(D); 122°(H); 93°(V)
• Dimension: 22.1 × 21.1 × 20.1 mm

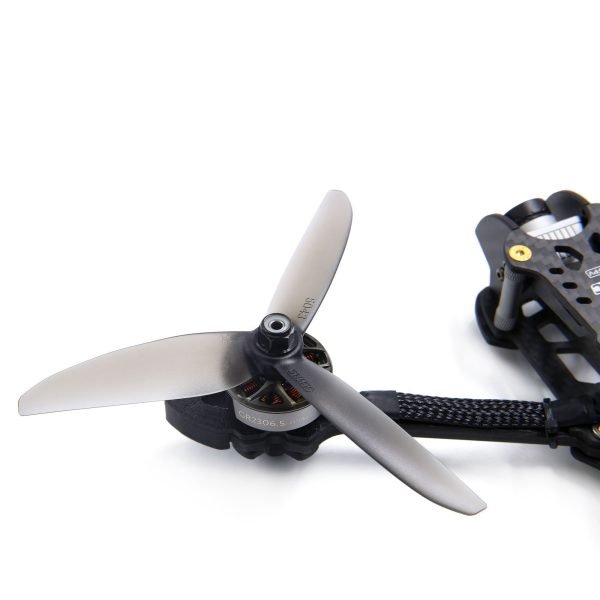

• Propeller: 5040*3 Or G5-4.3*3

Power System:

4S Battery：

• Motors: GR2306.5 2450KV
• Battery：4S 1300~1550mAh

6S Battery：

• Motors: GR2306.5 1850KV
• Battery：6S 1050~1300mAh

Electronic System(SPAN-F7-BT-HD):

F722 DUAL ICM20689 Flight Controller:

• MCU: STM32F722RET6
• IMU: 2x ICM20689(SPI)
• Build-In: BlueTooth wireless adapter (SpeedyBee APP)
• BlackBox: 32Mb onboard Flash
• OSD: BetaFlight OSD w/ AT7456E chip
• Baro:BMP280
• BEC Output: [email protected] / [email protected]
• Integrated LC Filter
• Firmware target: EXF722DUAL
• Size: 36x36mm board, φ4mm with Grommets φ3mm
• Power input: 3-6S LiPo
• 5x UART
• 8x Motor outputs

BLheli_32 50A ESC 4IN1:

• MCU: STM32FO51K86(32bit 48mHz)
• Continuous Current: 50A
• Peak Current: 55A (5S)
• Current sensor: YES
• Telemetry：Supported
• Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
• Firmware Version:GEPRC-BL32-4IN1
• Input Voltage: 3-6S Lipo

BLHeliSuite download:
http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file

SpeedyBee App Download

Android:
https://play.google.com/store/apps/details?id=com.runcam.android.runcambf

iPhone:
https://apps.apple.com/us/app/speedybee-app/id1150315028

Flight Controller Firmware（EXF722DUAL）:
https://github.com/betaflight/betaflight/releases
