Features
- Use mainstream STM32F405 chip
- Equipped with the latest 42688-P gyroscope
- 16M black box storage
- Integrated LC filter
- Upgrade type-C USB interface
- Directly plugged into the DJI Air Unit
- With TAKER H65_8S_BLS 65A 4IN1 ESC, the flying feel is silky
- Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
- [email protected] + 5V@3A dual independent BEC
Specifications

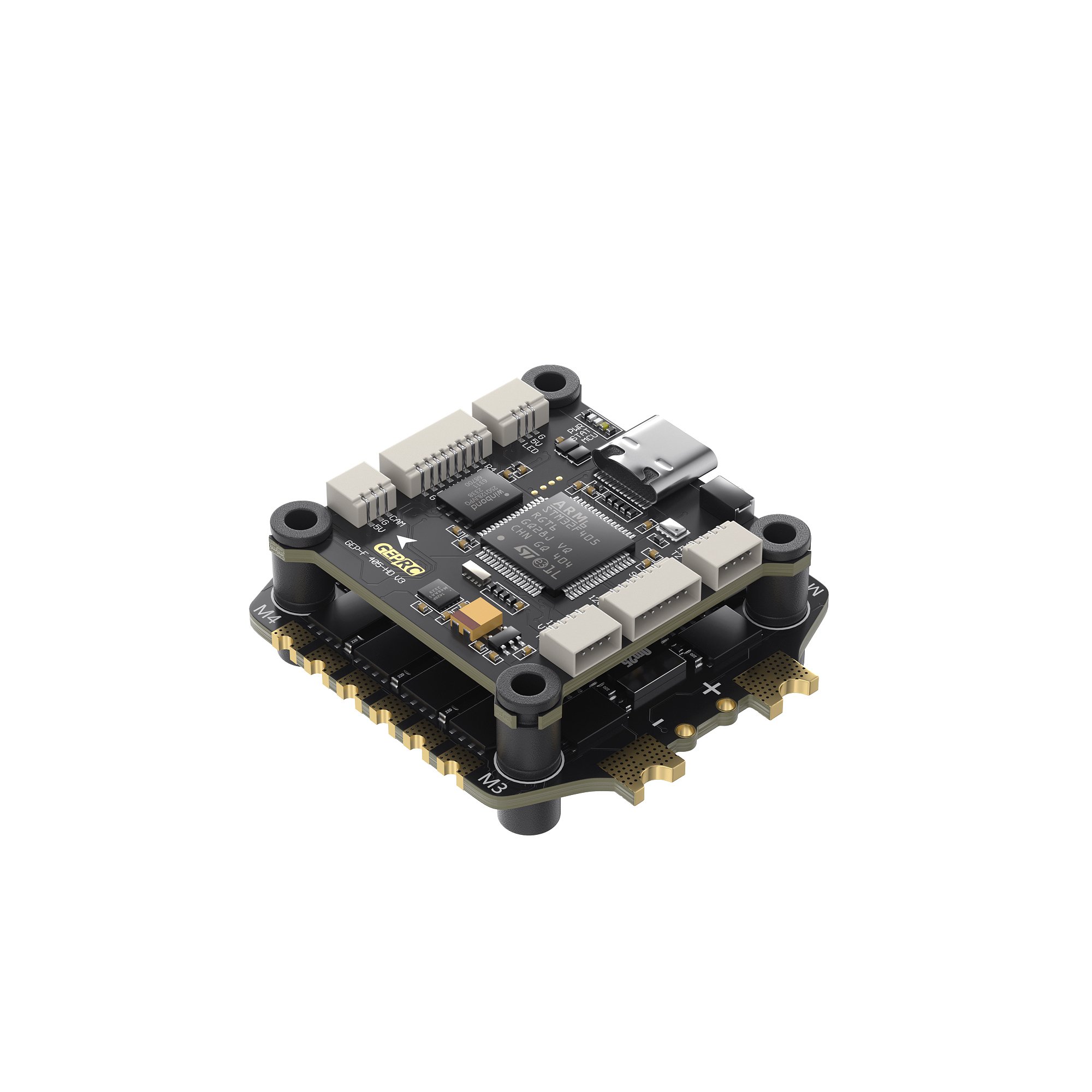

GEPRC TAKER F405 BLS 65A V2 STACK
FC model: GEP-F405-HD V3 Flight Controller
- MCU: STM32F405
- IMU: ICM42688-P(SPI)
- Air Unit Connection: Direct plugging into DJI Air Unit
- Black Box: 16M onboard
- Barometer: support
- Motor outputs: M1-M6
- USB Interface: Type-C
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC: 5V@3A, [email protected] dual BEC
- Firmware Target: GEPRCF405
- Size: 37.15×37.15mm
- Mounting: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
- Input Voltage: 3-6S LiPo
- UART: 6 UARTs
- Power Filter: Integrated LC filter
- Weight: 7.3g
ESC Model: TAKER H65_8S_BLS 65A 4IN1 ESC
- Input Voltage: 3-8S Lipo
- Ammeter: Support
- Continue Current: 65A
- Burst Current: 70A (5 second)
- Support Protocol: Dshot 150/300/600
- Size: 42×45.7mm, hole30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
- Weight: 14.9g
- Target: B_X_30
Includes
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*25 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pin silicone cable
1 x Camera connection cable
