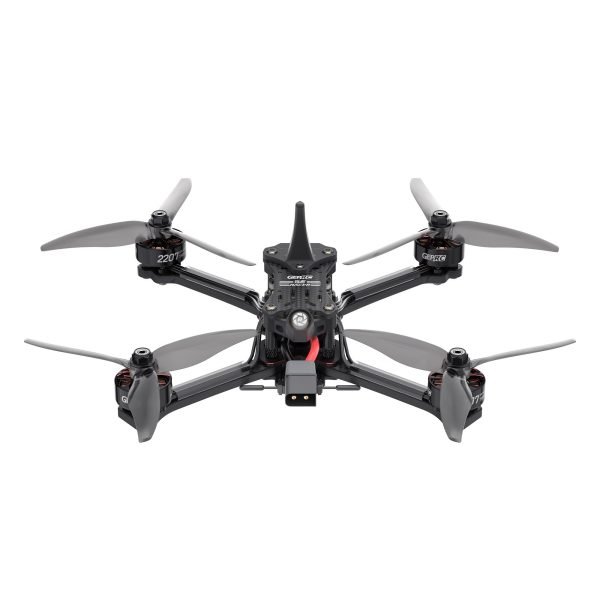

GEPRC Racer FPV Racing Drone

Summary

When the conventional FPV drone cannot satisfy the pursuit of speed in the FPV racing arena, you need a racing FPV specially designed for the competition. The GEPRC Racer was thus born.

The main structure of Racer is constructed with 7075-T6 aviation aluminum alloy splint combined with high-grade T700 carbon plate, the overall structure is light and stable. The flight system uses GEPRC’s new TAKER F722 E55A stack with two motor versions: GEPRC SPEEDX2 2207 2050KV and TMOTOR F60PROV 2020KV professional racing motor. The overall performance has strong explosive power.

The Racer has been carefully designed by the GEPRC team, and the flying feel and response speed have reached the best state.

Feature

1. GEPRC SPEEDX2 2207 2050KV/TMOTOR F60PROV 2020KV two professional racing motor versions are optional.
2. The flight performance responds quickly, and the hand feels light and fast.
3. Made of high hardness T700 carbon fiber board material.
4. Design the anti-turtle shark fin support.
5. The quick-release design of the machine arm is convenient for the maintenance of the fryer.
6. Use GEPRC’s new TAKER F722 E55A high-performance stack.
7. Choose MPU6000 gyro.

Specifications

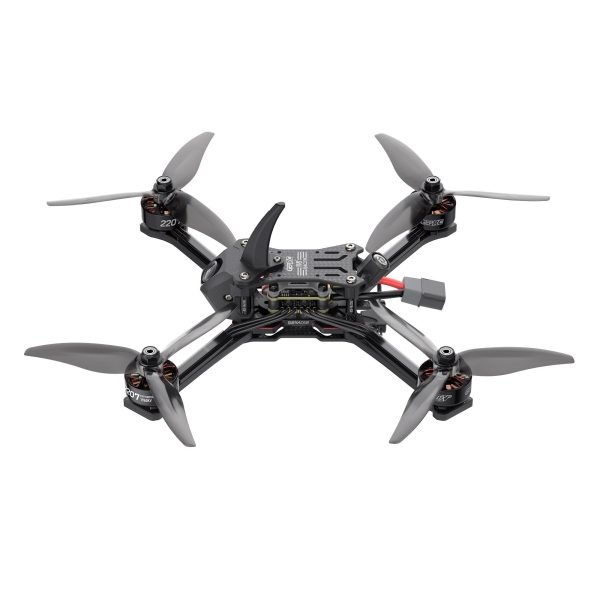

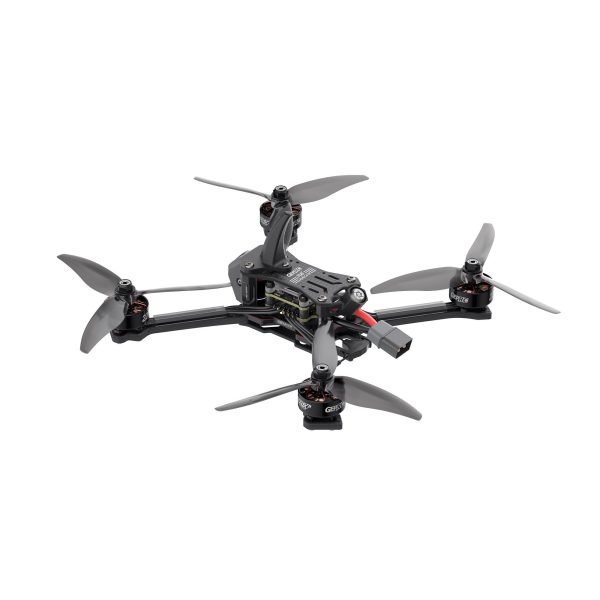

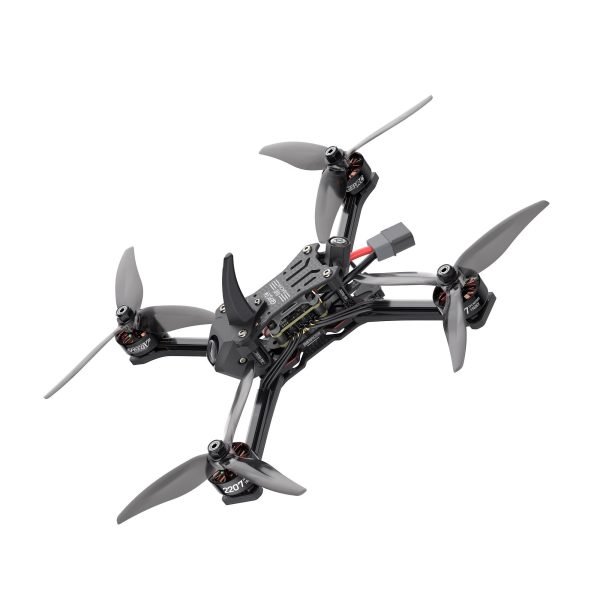

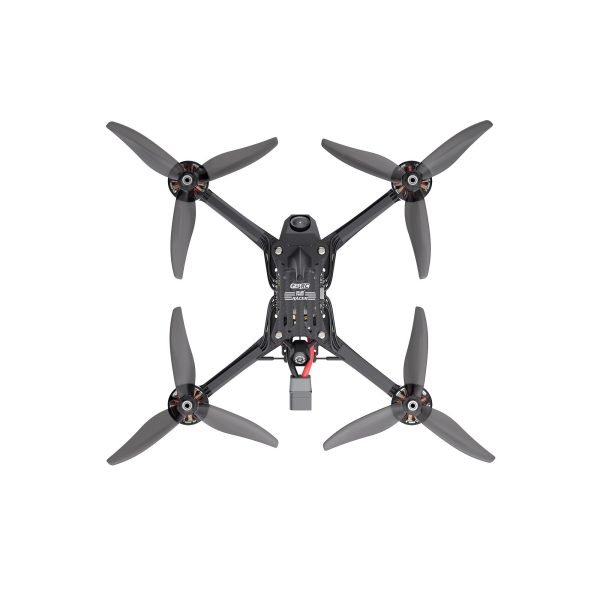

GEPRC SPEEDX2 2207 motor version

• Model: Racer FPV
• Frame: GEP-Racer Frame
• Wheelbase: 208mm
• Top plate: 2mm
• Bottom plate: 2mm
• Arm plate: 5mm
• Aluminum splint plate color: black with red
• FC: TAKER F722 SE
• ESC: TAKER E55A 32Bit 4IN1
• MCU: STM32F722RET6
• Gyro: MPU6000
• OSD: AT7456E
• VTX: GEPRC RAD Tiny 5.8G 400mW
• Camera: Runcam Nano4
• Antenna: Peano 5.8G RHCP UFL
• Motor: SPEEDX2 2207 2050KV
• Propeller: Gemfan 51466 x3
• Weight: 279g ± 5g
• Receiver: PNP/ TBS NanoRX / GEPRC ELRS 2.4G
• Recommended battery: Lipo 6S 1300-1500mah

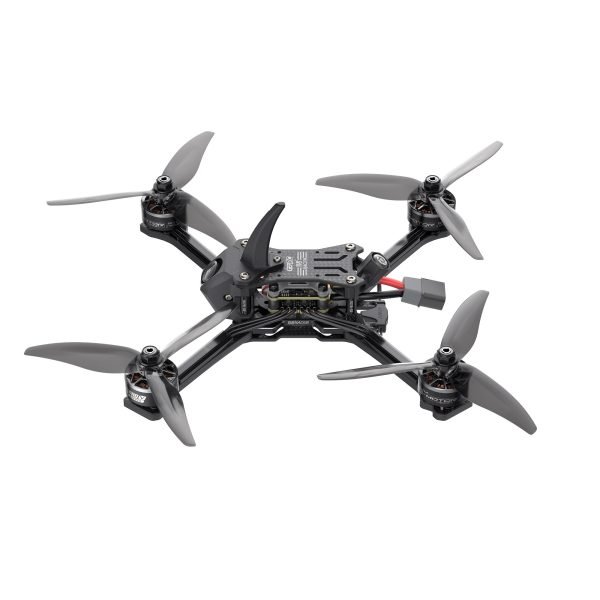

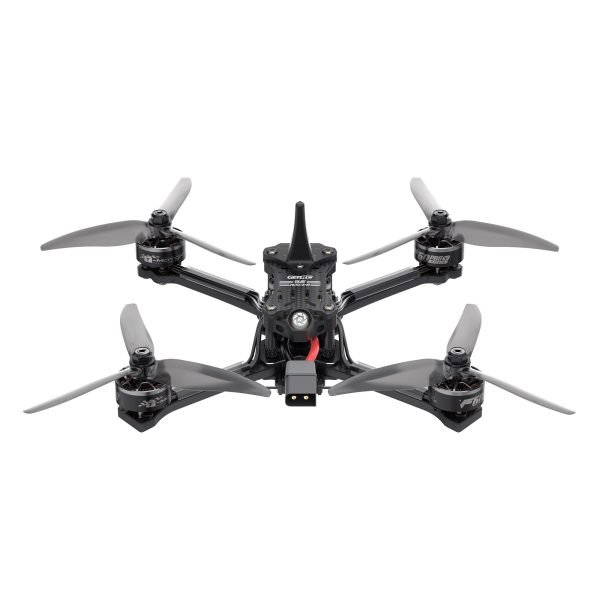

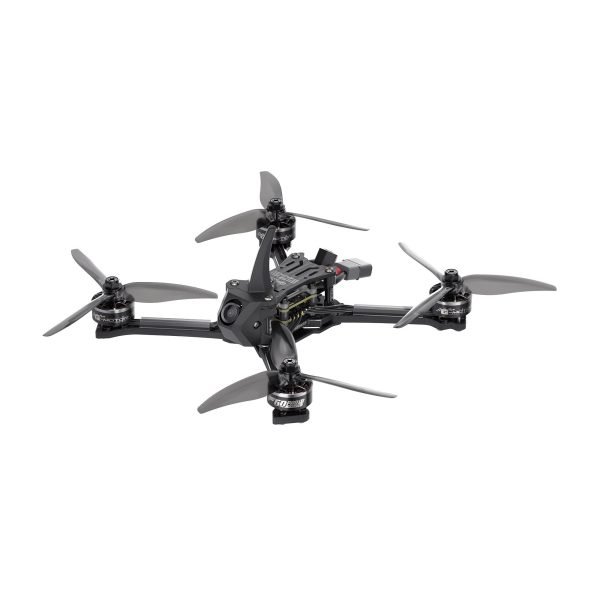

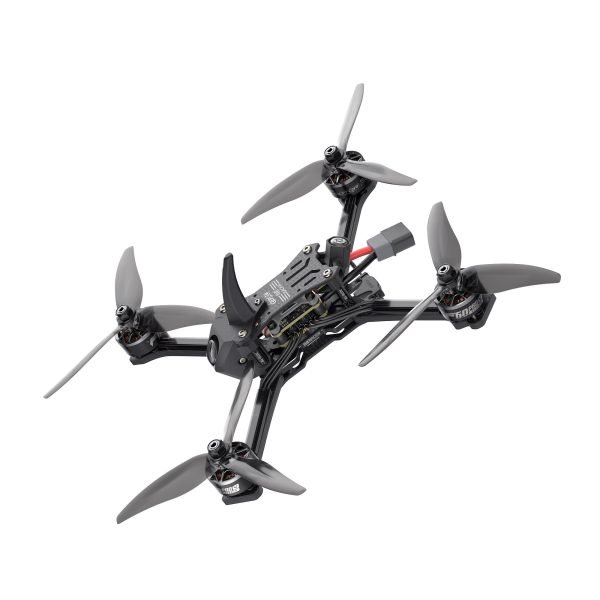

TMOTOR F60PROV motor version

• Model: Racer FPV
• Frame: GEP-Racer Frame
• Wheelbase: 208mm
• Top plate: 2mm
• Bottom plate: 2mm
• Arm plate: 5mm
• Aluminum splint plate color: Black with Titanium
• FC: TAKER F722 SE
• ESC: TAKER E55A 32Bit 4IN1
• MCU: STM32F722RET6
• Gyro: MPU6000
• OSD: AT7456E
• VTX: GEPRC RAD Tiny 5.8G 400mW
• Camera: Runcam Nano4
• Antenna: Peano 5.8G RHCP UFL
• Motor: F60PROV 2020KV
• Propeller: Gemfan 51466 x3
• Weight: 281g ± 5g
• Receiver: PNP/ TBS NanoRX / GEPRC ELRS 2.4G
• Recommended battery: Lipo 6S 1300-1500mah

Includes

1 x RACER FPV
2 x Gemfan 51466 propellers（pair）
2 x M20*250mm battery tie
2 x Battery anti-skid pads
1 x Spare screw bag
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x M8 wrench
