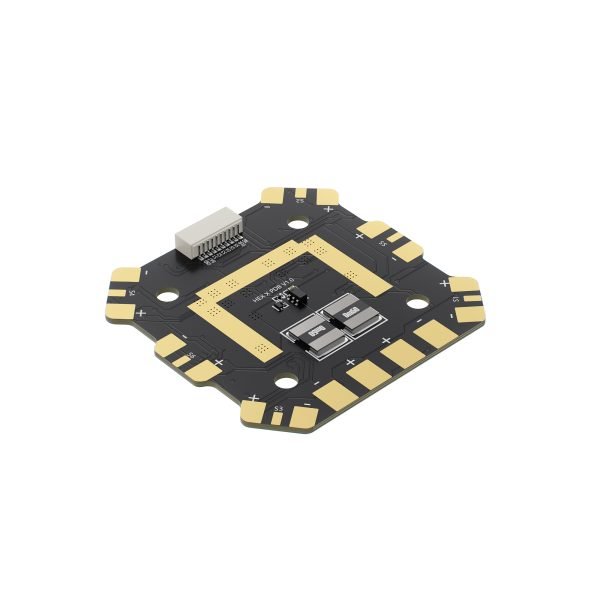

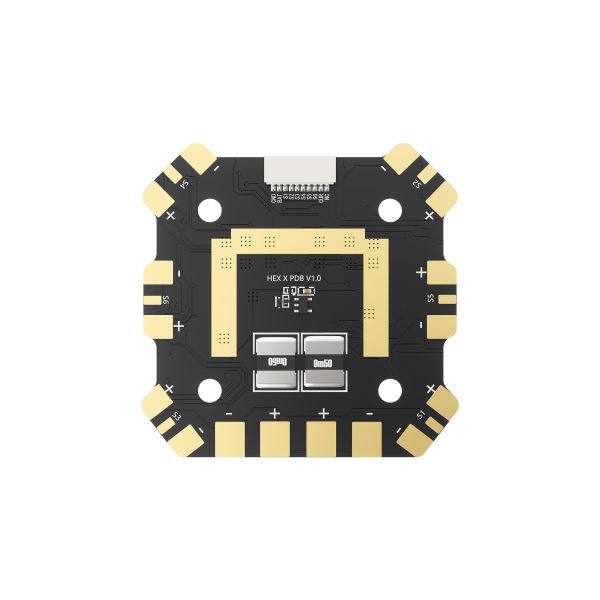

GEPRC PDB Hexacopter Power Distribution Board

Specifications

• Input Voltage: 3–8S LiPo
• On-board Current Meter: Supported
• Continuous Current: 60A per channel / 360A total (for 6 channels)
• Burst Current: 80A per channel / 480A total (for 6 channels)
• Dimension: 53x53mm
• Mounting Hole: 30x30mm
• Weight: 11.8g

Includes

1 × Hexacopter Power Distribution Board

2 × 50V 2200μF Capacitors

2 × XT90+ Connectors with Protective Housing + 10AWG Silicone Wire

1 × SH1.0-10P to 8P EP-106 FC to PDB Connection Cable

8 × M3*8 Damping Balls
