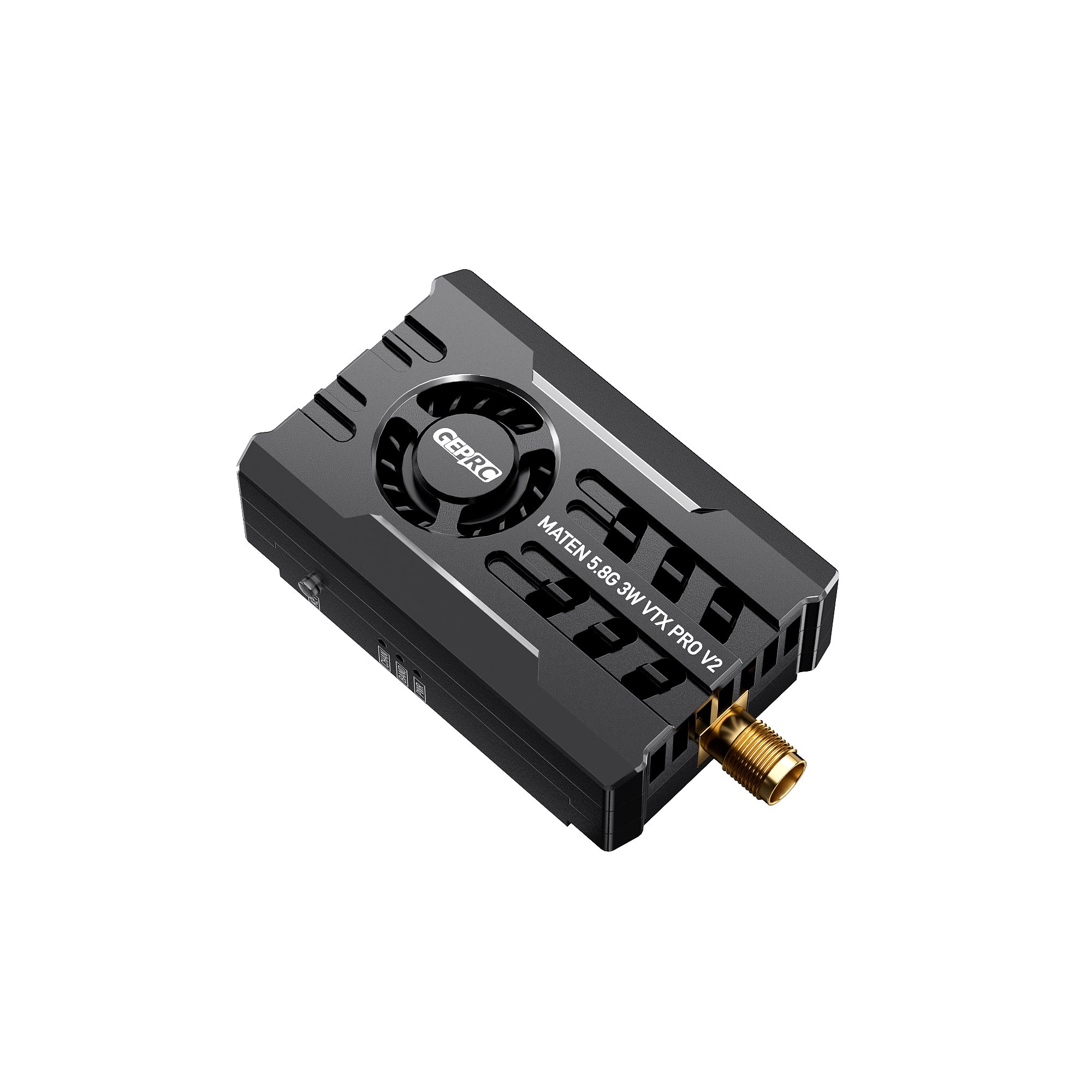

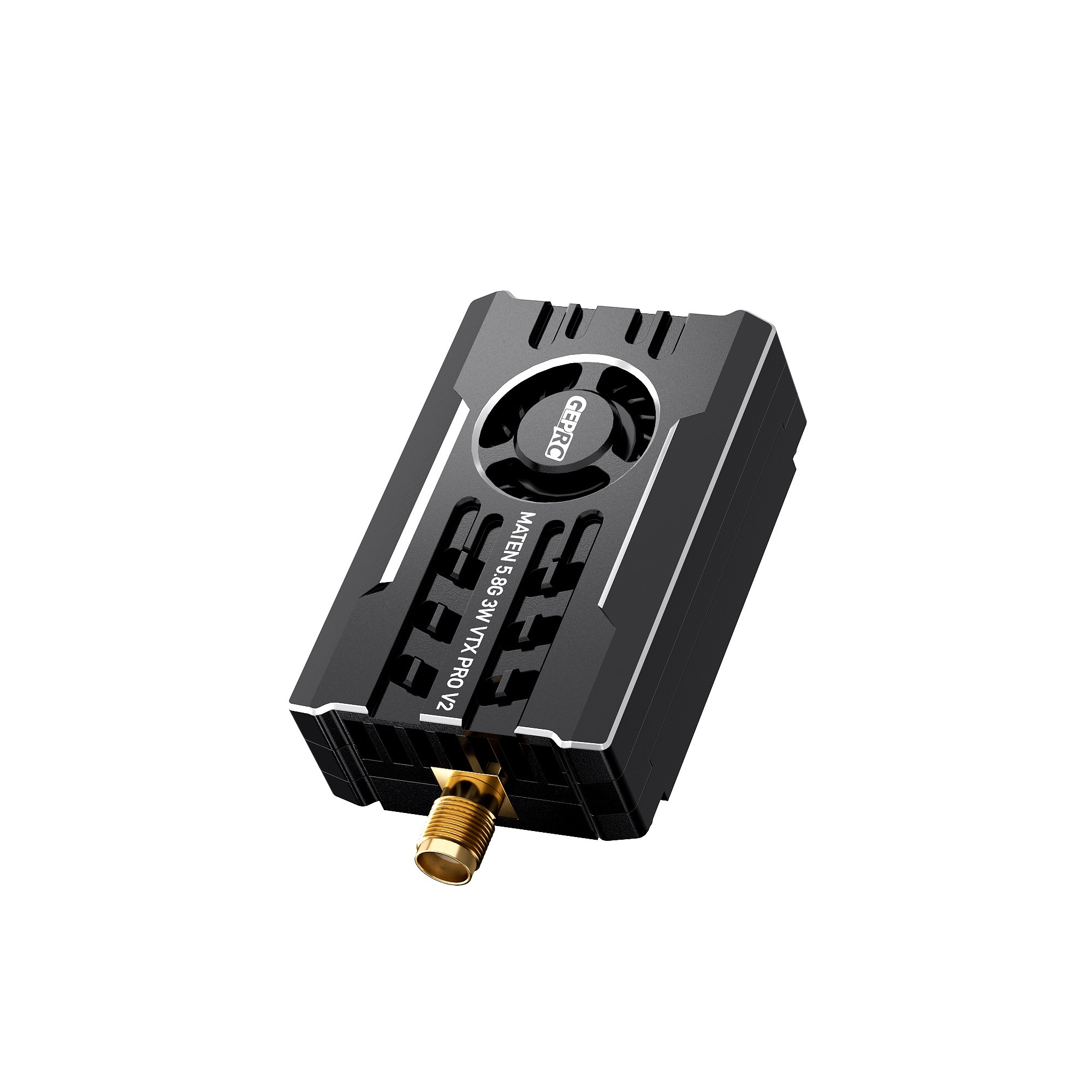

GEPRC MATEN 5.8G 3W VTX PRO V2

$59.99

SKU: N/A Categories: , Tags: , , ,

Summary

The MATEN 5.8G 3W VTX PRO V2 is a high-performance VTX newly developed by the GEPRC team. With five adjustable power options, it delivers up to 3000mW of power, ensuring stable signal transmission and excellent penetration.

Built with a high-strength CNC aluminum alloy shell, the MATEN 5.8G 3W VTX PRO V2 offers superior heat dissipation and impact resistance. Its sleek design features a fan cooling function for optimal performance and a premium SMA interface for better signal transmission. Supporting the IRC Tramp protocol, it allows you to adjust parameters through OSD.

It operates within a voltage range of 7-36V and includes temperature protection to prevent overheating and damage. With 104 transmission channels and two mounting options, and it supports direct frequency input by the configurator. 20x20mm(M2) and 25.5×25.5mm(M2), it’s the perfect VTX for any build.

Features

  1. Five adjustable power levels, up to 3000mW, ideal for long-range flights.
  2. The high-strength CNC aluminum alloy shell aids in heat dissipation.
  3. The built-in micro turbofan actively dissipates heat.
  4. Wide voltage input range, supporting 7V-36V.
  5. One function adjustment button and three indicator lights for easy operation.
  6. Supports the IRC Tramp VTX control protocol for OSD parameter adjustment.
  7. Temperature protection function prevents overheating.
  8. Supports 104 transmission channels.
  9. Compatible with 20x20mm(M2) and 25.5×25.5mm(M2) mounting hole sizes.
  10. Supports enter frequency directly in the configurator.

Specifications

  • Model: GEPRC MATEN 5.8G 3W VTX PRO V2
  • Dimension: 57.5×31.5×17.5mm(SMA) , 50×31.5×17.5mm(MMCX)
  • Mounting Hole Size：20x20mm(M2),25.5×25.5mm(M2)
  • Output Power: 25mW/200mW/600mW/1600mW/3000mW/Pit mode
  • Frequency：4884-6184MHz
  • Channels: 104CH
  • Enter Frequency Directly：Support
  • Input Voltage: DC7-36V(2-8S Battery)
  • Output Voltage: 5V
  • Protocol: IRC Tramp
  • Antenna Connector: MMCX, SMA
  • Cable Connector: SH1.0 6pin
  • Weight: 35.6g (VTX only)

Noted

  1. Installing antenna before use.
  2. Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
  3. The 5V Output is for Camera use only. Do not connect the battery input to the 5V output port, damage will occur to VTX.

Includes

1 x MATEN 5.8G 3W VTX PRO V2

1 x VTX Connection cable(SH1.0 6pin 150mm)

1 x User manual

Options

SMA, MMCX
