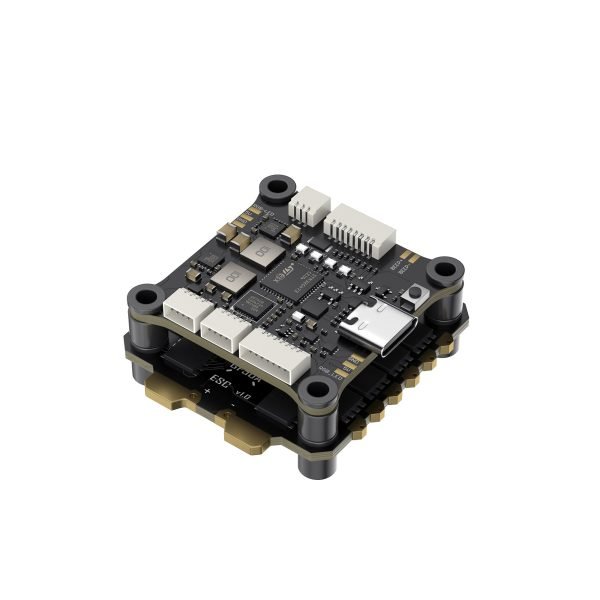

GEPRC Fettec G4 Alpha GF50A STACK

Summary

The co-branded GEPRC Fettec G4 Alpha GF50A stack by GEPRC and FETTEC has been released. The FC features a G473 main controller, built-in FETTEC Alpha firmware, and S2M or Dshot2400 high-speed protocol with GF50A ESC to achieve exceptional stability and lightning-fast responsiveness. Additionally, the powerful FETTEC closed-source firmware and feature-rich software will elevate your FPV flight experience to new levels.

Feature

1. The flight controller uses FETTEC Alpah firmware, the ESC uses FETTEC firmware, and supports high-speed protocols such as S2M and Dshot2400.
2.  All flight control function interfaces support SH1.0 cable connection, which makes assembly without soldering wires more convenient.
3.  High-definition analog two-in-one socket, supporting DJI digital image transmission and analog image transmission
4.  The FC features high robustness to handle challenging situations, such as bent propellers caused by crashes, under harsh flight conditions.

Specifications

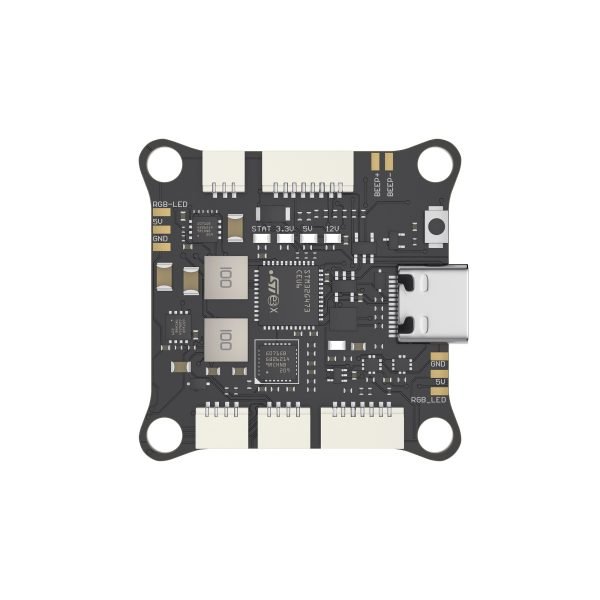

Model：GEPRC Fettec G4 Alpha

• MCU：STM32G473CEU6
• IMU：llM 42602
• Firmware：FETTEC ALPHA
• OSD：FETTEC OSD
• External buzzer：YES
• External LED ：YES
• USB Interface：TYPE-C
• BEC Output：9v@2A MAX 2.5A 5V@2A MAX 2.5A
• Weight：6.6g

Model：GEPRC Fettec GF50A 4IN1 DShot2400 ESC

• MCU: STM32G071
• Continuous current: 50A
• Peak current: 55A
• Input: 2~6S (LIPO Battery)
• Protocol: S2M+OW, S2M, Dshot300-2400
• Galvanometer: YES
• Firmware: FETTEC
• Dimension: 32x32mm Board
• Installation hole position: 30.5mmx30.5mm M4
• Weight: 13g

Includes
