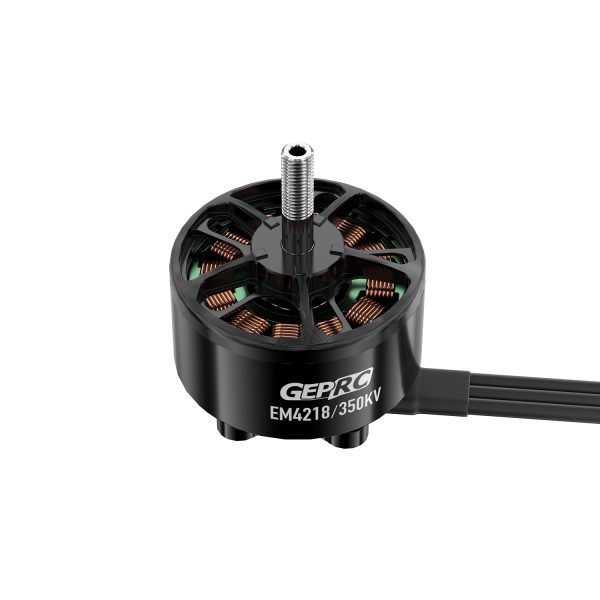

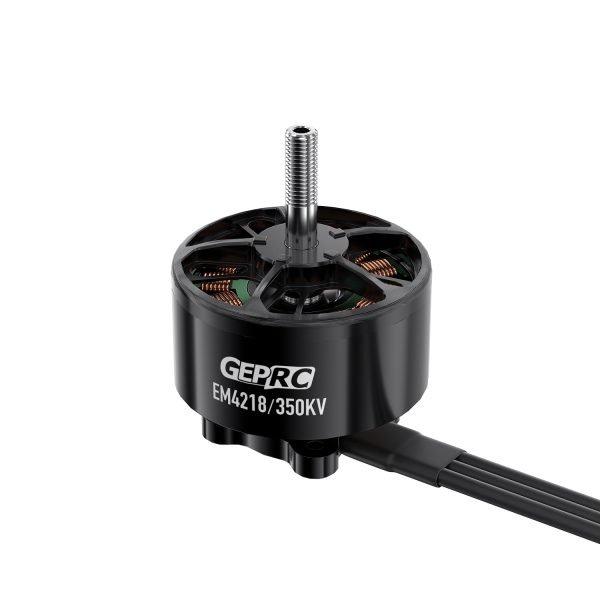

GEPRC EM4218 350KV Motor

$52.99

SKU: GP107274 Categories: , Tags: , , ,

Feature

  1. New EM series motors designed for long-range FPV
  2.  High-strength M6 steel shaft
  3. High torque magnetic circuit design

Specifications

  • Model: EM4218 350KV Motor
  • KV: 350KV
  • Max Watt: 1800W
  • Peak Current: 60A
  • Interphase Resistance: 50mΩ
  • Propeller: 13-15inch Propeller
  • Magnet: N52H
  • Bearing Type: NMB
  • Configuration: 12N14P
  • Dimension: φ49mmx40.1mm
  • Shaft Diameter: φ6mm
  • Shaft Protruding Length: 22.9mm
  • Mounting Holes: 30mmx30mm
  • Lead: 800mm/14AWG
  • Compatible ESC: 60A-80A
  • Input Volts: 33.6V(8S LiPo)
  • Winding: Many-strand copper winding
  • Included Screws: Semi-spherical Head M4*10 (4PCS)/M6 Flange Nut (1PCS)
  • Weight: 289g(included wire)
  • Compatible models: 13-15 inch long-range FPV

Includes

1 x EM4218 motor

4 x M4*12 round head screws

1 x M6 anti-slip nut
