GEPRC EM3215 900KV/750KV Motor

Feature

1. New EM series motors, designed for long-range FPV
2.  High-strength M5 steel shaft
3.  High-torque magnetic circuit design
4. 19mmx19mm base

Specifications

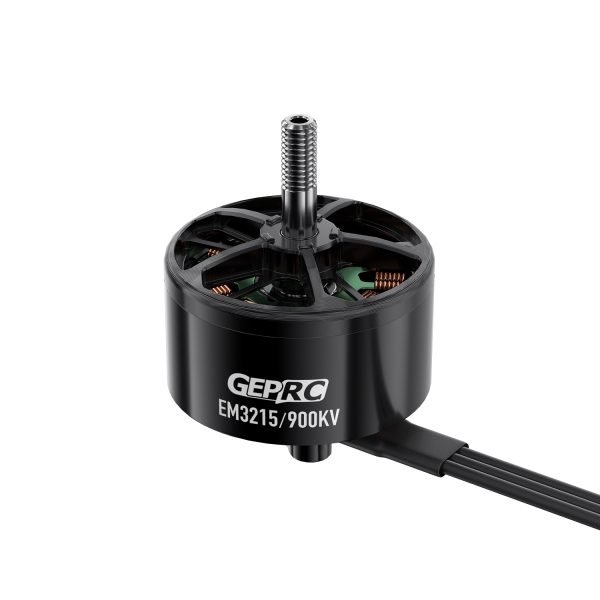

ITEM:EM3215 900KV

• Model: EM3215 900KV Motor
• KV：900KV
• Max Watt: 1780W
• Peak Current: 75A
• Interphase Resistance: 33mΩ
• Propeller: 9-10inch Propeller
• Magnet: N52H
• Bearing Type: NMB
• Configuration: 12N14P
• Dimension: φ38.6mmx30.7mm
• Shaft Diameter: φ5mm
• Shaft Protruding Length: 17.2mm
• Mounting Hole Size: 19mmx19mm
• Lead: 300mm/18AWG
• ESC: 60A-80A
• Input Volts: 25.2V（6S LiPo)
• Winding: Single-strand copper winding
• Screws Included: Round head M3*8 (4PCS) / M5 flange nut (1PCS)
• Weight: 122g(included wire)
• Compatible Models: 9-10 inch  long range FPV

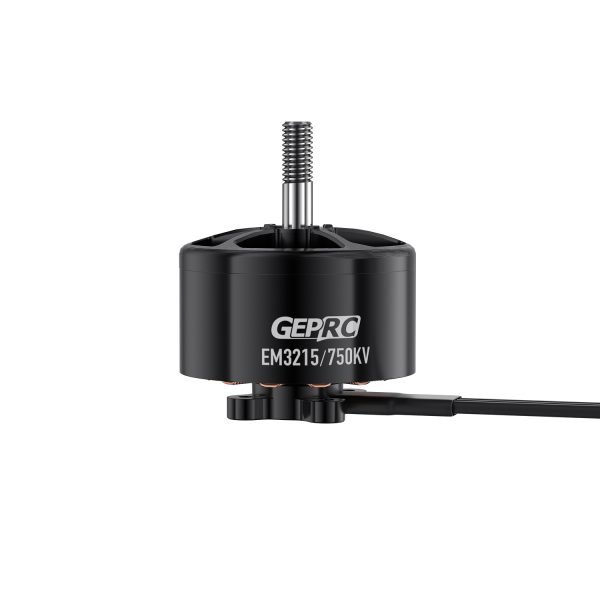

ITEM:EM3215 750KV

• Model: EM3215 750KV Motor
• KV: 750KV
• Max Watt: 1450W
• Peak current: 61A
• Interphase Resistance: 43mΩ
• Propeller: 10-inch Propeller
• Magnet: N52H
• Bearing Type: NMB
• Configuration: 12N14P
• Dimension: φ38.6mmx30.7mm
• Shaft Diameter：φ5mm
• Shaft Protruding Length: 17.2mm
• Mounting Hole Size: 19mmx19mm
• Lead: 300mm/18AWG
• ESC: 60A-80A
• Input Volts: 25.2V（6S LiPo)
• Winding: Multiple-strand copper winding
• Screws Included：Round head M3*8 (4PCS) / M5 flange nut (1PCS)
• Weight (with wire)：122g
• Compatible models: 10-inch long-range FPV

Includes

1 x EM3215 motor

4 x M3*8 round head screws

1 x M5 anti-slip nut
