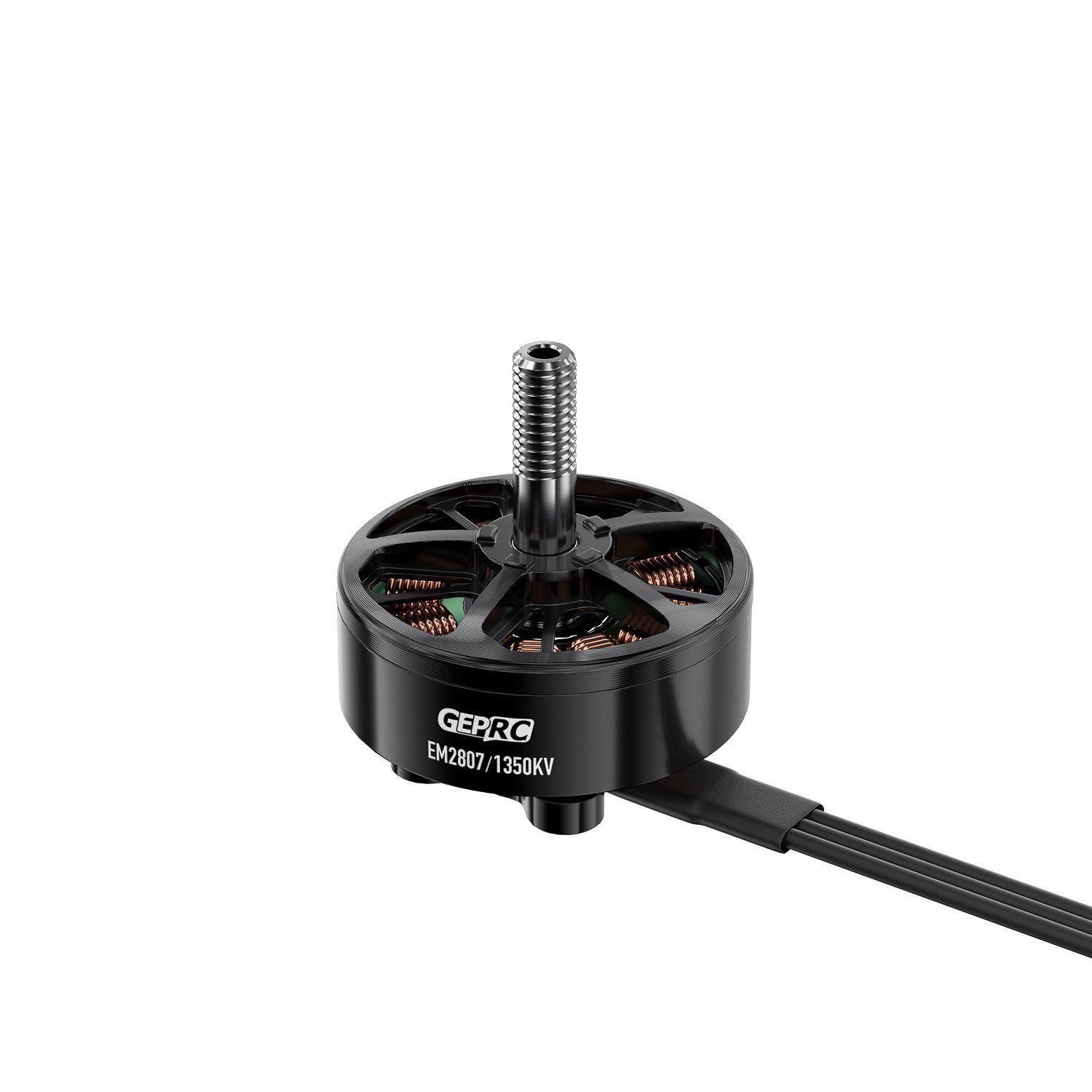

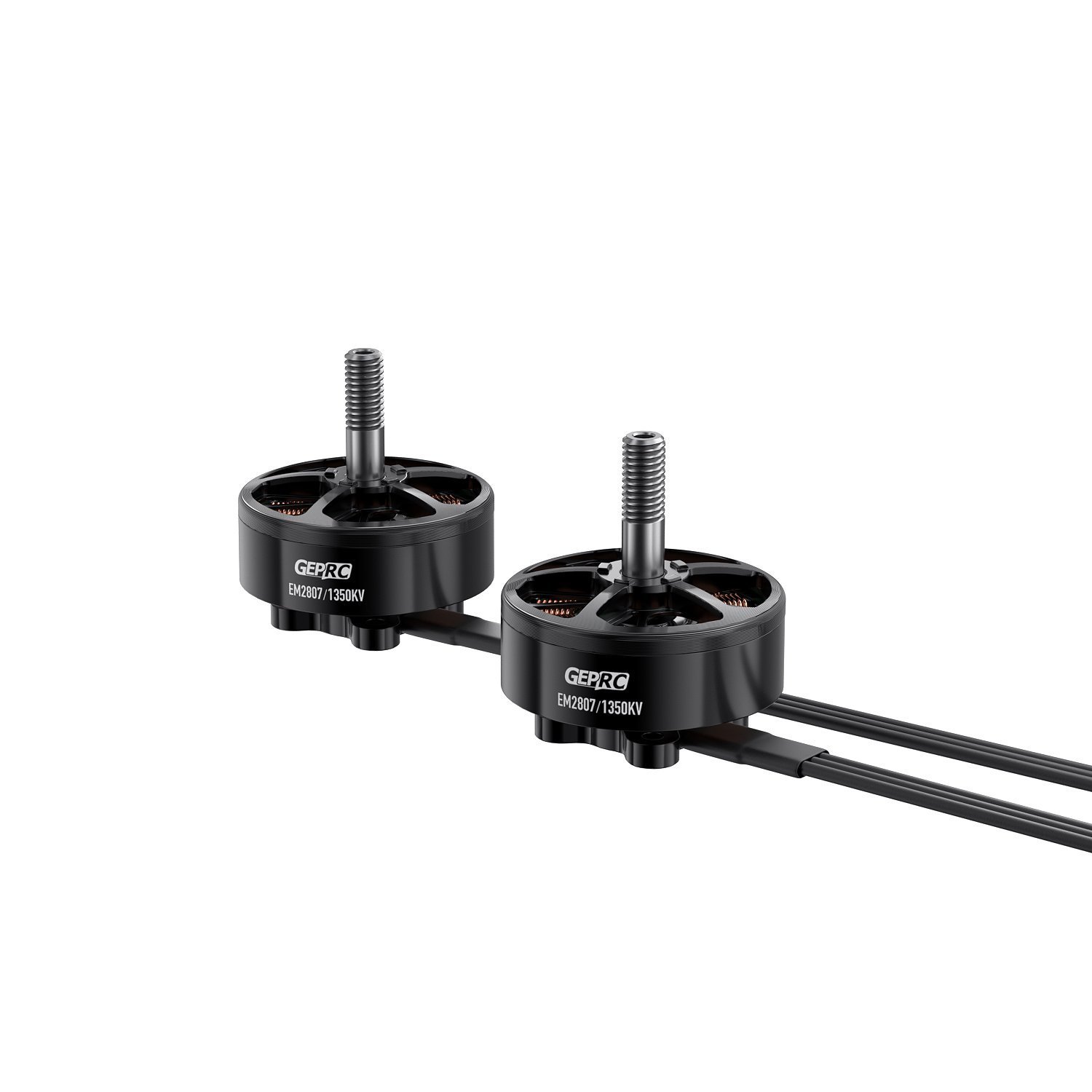

GEPRC EM2807 1350KV Motor

$19.99

SKU: GP106117 Categories: , Tags: , ,

Feature

  1. New EM series motors，mainly designed for long range FPV.
  2.  High-strength M5 steel shaft
  3.  High torque magnetic circuit design
  4. 19mmx19mm base

Specifications

  • Model: EM2807 1350KV Motor
  • Max Watt: 1080W
  • Peak current: 47A
  • Interphase resistance: 45mΩ
  • Propeller: 6-8inch Propeller
  • Magnet: N52H
  • Bearing type: NSK/NMB
  • Configuration: 12N14P
  • Dimension: φ33mmx20.1mm
  • Shaft Diameter: φ5mm
  • Shaft Protruding Length: 16mm
  • Mounting holes: 19mmx19mm
  • Lead: 260mm/18AWG
  • ESC: 50A-60A
  • Input Volts: 25.2V（6S LiPo)
  • Winding: Single strand copper winding
  • Weight: 57g(included wire)
  • Suitable for :7-8 inch long range FPV

Includes

1x EM2807 motor

4 x M3*9 round head screws

1 x M5 anti-slip nut
