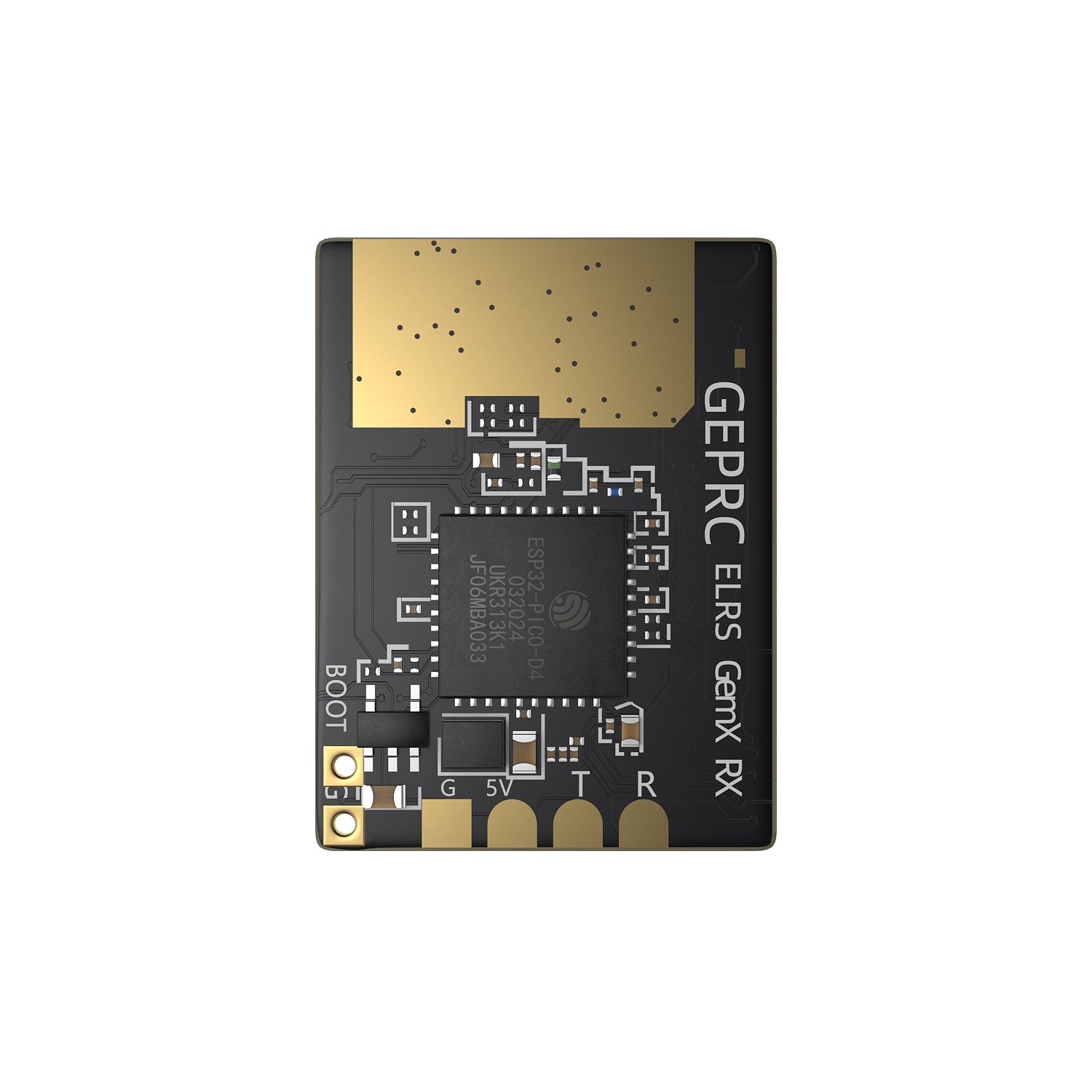

GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver

Summary

The GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver is a new dual-band system developed from the ExpressLRS open-source project. It is designed based on Semtech’s third-generation LR1121 RF chip, supporting 150 – 960MHz (sub-GHz) and 2.4GHz bands for simultaneous dual-band transmission.

The ELRS 915M/2.4G Gemini Xrossband Receiver features dual LR1121 chips, allowing easy switching between 915M Gemini, 2.4G Gemini, and dual-band 915M+2.4G modes (requires dual-band TX module support) when paired with 915M/2.4G antennas. It is fully compatible with existing 915M and 2.4G ELRS TX modules.

In dual-frequency mode, it provides enhanced anti-interference and stability. The TCXO temperature-compensated crystal oscillator ensures reliable performance across temperature variations, with telemetry power up to 100mW. The built-in WiFi antenna facilitates effortless firmware updates, and the SH1.0 connector simplifies installation.

Feature

1.  Advanced ExpressLRS 915M/2.4G dual-frequency system
2. Based on Semtech’s third-generation LR1121 RF chip
3.  Compact at 18×23.6×5.7mm and weighing just 1.7g
4. Supports 915M Gemini, 2.4G Gemini, 915M+2.4G dual-RF
5.  Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures
6.  Telemetry power up to 100mW
7.  Refresh rate up to 1000Hz
8.  Supports WiFi firmware updates
9.  Includes an SH1.0 connector for easy installation

 Includes

1 x ELRS 915M/2.4G Gemini Xrossband Receiver

2 x 915M/2.4G Dual-band T-Antennas

1 x Heat shrink tube

1 x 4-pin silicone connect cable

1 x User manual
