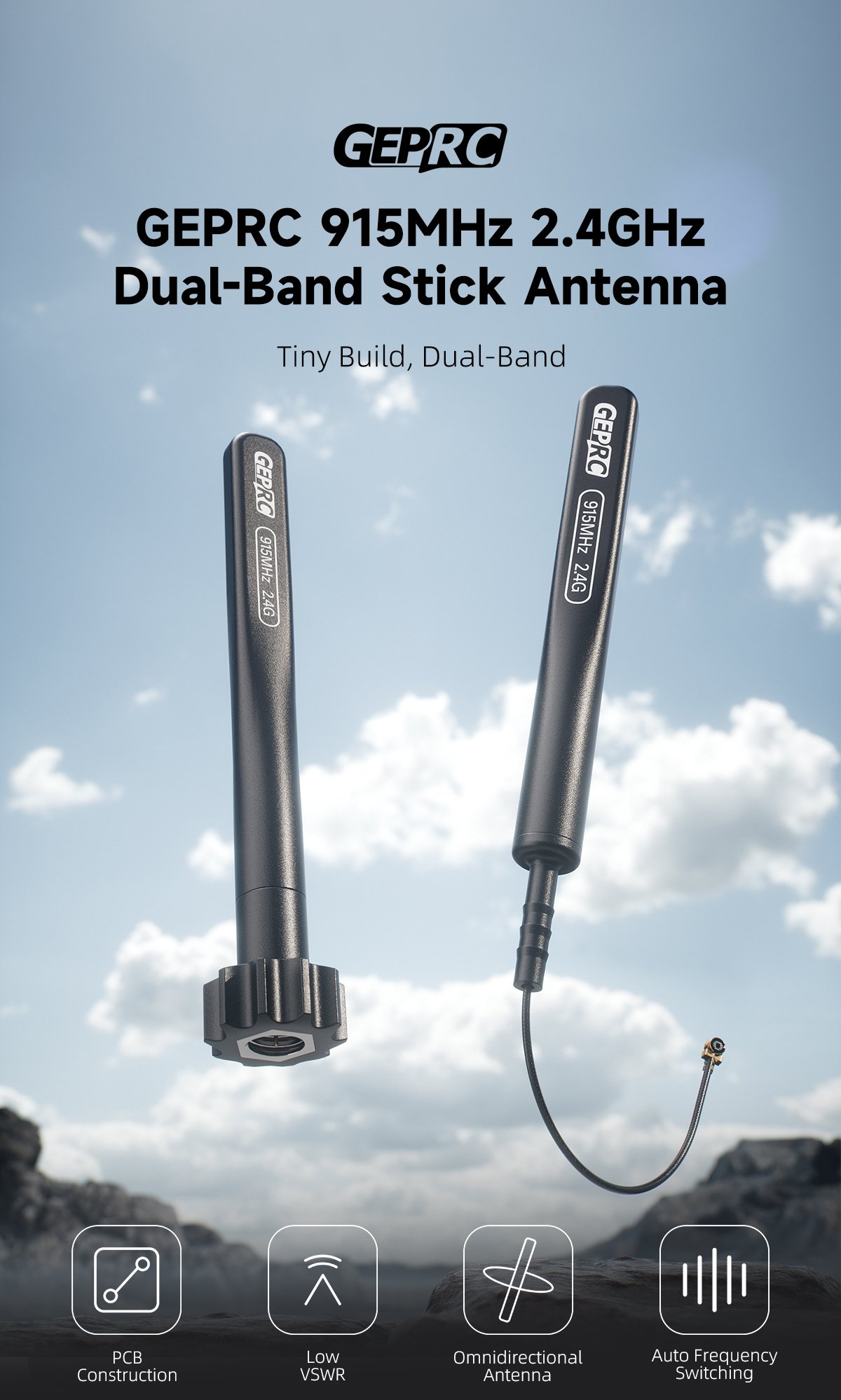

GEPRC 915MHz 2.4GHz Dual-Band Stick Antenna

Summary

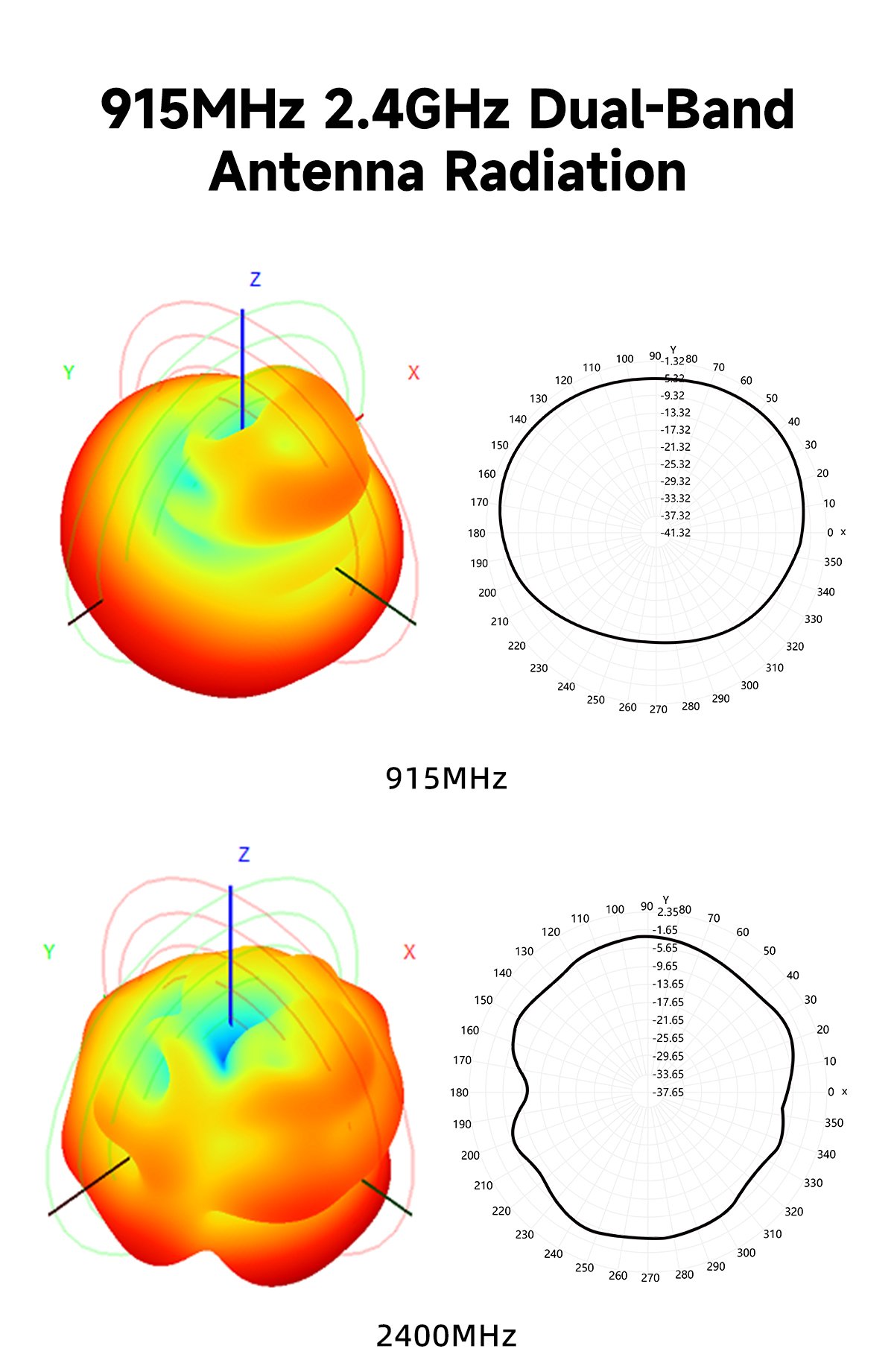

GEPRC 915MHz 2.4GHz Dual-Band Stick Antenna adopts a PCB material design with a linearly polarized omnidirectional RF structure, ensuring wide-range signal reception and stable communication even during large attitude changes in flight.

With excellent cross-polarization suppression performance, it effectively minimizes interference.

Compared to the 170mm tri-band antenna, the 90mm version is shorter, lighter, and more refined — making it a perfect fit for smaller drones such as 4-inch and 5-inch models.

Features

1. Dual-band design covering 900–930MHz (915MHz band) and 2400–2500MHz (2.4GHz band).
2. Optimized for stronger signal reception at a vertical angle.
3. Durable, low-drag oval shape with an injection-molded ABS shell.

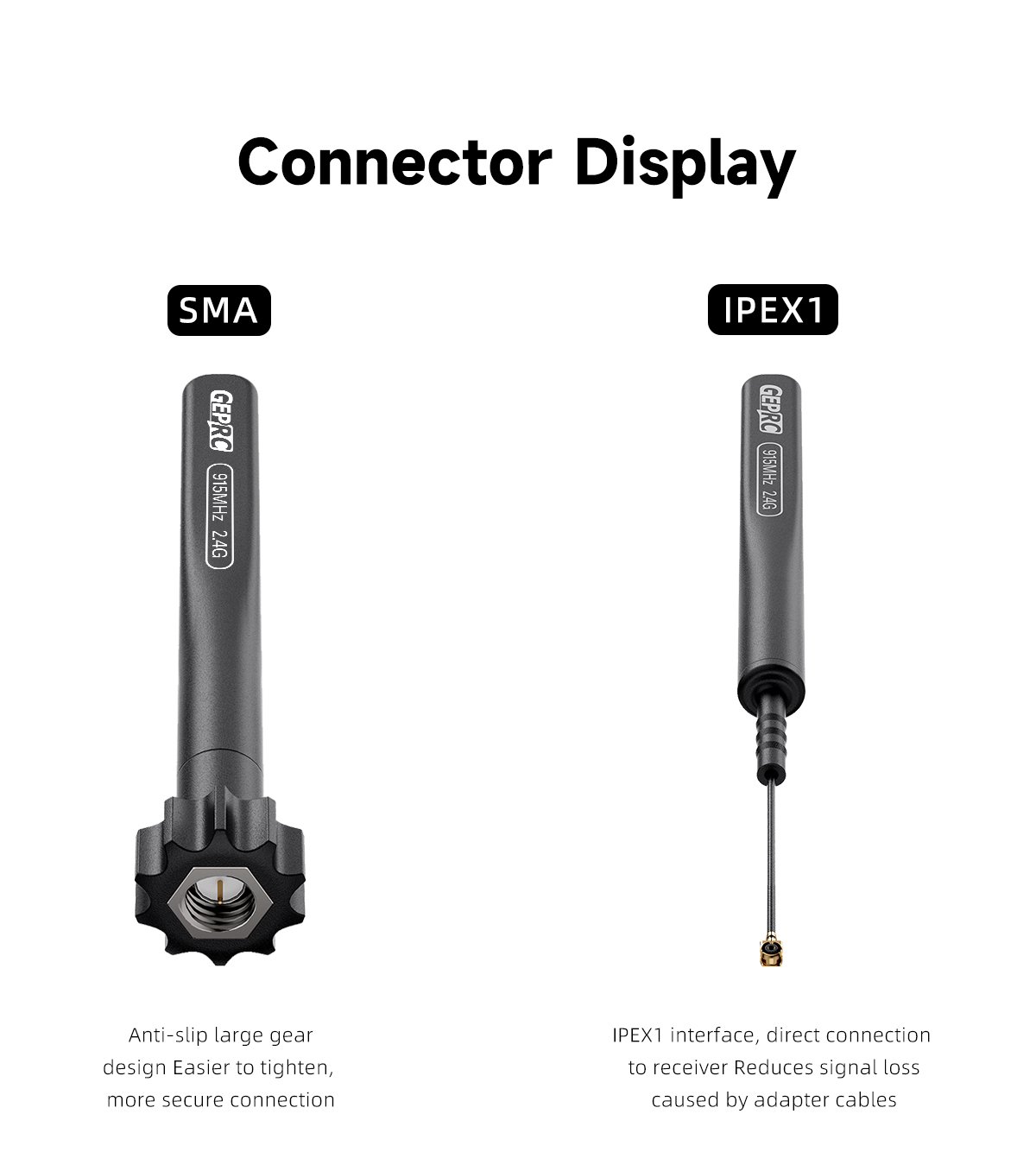

4. High-quality SMA connector minimizes signal loss.

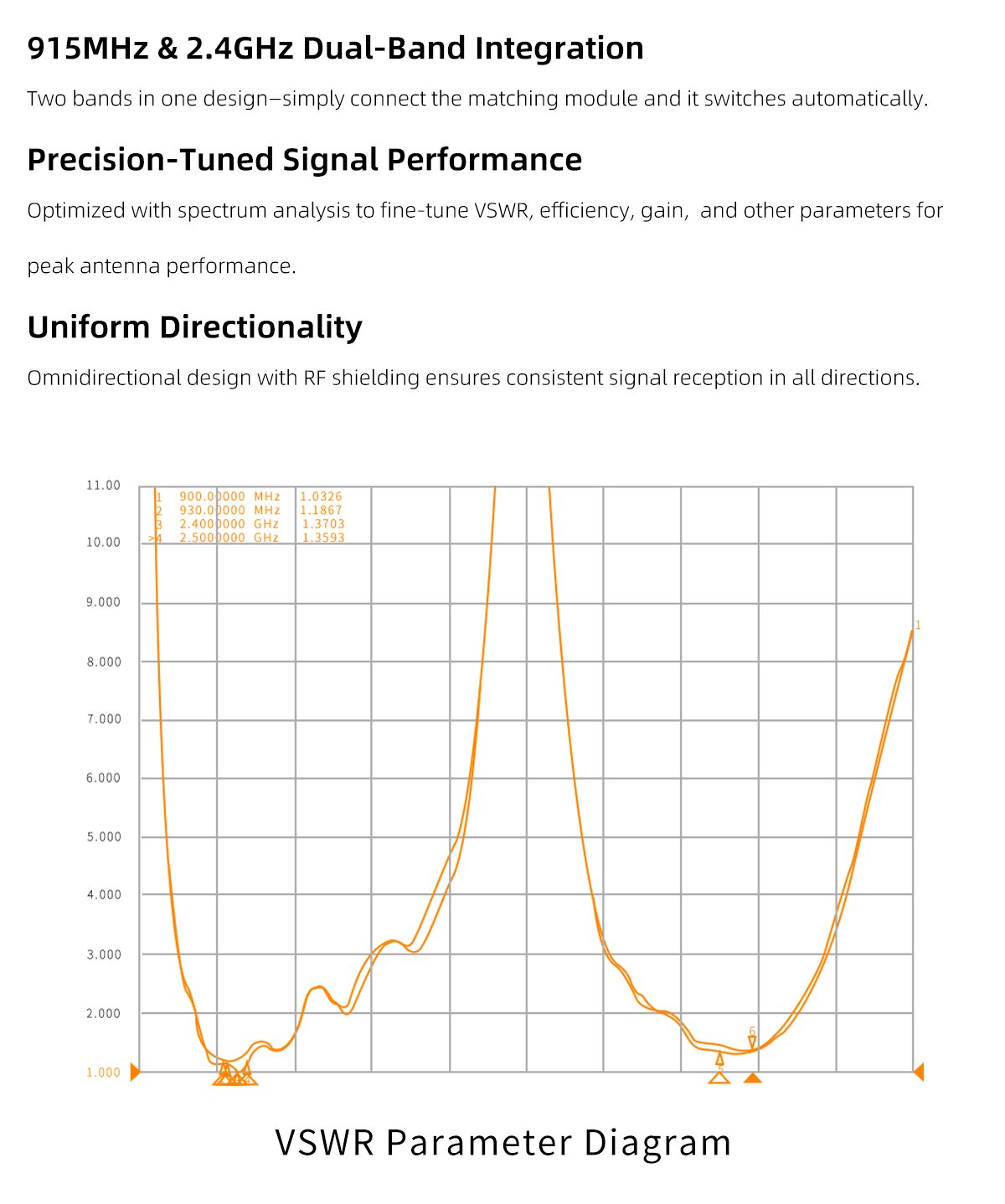

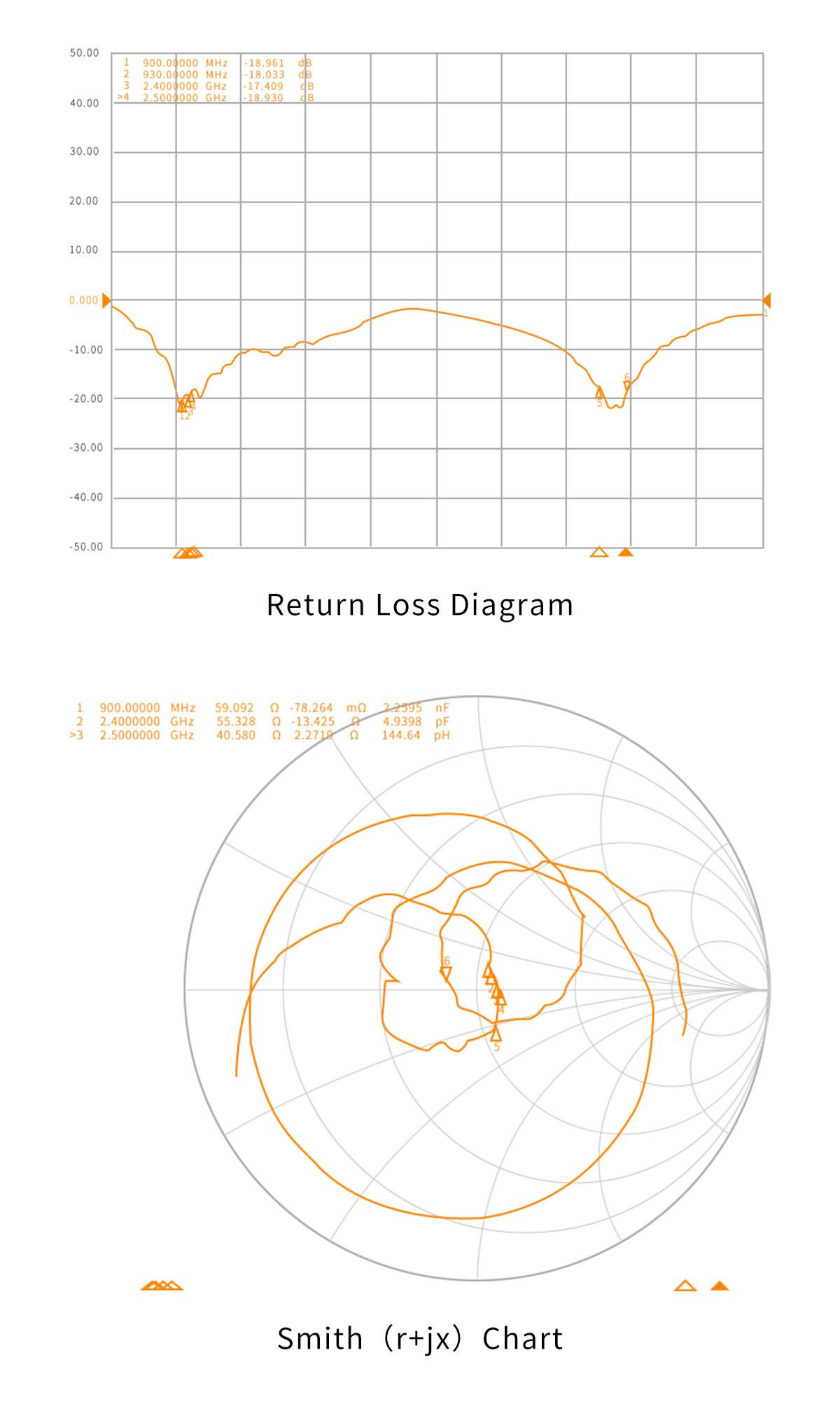

5. Each antenna undergoes testing with a spectrum analyzer to ensure VSWR compliance with standards.
6. The 90mm version is shorter, lighter, and more refined.

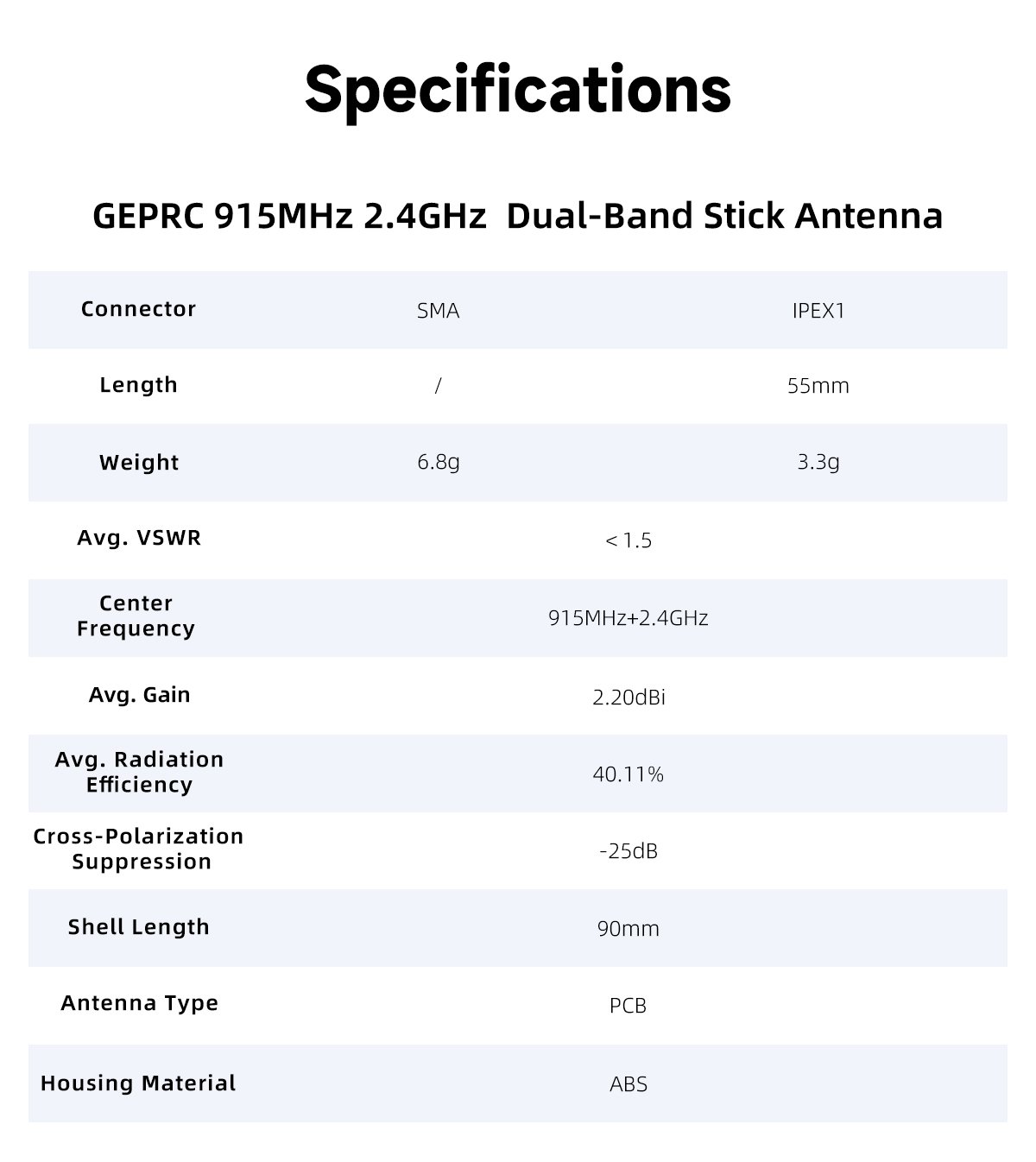

 Specifications

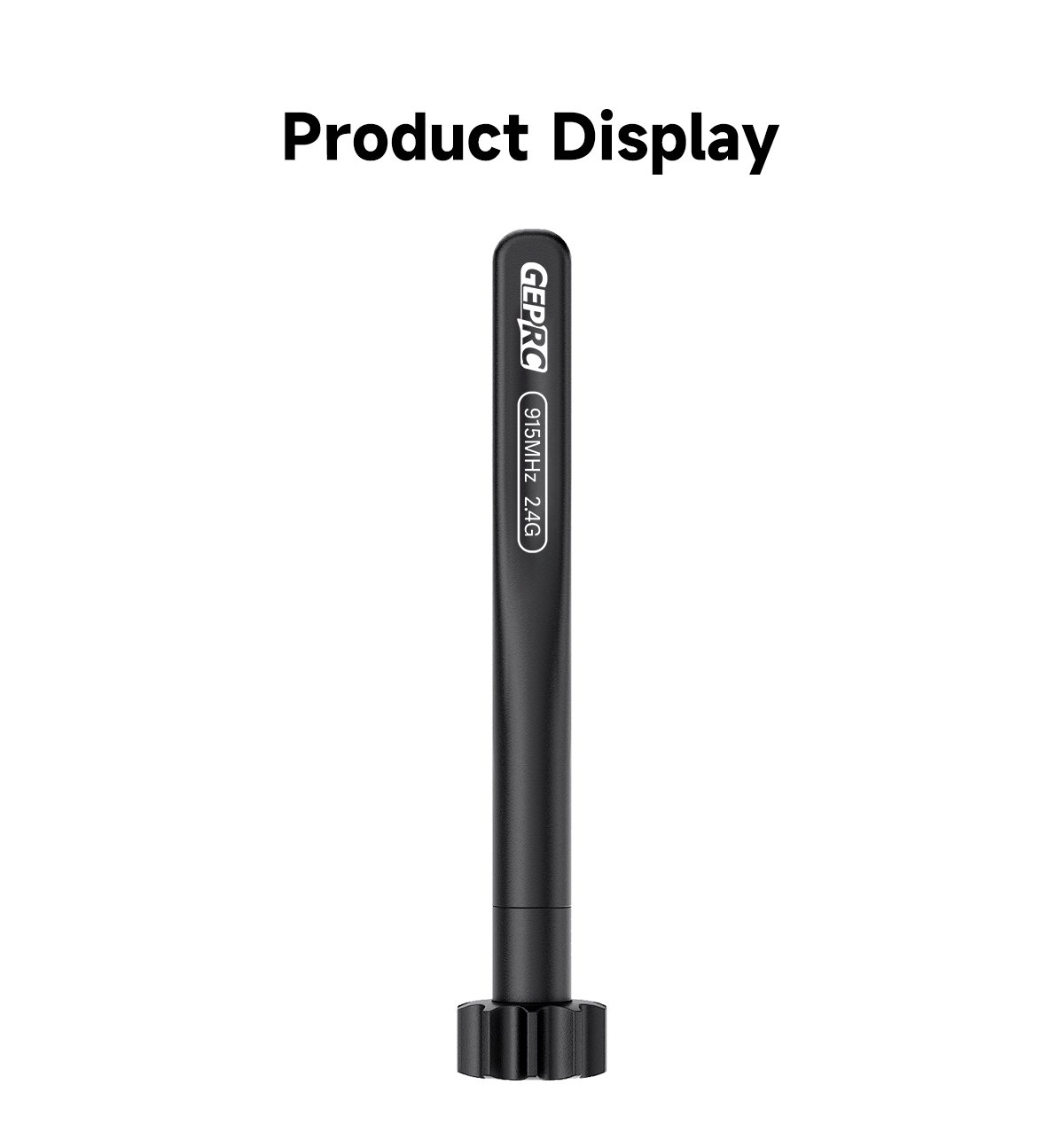

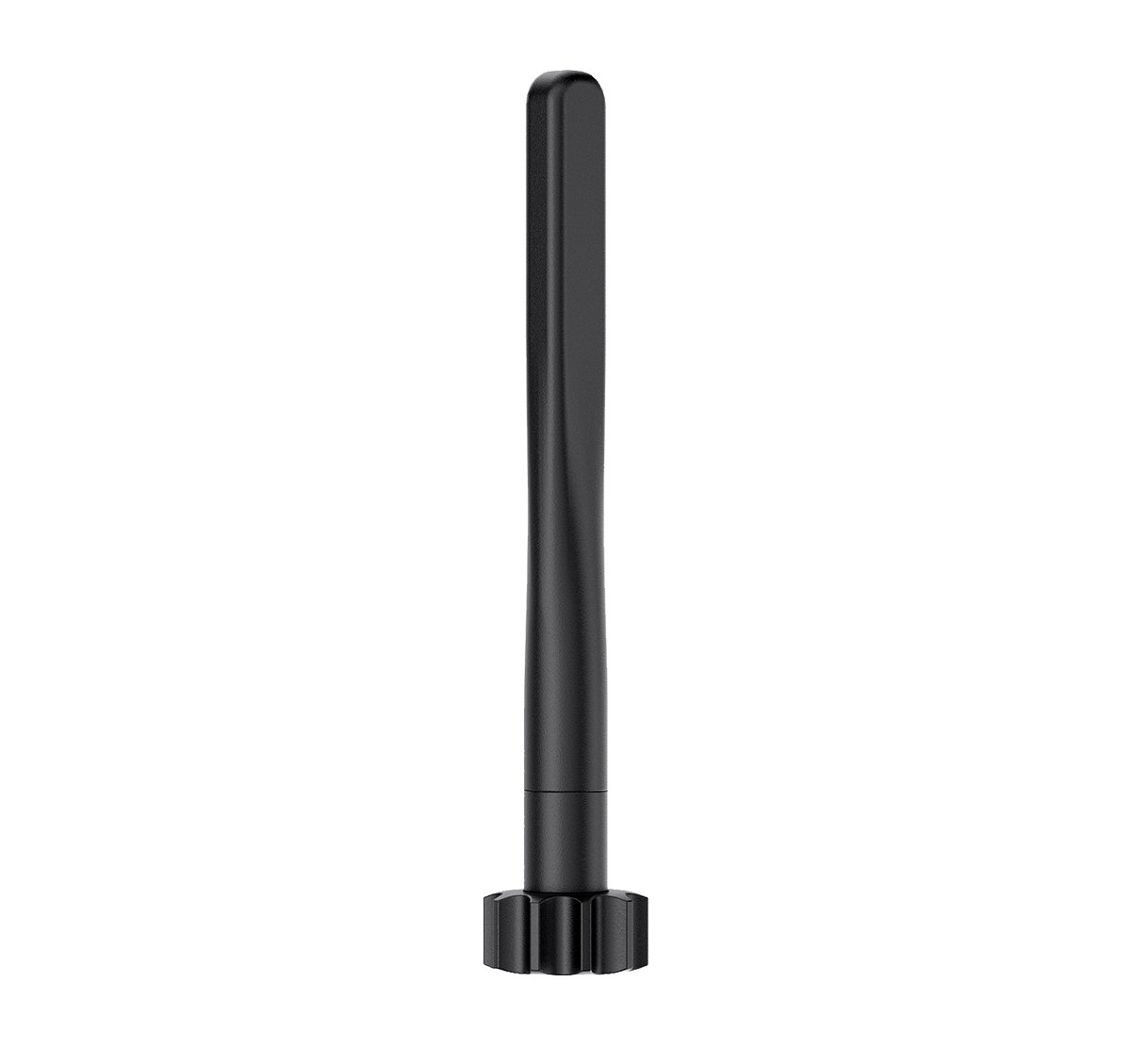

GEPRC 915MHz 2.4GHz Dual-Band Stick Antenna (SMA)

• Model: GEPRC 915MHz 2.4GHz Dual-Band Stick Antenna (SMA)
• 915MHz Center Frequency: 915MHz
• 2.4GHz Center Frequency: 2450MHz
• Polarization: Linear
• 915MHz Gain: 1.54 dBi
• 2.4GHz Gain: 2.59 dBi
• VSWR: ≤1.5
• 915MHz Radiation Efficiency: 32.38%
• 2.4GHz Radiation Efficiency: 45.84%
• Cross-Polarization Suppression: -25 dB
• Length: 90mm
• Antenna Type: PCB
• Weight: 6.8 ± 0.2 g
• Housing Material: ABS
• Connector: SMA

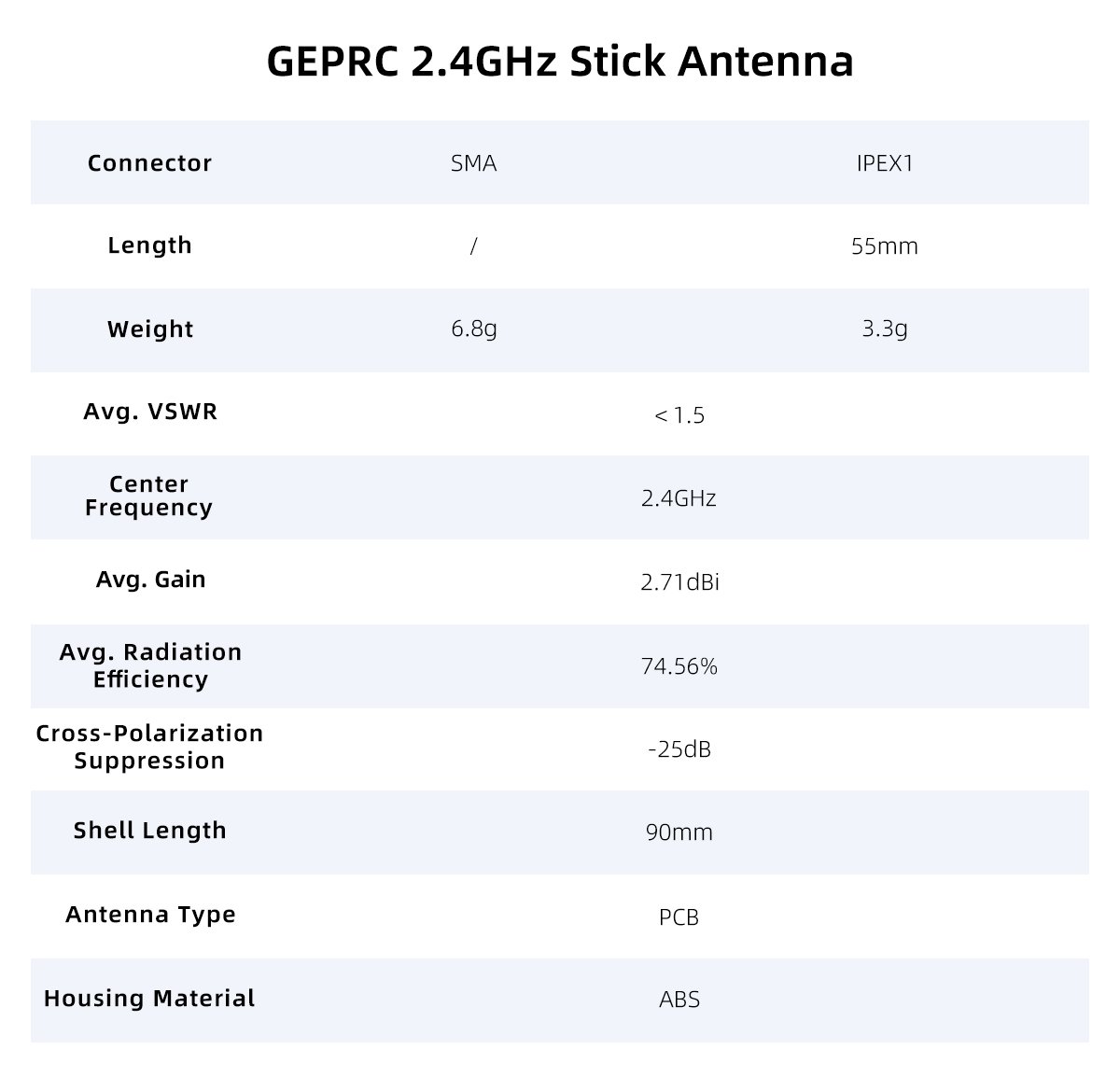

GEPRC 2.4GHz Stick Antenna (SMA)

• Model: GEPRC 2.4GHz Stick Antenna (SMA)
• 2.4Gz Center Frequency: 2450MHz
• Frequency Range: 2.4GHz
• Polarization: Linear
• 2.4GHz Gain: 2.71 dBi
• VSWR: ≤1.5
• 2.4GHz Radiation Efficiency: 74.56%
• Cross-Polarization Suppression: -25 dB
• Length: 90mm
• Antenna Type: PCB
• Weight: 6.8 ± 0.2 g
• Housing Material: ABS
• Connector: SMA

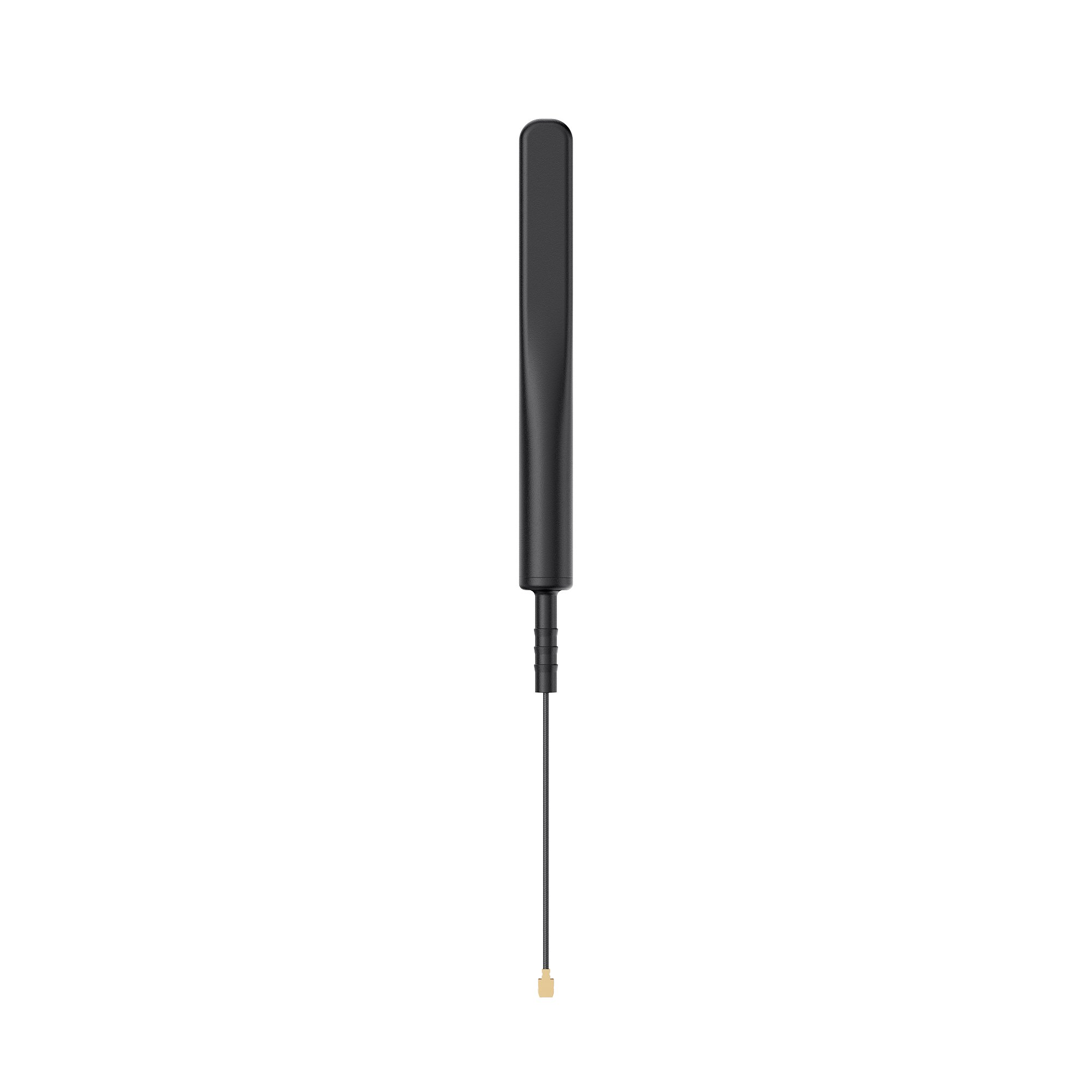

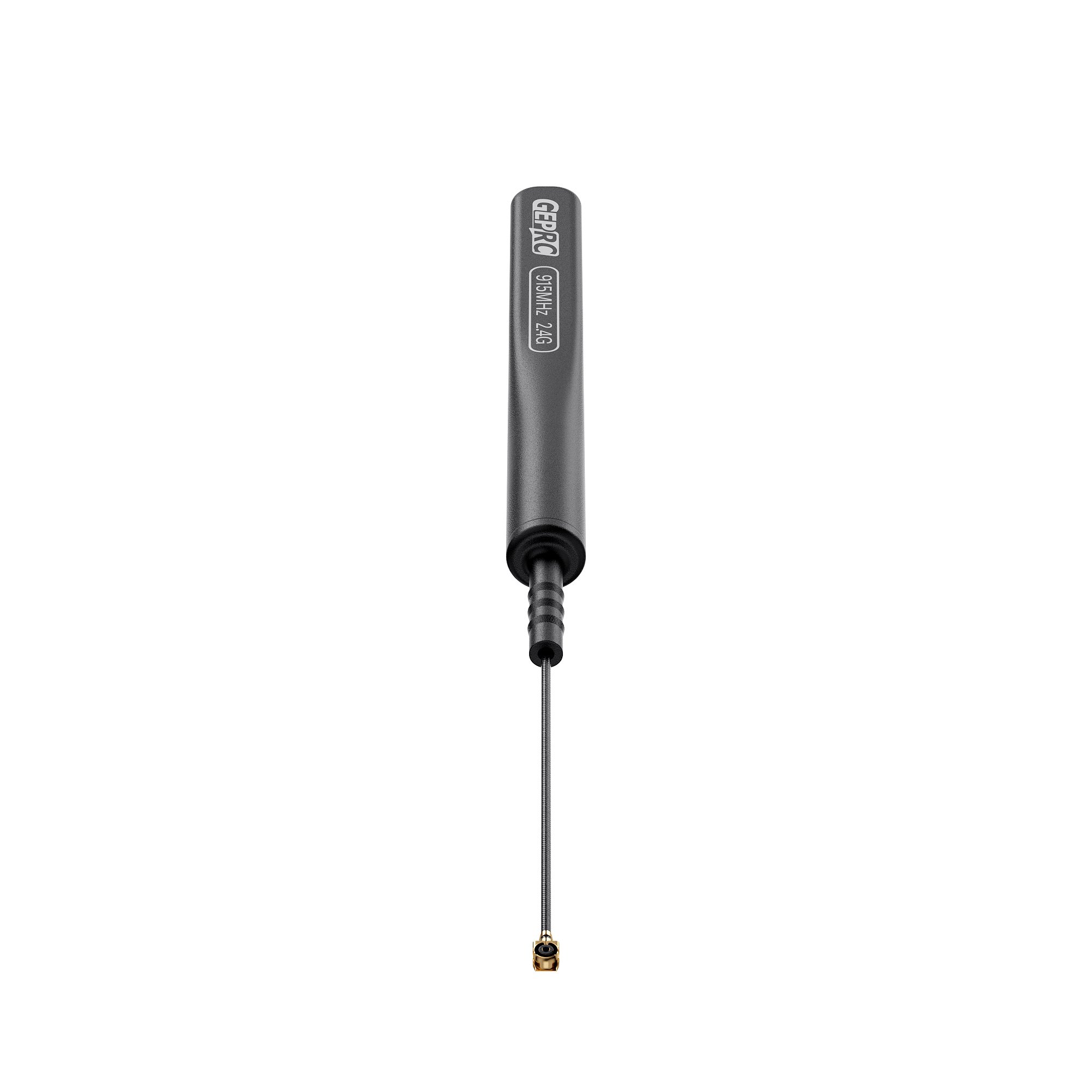

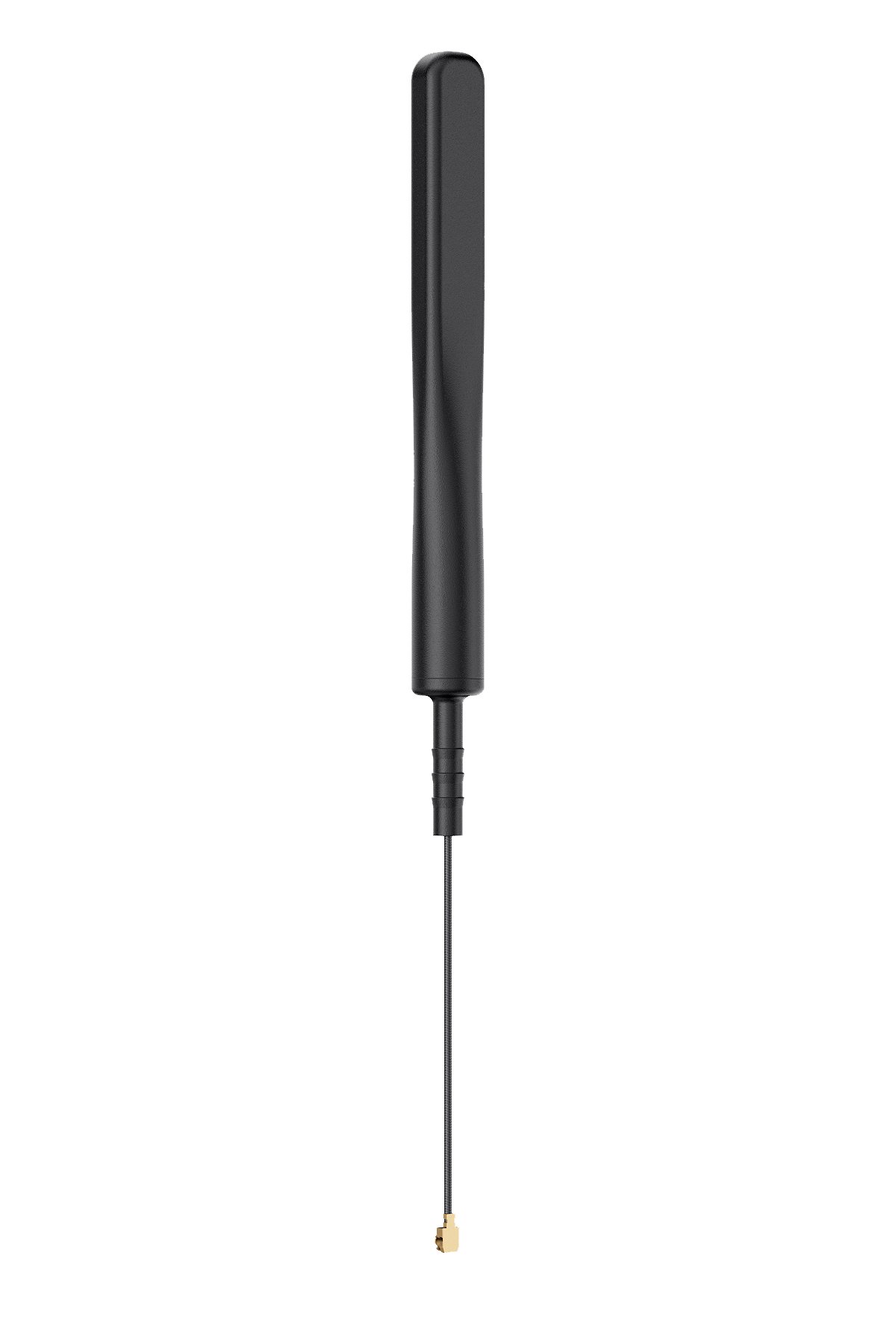

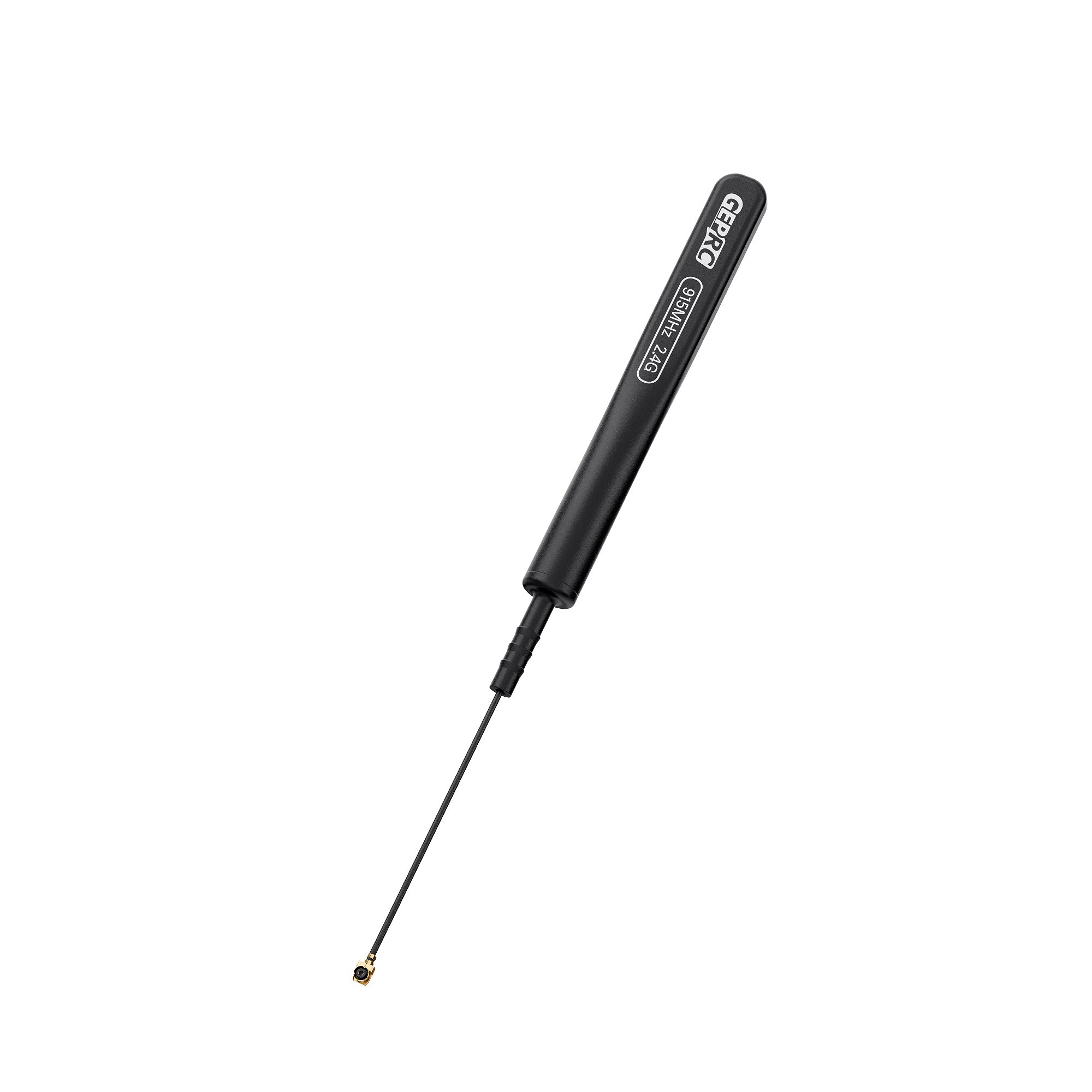

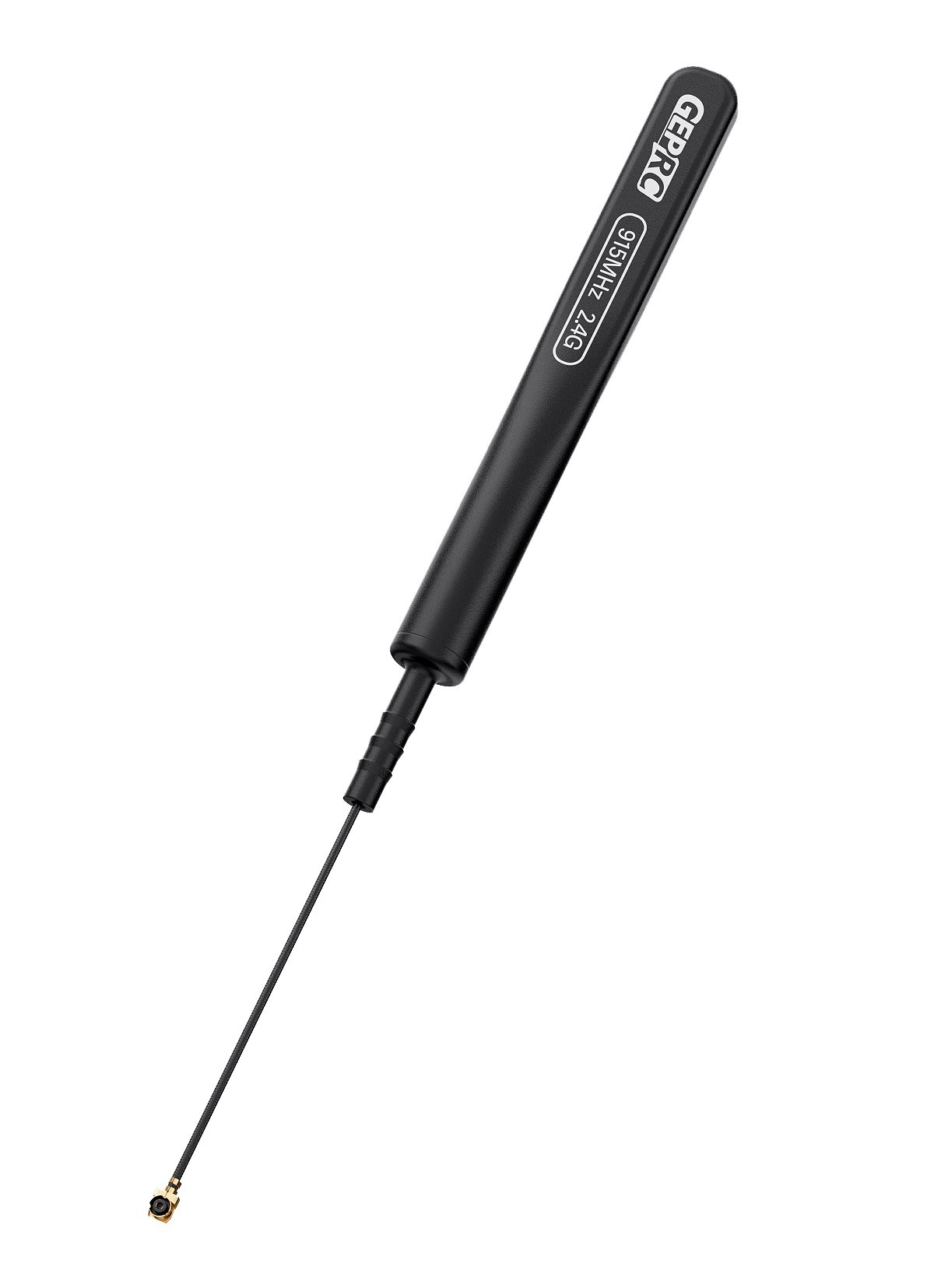

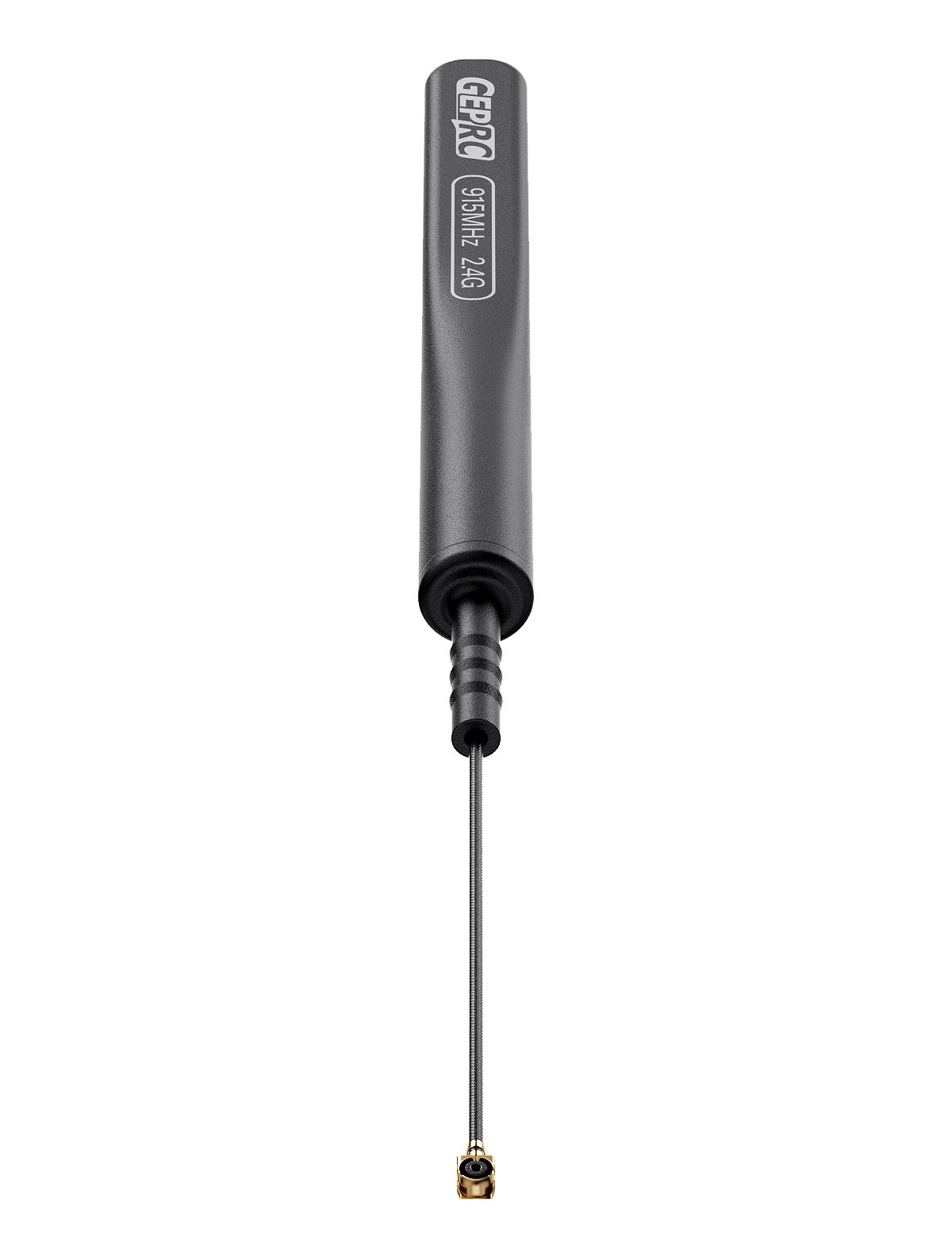

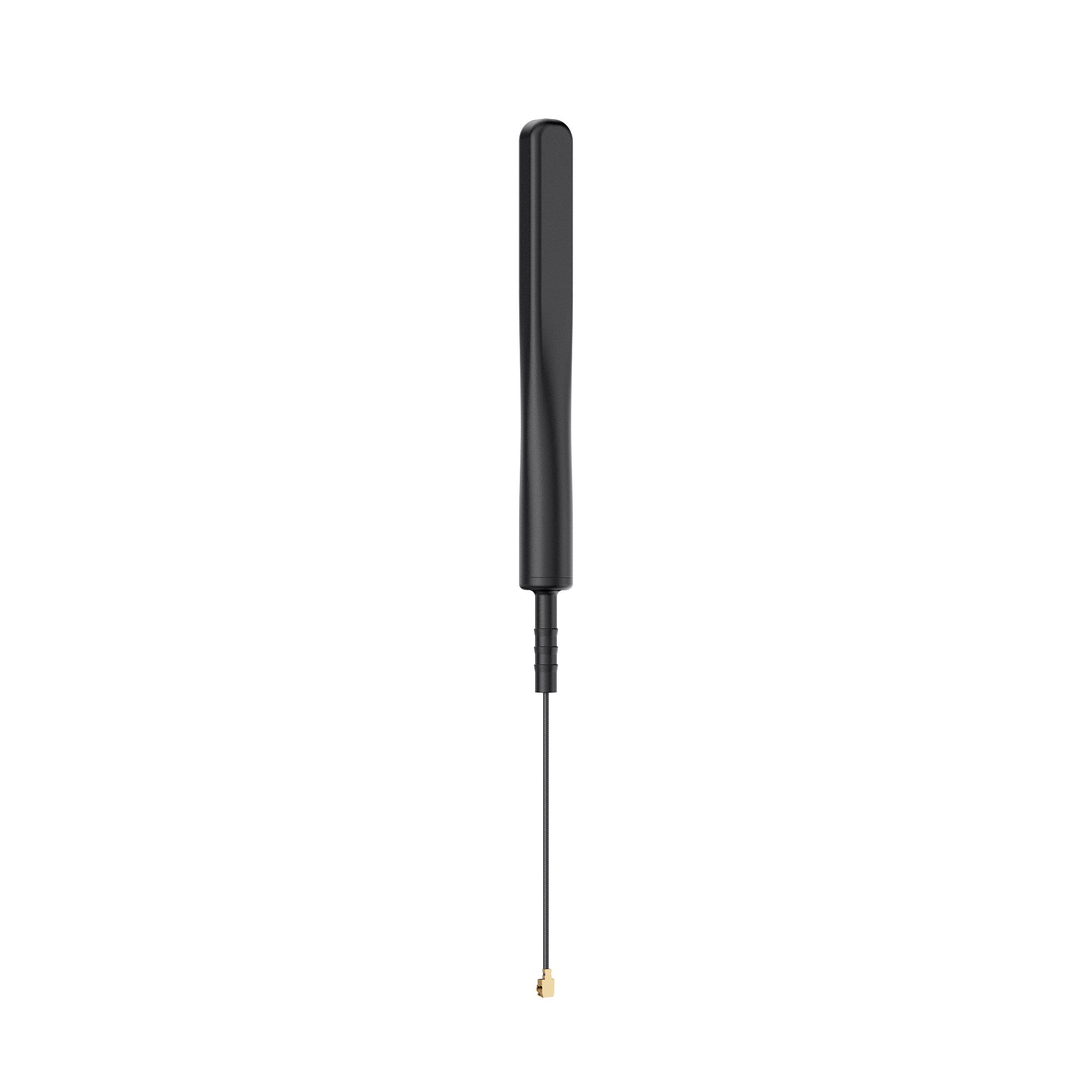

GEPRC 915MHz 2.4GHz Dual-Band Stick Antenna (IPEX1)

• Model: GEPRC 915MHz 2.4GHz Dual-Band Stick Antenna (IPEX1)
• 915MHz Center Frequency: 915MHz
• 2.4GHz Center Frequency: 2450MHz
• Polarization: Linear
• 915MHz Gain: 1.54 dBi
• 2.4GHz Gain: 2.59 dBi
• VSWR: ≤1.5
• 915MHz Radiation Efficiency: 32.38%
• 2.4GHz Radiation Efficiency: 45.84%
• Cross-Polarization Suppression: -25 dB

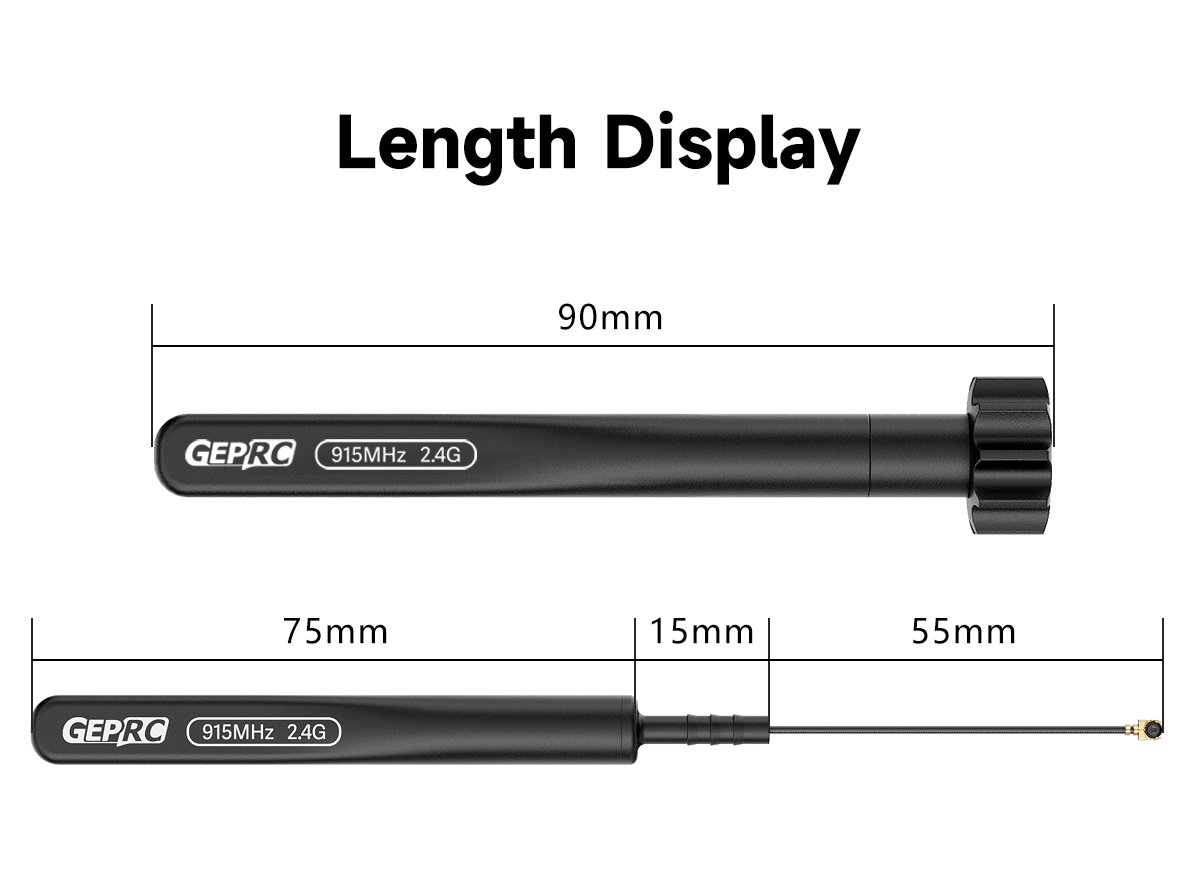

• Length: 90mm
• Feed Line Length: 55mm
• Antenna Type: PCB
• Weight: 3.3 ± 0.2 g
• Housing Material: ABS
• Connector: IPEX1

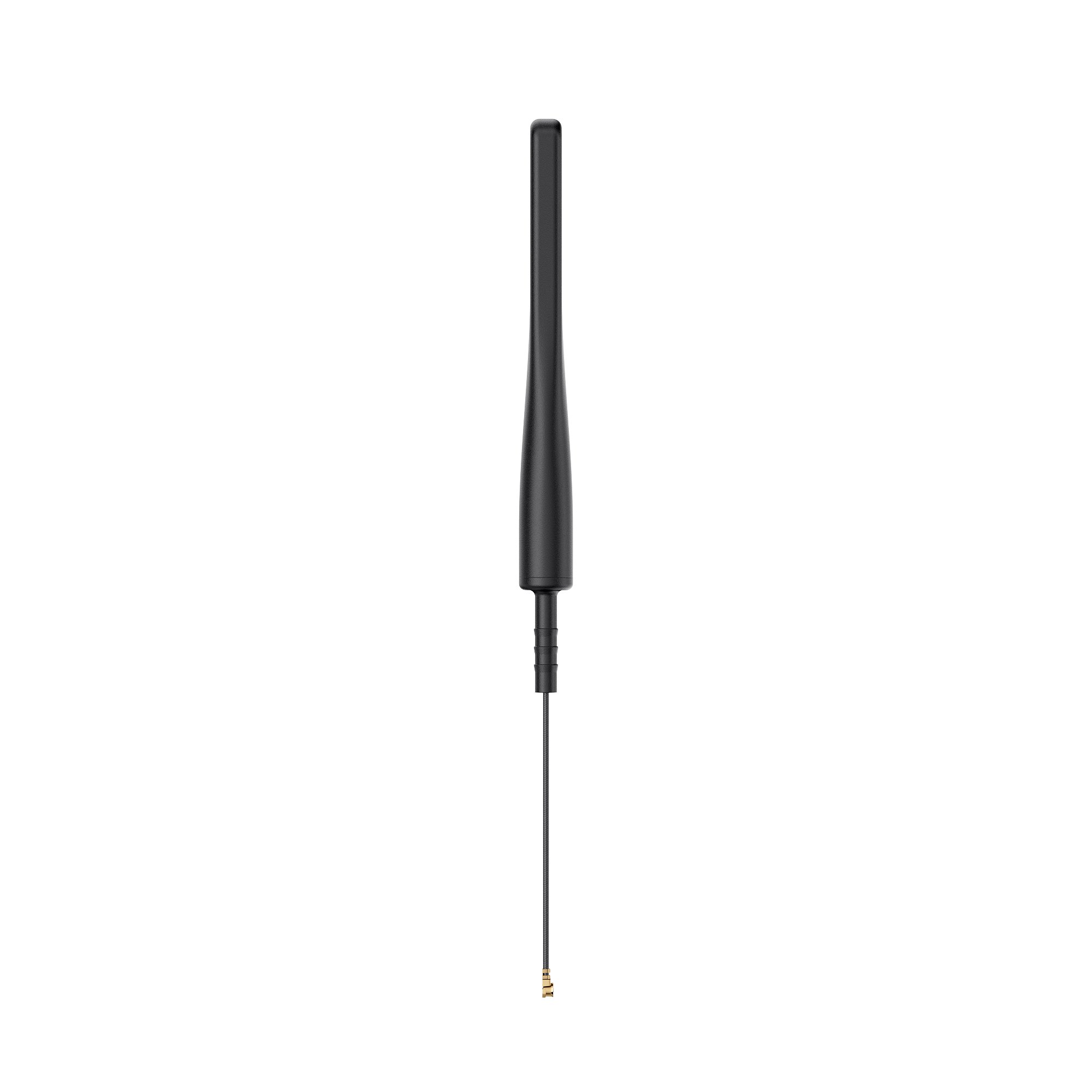

GEPRC 2.4GHz Stick Antenna (IPEX1)

• Model: GEPRC 2.4GHz Stick Antenna (IPEX1)
• 2.4Gz Center Frequency: 2450MHz
• Frequency Range: 2.4GHz
• Polarization: Linear
• 2.4GHz Gain: 2.71 dBi
• VSWR: ≤1.5
• 2.4GHz Radiation Efficiency: 74.56%
• Cross-Polarization Suppression: -25 dB
• Length: 90mm
• Feed Line Length: 55mm
• Antenna Type: PCB
• Weight: 3.3 ± 0.2 g
• Housing Material: ABS
• Connector: IPEX1

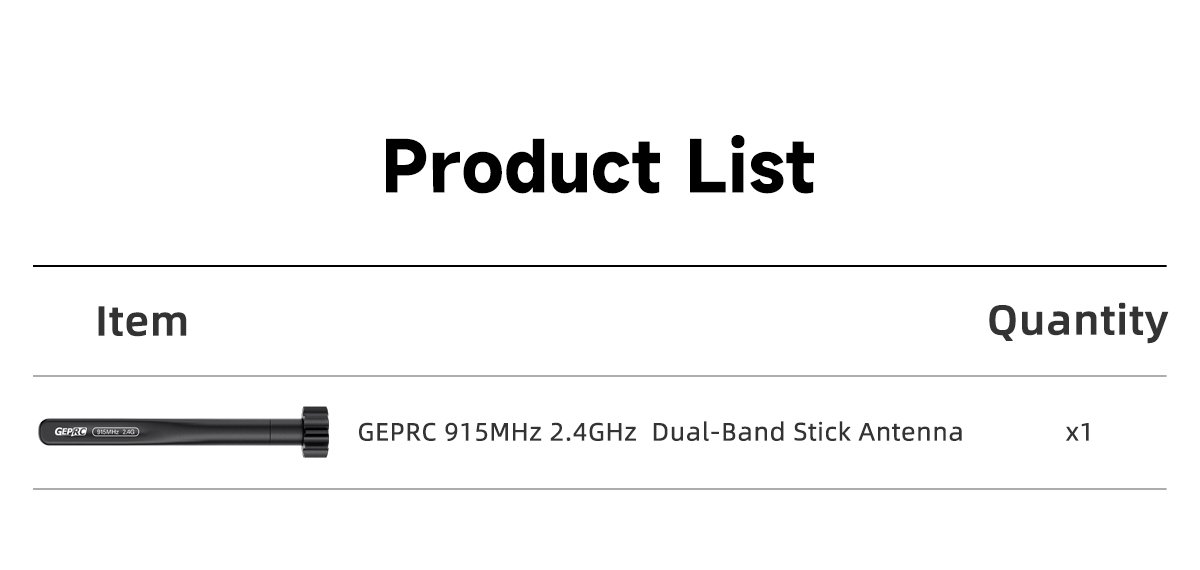

Include

1 x GEPRC Stick Antenna
