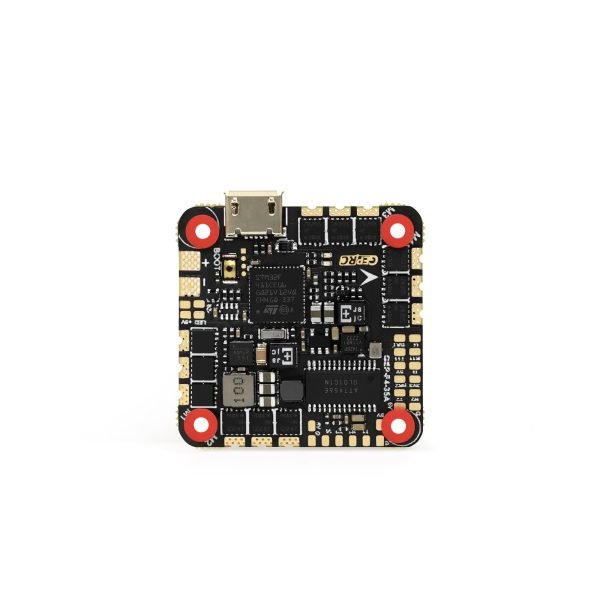

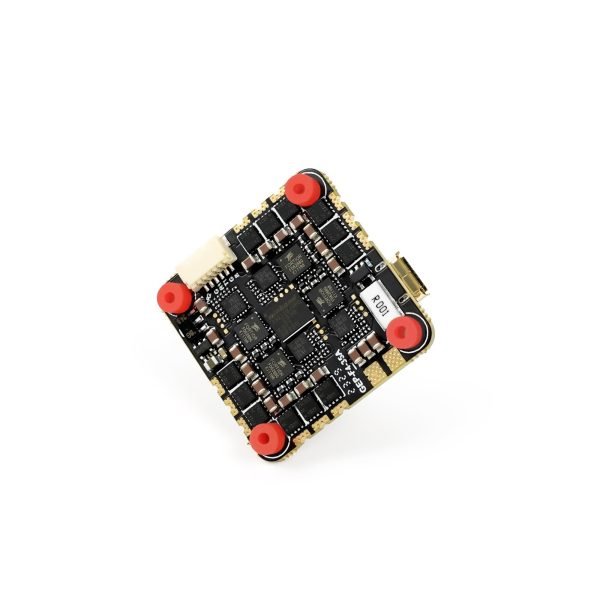

GEP-F411-35A AIO (F411 FC 35A 2-6S 8bits BLS ESC 25.5mm)

Summary：

I am glad to introduce a new member of GEP FC AIO, GEP-F4-35A,it is released now.

GEP-F4-35A is developed on the basis of GEP-F4-20A. It can handle 35A continuous current and (40A burst), totally supports the 2-6S lipo battery.It can be used with 1204/1404/1507/1805/2004 motors and 2-5 inch propellers. Support OSD parameter adjustment. It’s 8.8g ultra light weight, and 25.5mm * 25.5mm mounting holes, suitable for most of the frames on the market.

Changelog:

June 14th,2022: Gyro updated to BMI270.

June 25th,2022:Mounting Hole Size changed from 26.5×26.5mm to 25.5×25.5mm.

Specification:

• Model: GEP-F411-35A  AIO
• MCU: STM32F411
• IMU: BMI270/accelerometer(SPI)
• Target: GEPRC_F411_AIO
• OSD: Betaflight OSD w/ AT7456Ev
• UART Ports: T1 R1 / T2 R2
• Beep: YES
• LED: YES
• USB Connector: micro USB
• ESC MCU: 8BB21F16G
• Intergrated LC Filter
• Continue Current: 35A
• Burst Current: 40A(10s)
• Input Voltage: 2~6S (LIPO Battery)
• ESC Protocol: Dshot300/600,Oneshot,Multishot
• Blackbox:16Mb
• ESC Target: G_H_30 BLS
• Size: 32x32mm Board
• Mount Holes: 25.5×25.5mm
• Weight: 8.8g

Features:

• BLhelis_ S 35A ESC, support 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with current meter.
• Mainstream STM32F411 FC and runs stably.
• BMI270 gyroscope with 8K sampling frequency.
• Rich external ports, it supports buzzer and LED light function.
• 25.5mm * 25.5mm mounting holes and ultra light weight, suitabe for most of the frame on the market.

Include:

• 1 x GEP-F4-35A-AIO
• 1 x XT30-7CM-18AWG cables
• 1 x 35V220UF capacitance
• 8 x M2*6.5mm Damping rings

Manual:

F411-35A AIO USER MANUAL.pdf
