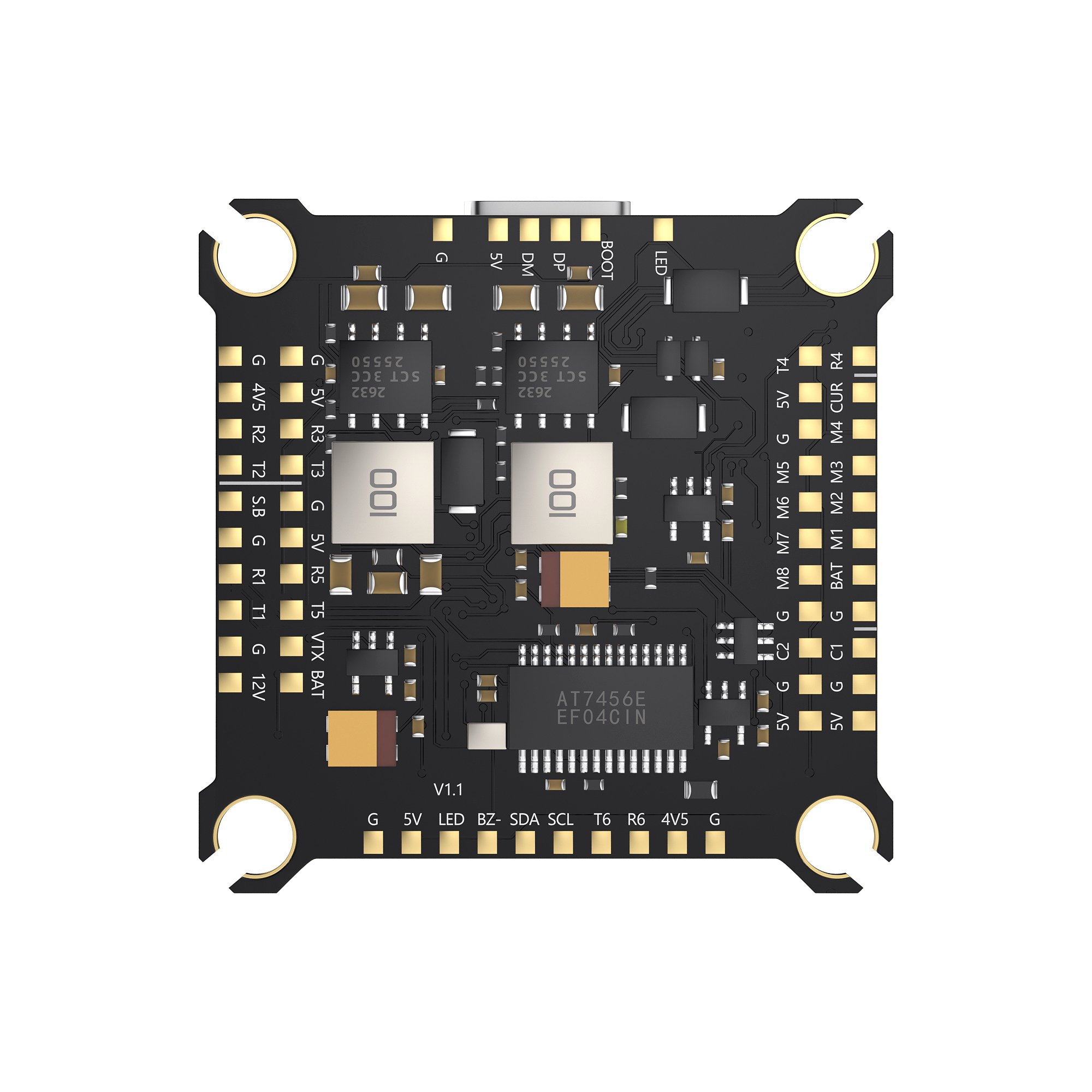

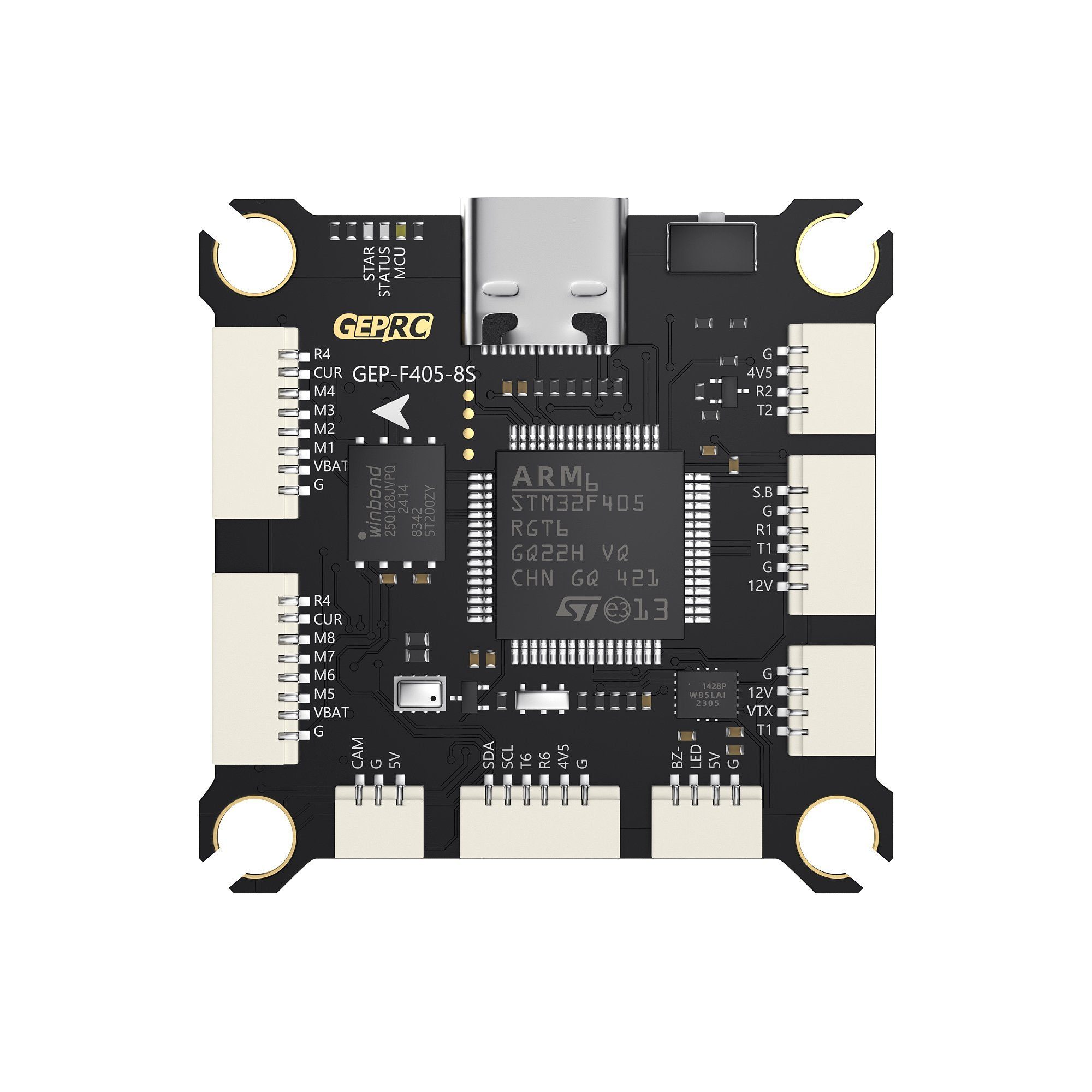

GEP-F405-8S Flight Controller

$47.99

SKU: GP107493 Categories: , Tags: , ,

Feature

  1. Use mainstream STM32F405 chip
  2. Equipped with the latest 42688-P gyroscope
  3. 16M Blackbox storage
  4. 5V@3A+12V@3A dual independent BEC
  5. Integrated LC filter
  6. Upgrade type-C USB interface
  7. Directly plugged into the DJI Air Unit
  8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
  9. Integrated barometer
  10. Supports 8S voltage
  11. Support direct insertion of 8 motors

Specifications

  • FC Model: GEP-F405-8S Flight Controller
  • MCU: STM32F405
  • IMU: ICM42688-P(SPI)
  • Air Unit Connection: Direct plugging into DJI Air Unit
  • Black Box: 16M onboard
  • Barometer: Support
  • Motor outputs: M1-M8
  • USB Interface: Type-C
  • OSD: BetaFlight OSD w/ AT7456E chip
  • BEC: 5V@3A,12V@3A dual BEC
  • Firmware Target: GEPRCF405_8S
  • Size: 37x37mm
  • Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
  • Input Voltage: 3-8S LiPo
  • UART: 6 UARTs
  • Power Filter: Integrated LC filter
  • Weight: 8.3g

Includes

1 x Flight Controller

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

4 x Nylon nuts

4 x Silicone grommets

2 x sh1.0 4pinsilicone cable

1 x Camera connection cable
