GEP-DS25 Frame & Parts(DarkStar25)

Summary

GEP-DS25 is a 2.5-inch FPV drone frame designed for indoor and outdoor flight. Combining safety and performance, it integrates durable protection, strong power, and long endurance into a compact design.

Made of high-strength composite material with a reinforced structure, the frame provides strong impact resistance and stable flight.

Its optimized wheelbase and lightweight design deliver agile handling for flying through buildings or over treetops.

The cream white canopy supports DIY customization, allowing pilots to create a unique look.

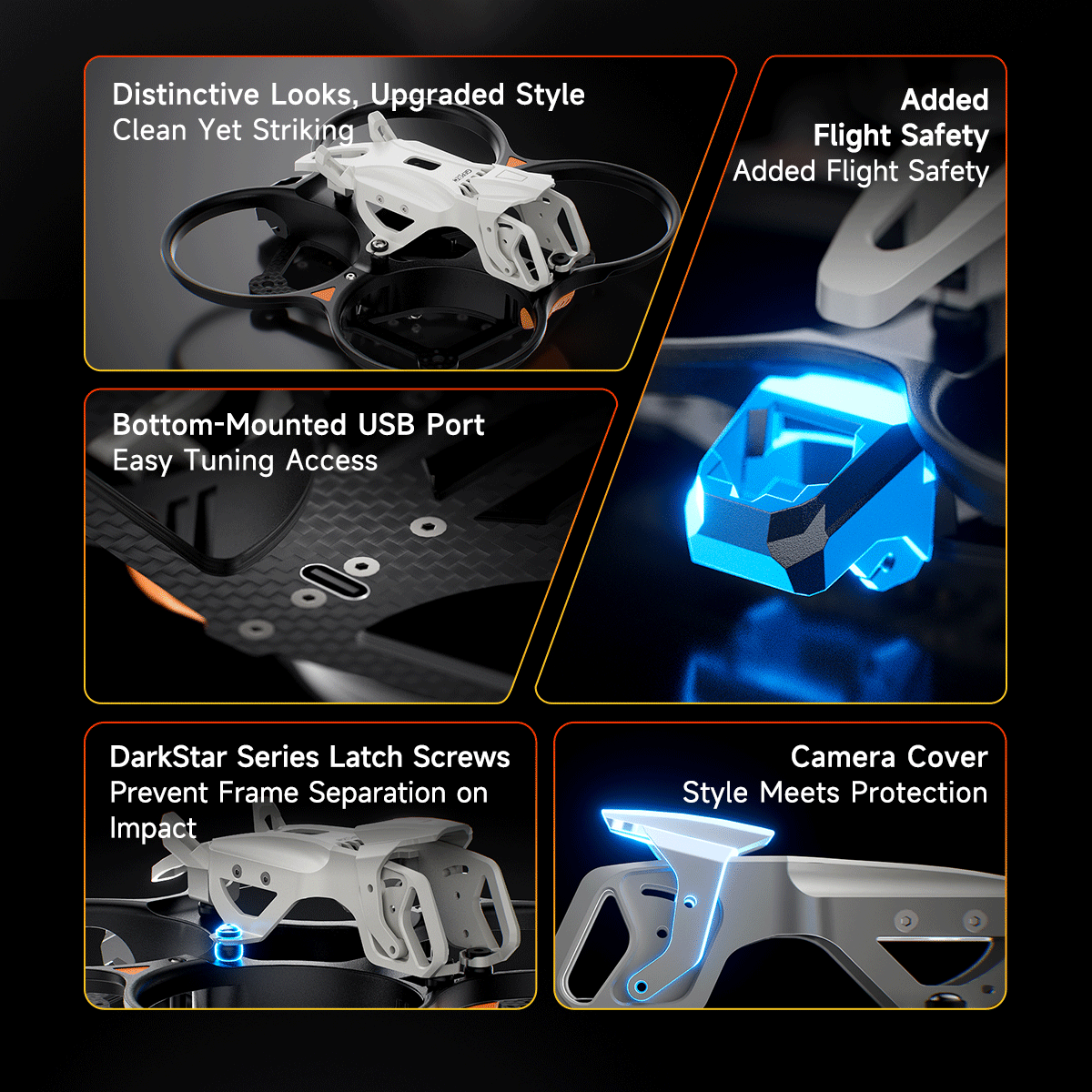

Features

1. Reinforced nylon composite material for a stronger structure and better impact resistance.

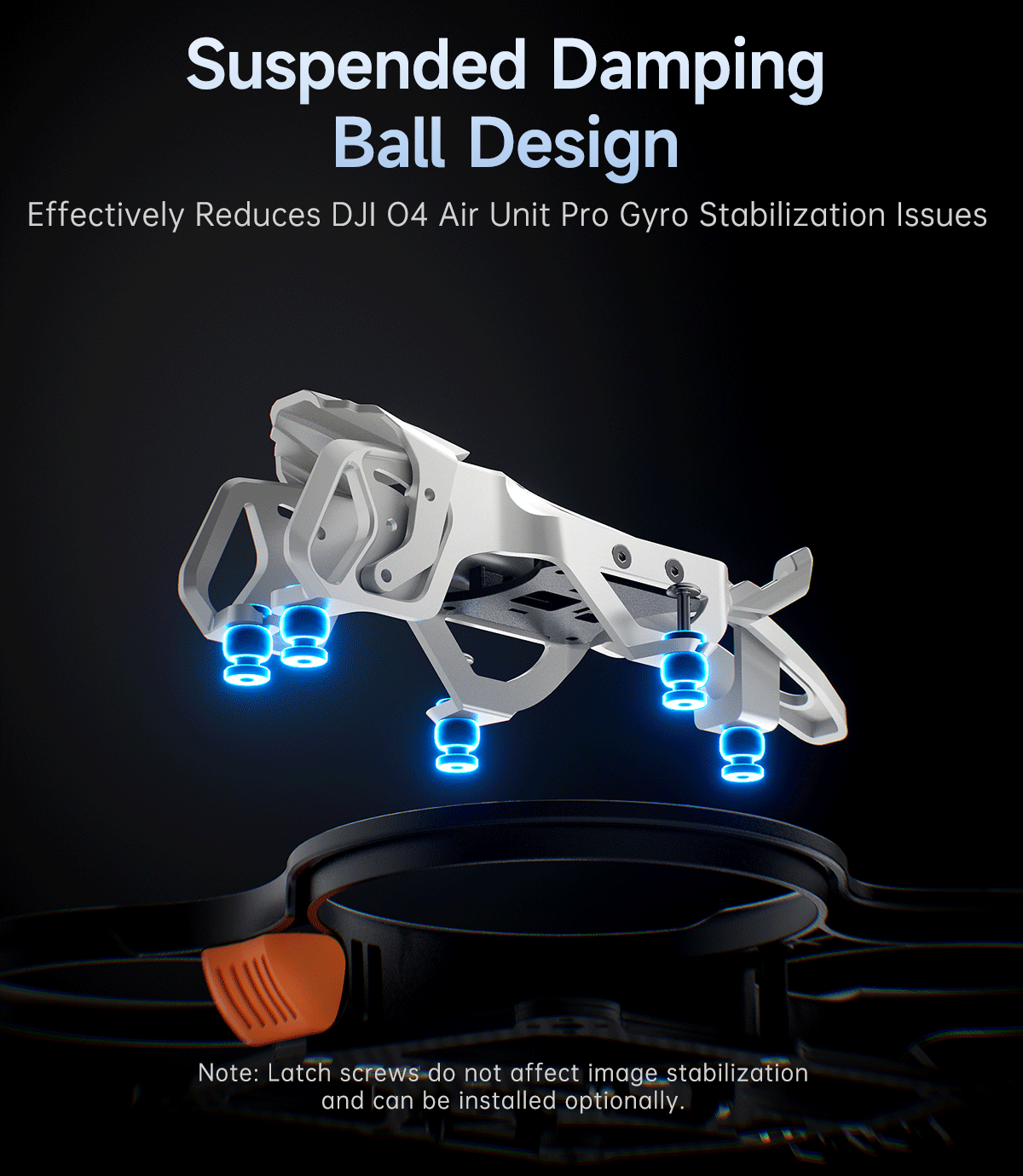

2. Five-point suspended damping structure for improved impact and vibration absorption.
3. New ivory top canopy with a clean and stylish look.
4. Built-in GPS compartment for safer flight.
5. Dedicated protective cover for the DJI O4 Pro lens.
6. Quick-release top canopy and prop guard for easy maintenance.
7. Damper balls with retaining screws for double locking, preventing the top frame from separating during crashes.

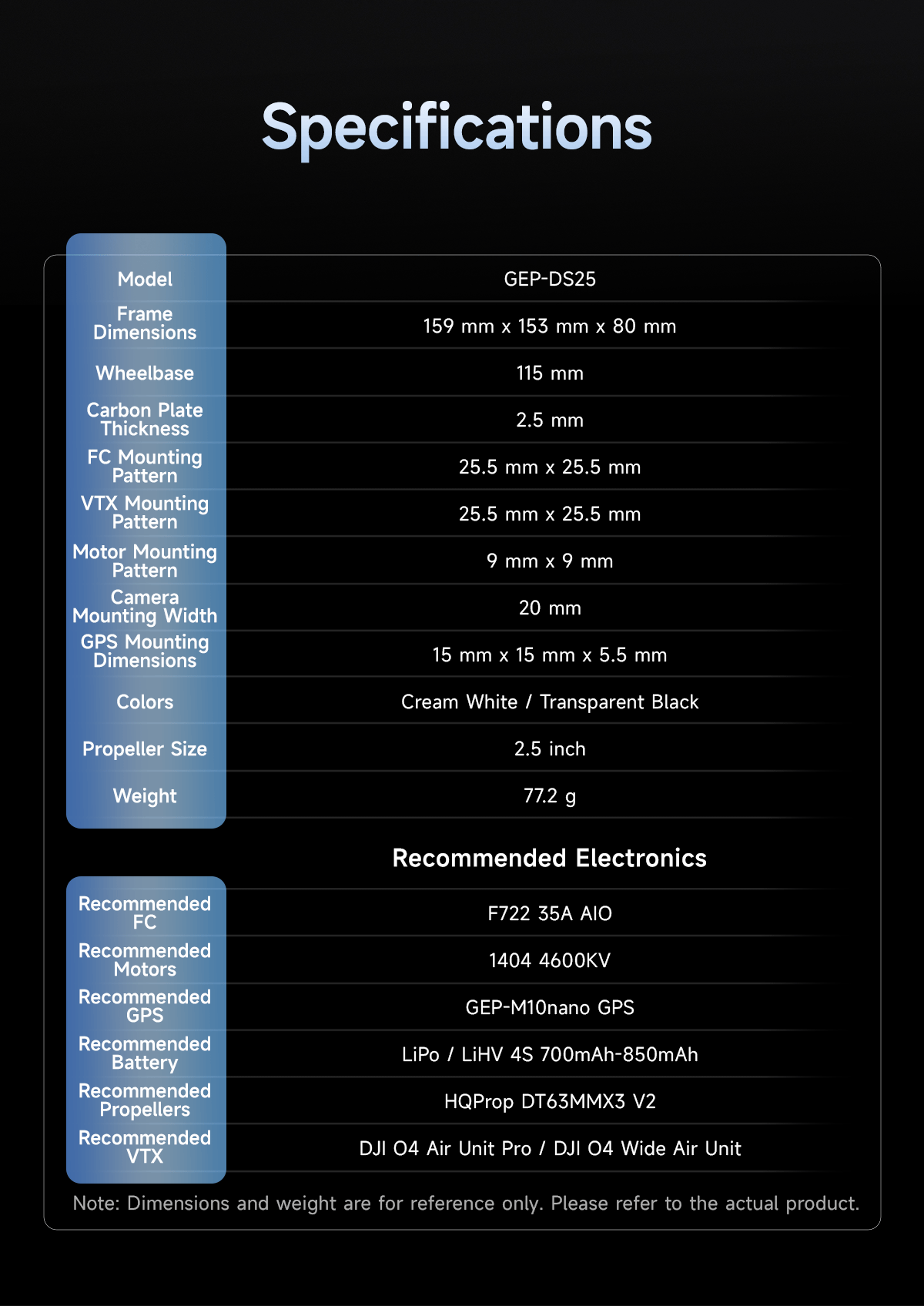

Specification

• Model: GEP-DS25 Frame
• Prop Guard Color: Black
• Camera Cover Color: Cream White / Transparent Black
• Canopy Color: Cream White / Transparent Black

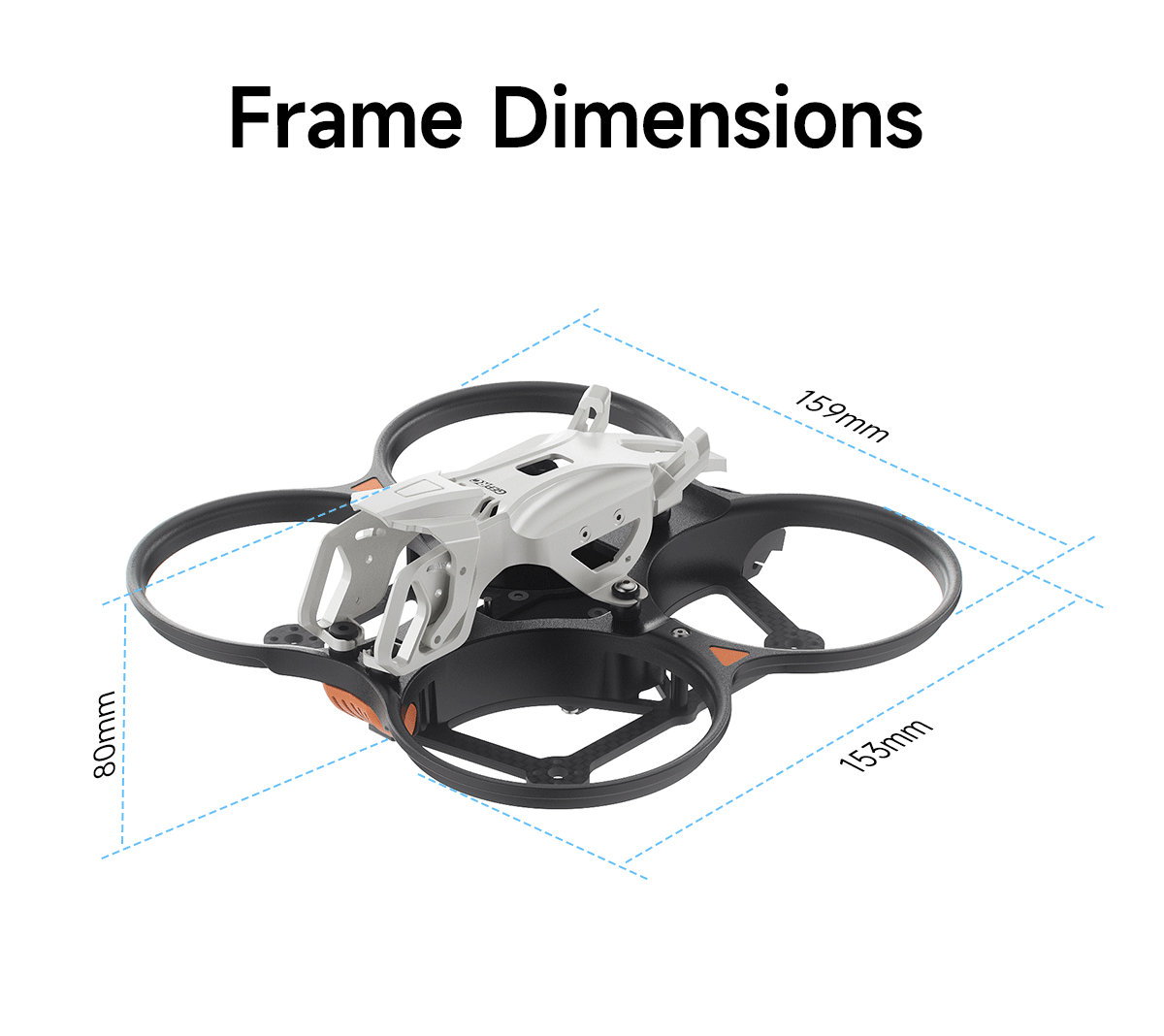

• Frame Size: 2.5 inch
• Wheelbase: 115 mm
• Main Carbon Plate Thickness: 2.5 mm

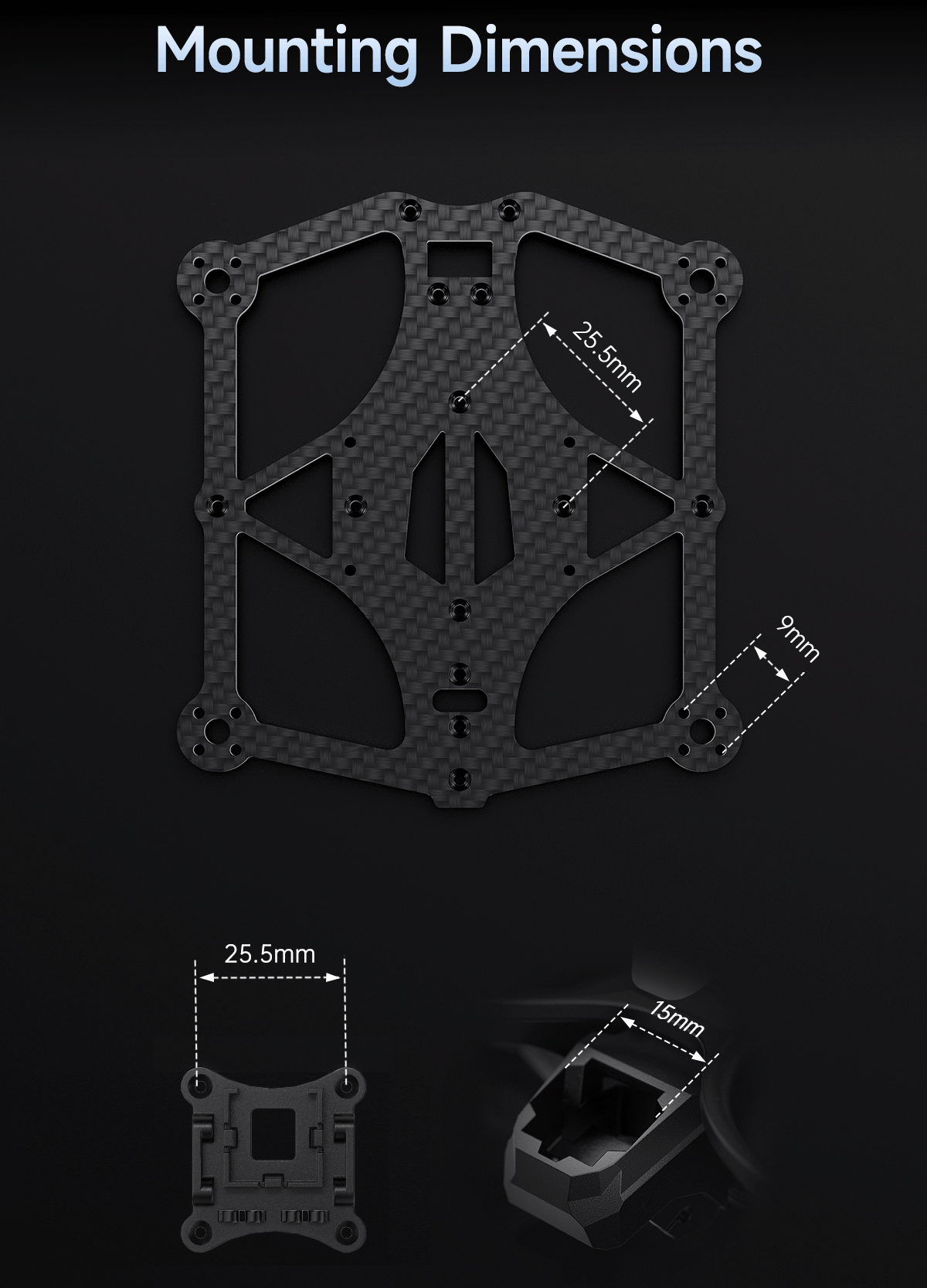

• FC Mounting Pattern: 25.5 mm × 25.5 mm
• VTX Mounting Pattern: 25.5 mm × 25.5 mm
• Motor Mounting Pattern: 9 mm × 9 mm
• Camera Mounting Width: 20 mm
• Power Connector: XT30U-M
• Propeller Size: 2.5 inch
• Frame Weight: 77.2 g

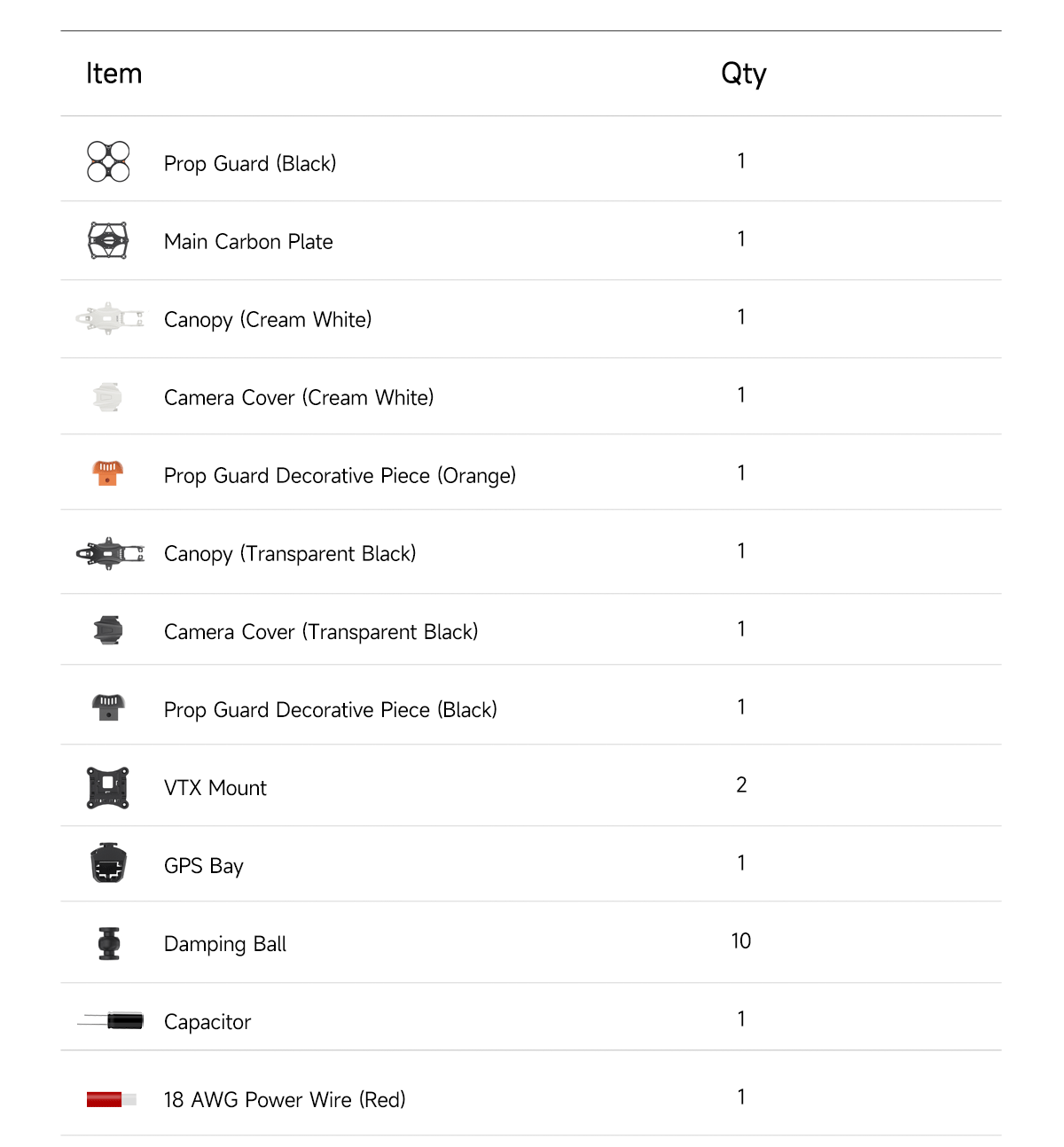

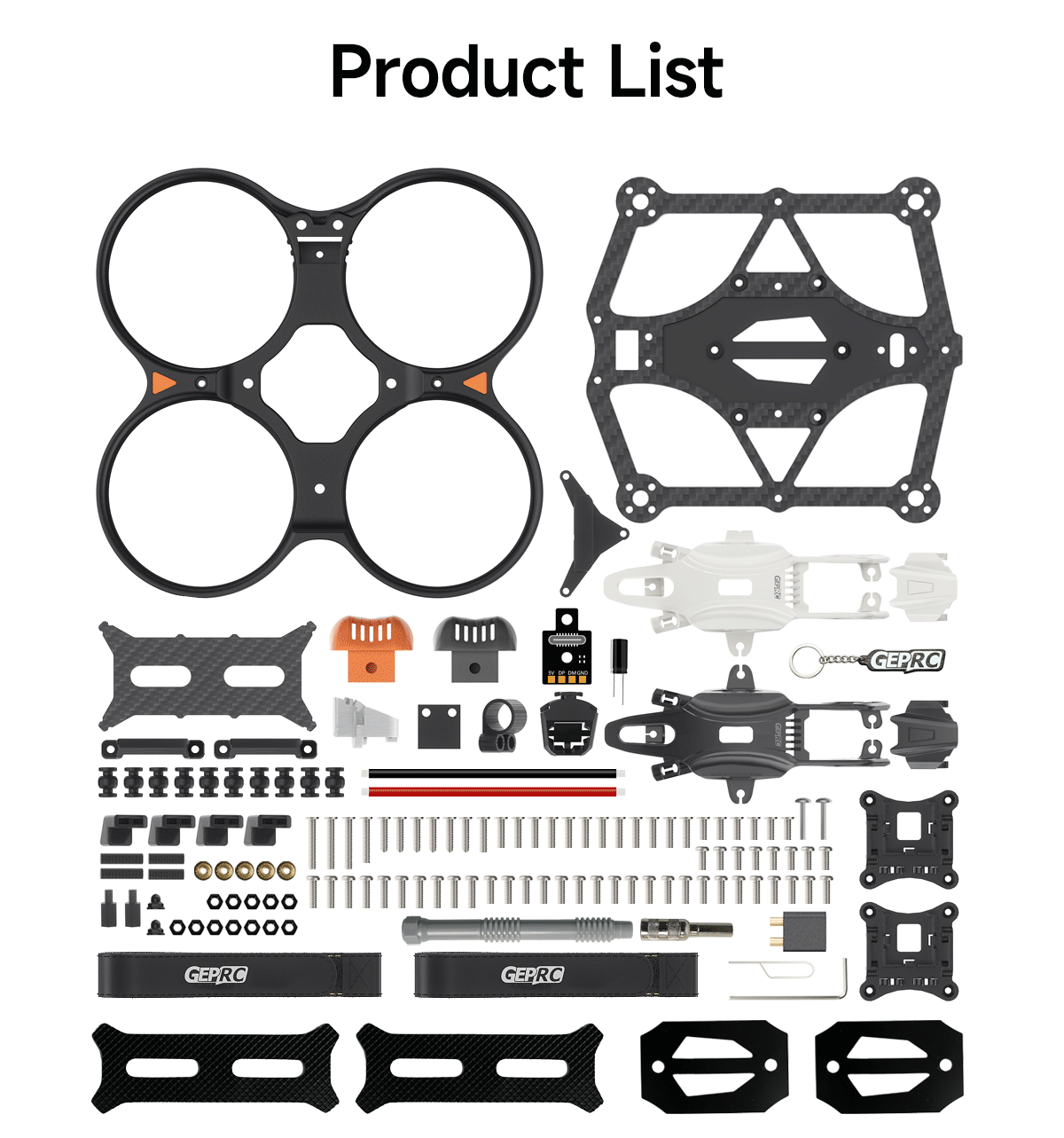

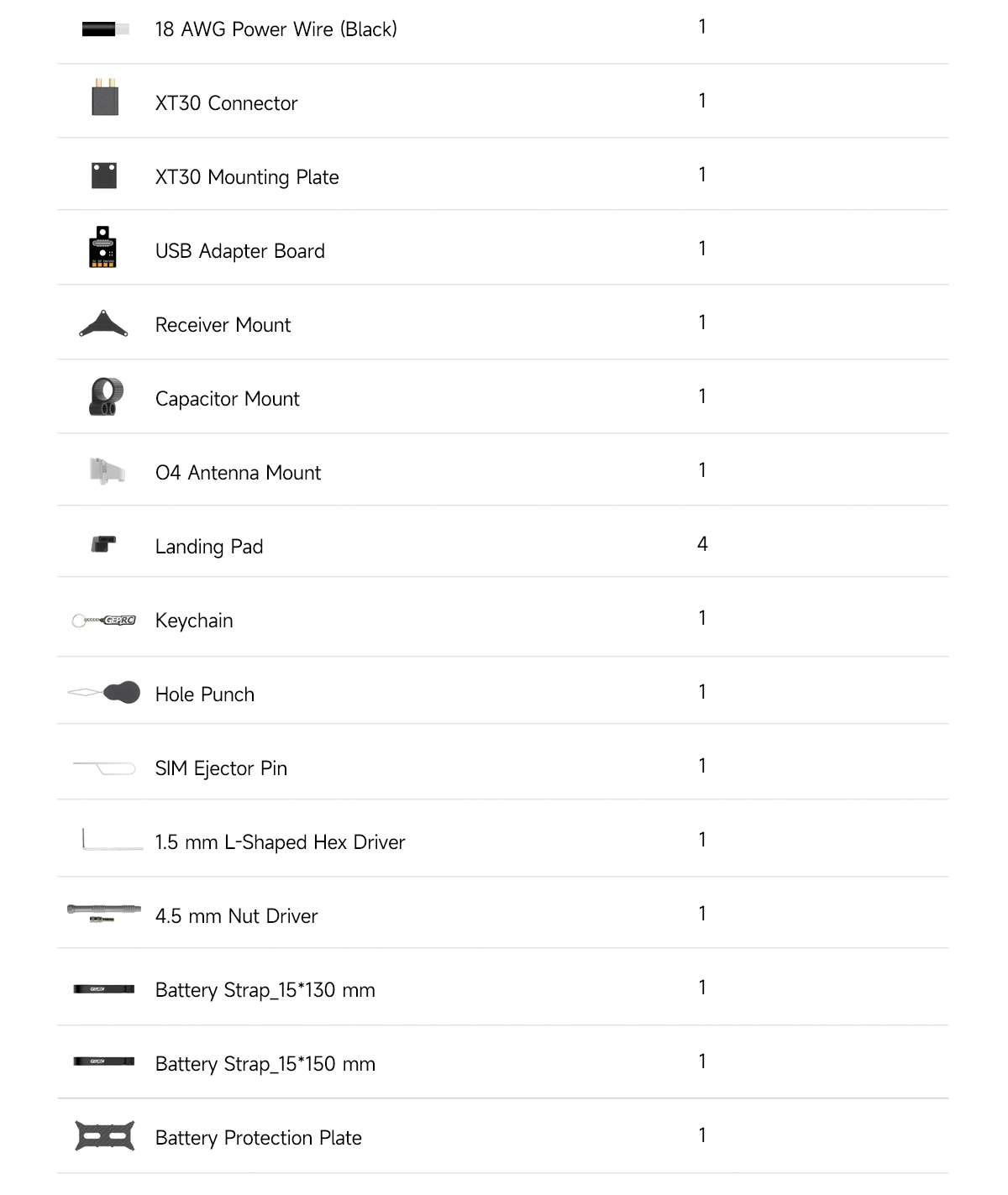

Includes

1 x Prop Guard (Black)

1 x Main Carbon Plate

2 x Canopy (Cream White / Transparent Black)

2 x Camera Cover (Cream White / Transparent Black)

2 x Prop Guard Decorative Piece (Orange / Black)

2 x VTX Mount

1 x GPS Bay

10 x Damper Ball

1 x Capacitor

1 x XT30 Connector

1 x XT30 Mounting Plate

1 x USB Adapter Board

1 x Receiver Mount

1 x Capacitor Mount

1 x O4 Antenna Mount

4 x Landing Pad

1 x Keychain

1 x Hole Punch

1 x SIM Eject Pin

1 x 1.5 mm L-shaped Screwdriver

1 x 4.5 mm Socket Wrench

1 x Battery Strap_15*130 mm

1 x Battery Strap_15*150 mm

2 x Battery Anti-slip Pad

2 x Battery Protection Plate Anti-slip Pad

1 x Battery Protection Plate

1 x Screw Pack

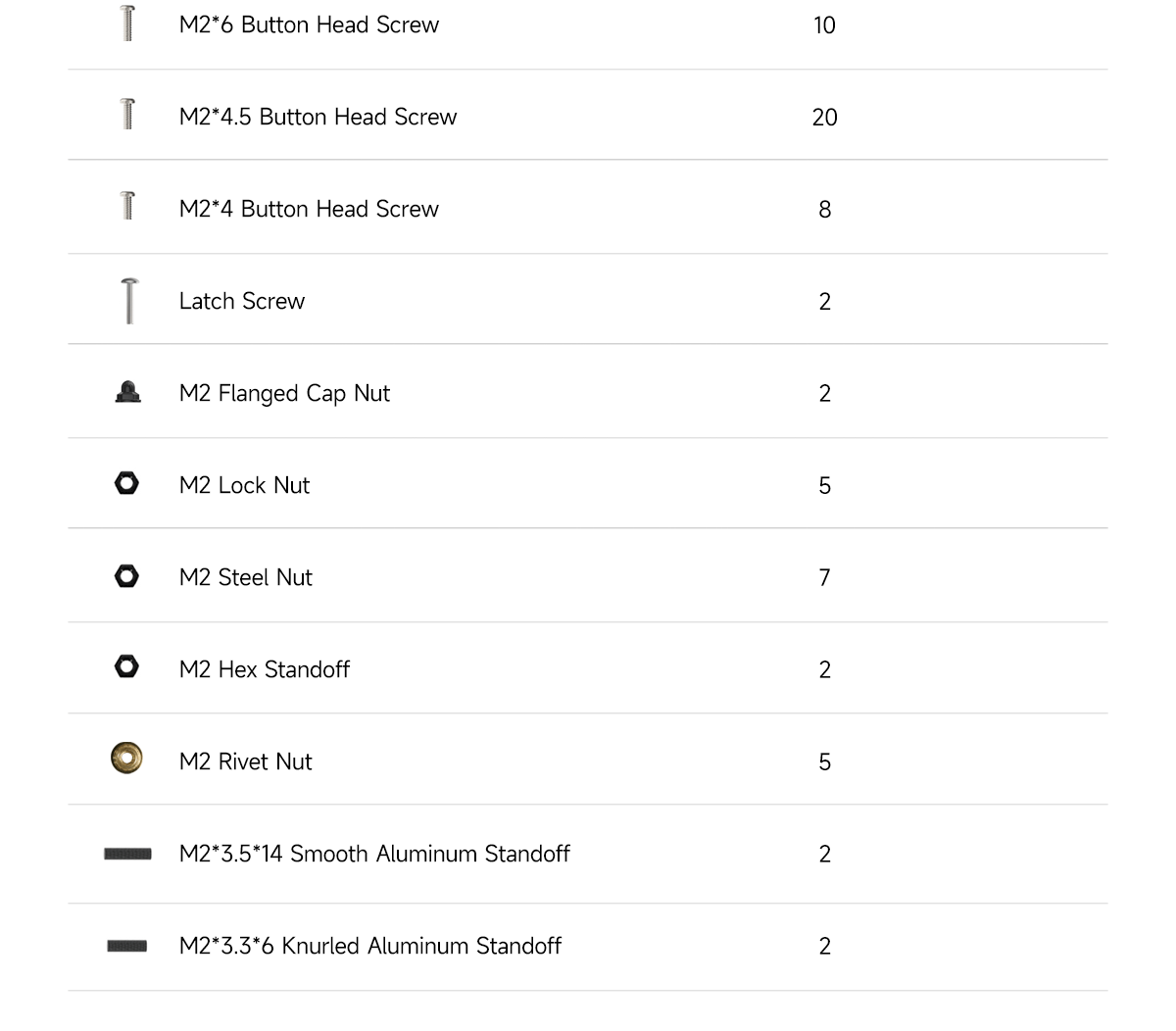

Screw Pack Includes:

3 x M2*14 Countersunk Screw

1 x M2*12 Countersunk Screw

6 x M2*7 Countersunk Self-tapping Screw

1 x M2*7 Countersunk Screw

12 x M2*6 Countersunk Screw

6 x M2*4 Countersunk Screw

10 x M2*6 Button Head Screw

20 x M2*4.5 Button Head Screw

8 x M2*4 Button Head Screw

2 x Latch Screw

2 x M2 Flange Cap Nut

5 x M2 Lock Nut

7 x M2 Steel Nut

2 x M2 Hex Aluminum Standoff

5 x M2 Press-fit Nut

2 x M2*3.5*14 Smooth Aluminum Standoff

2 x M2*3.3*6 Knurled Aluminum Standoff
