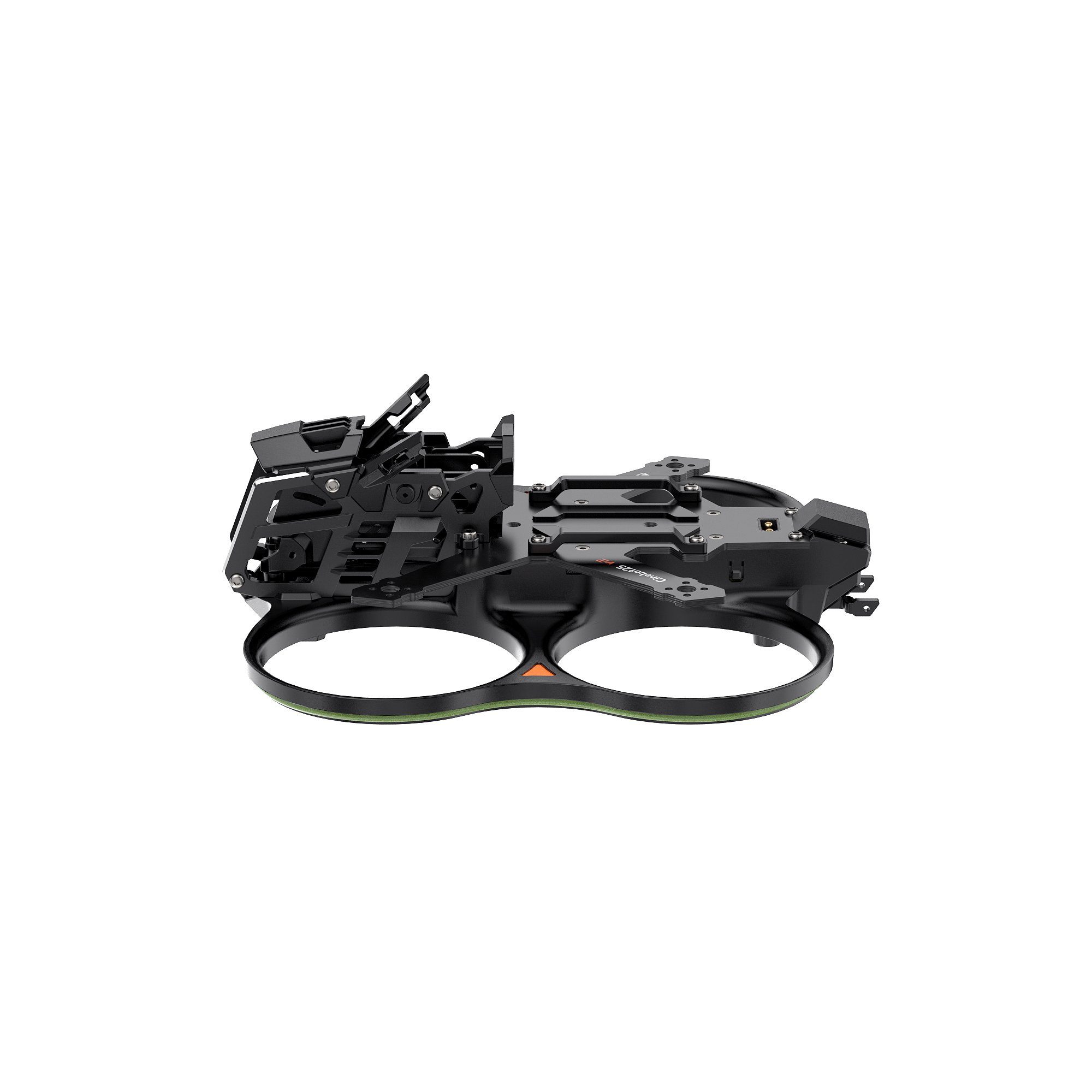

GEP-CT25 V2 Frame & Parts(Cinebot25 V2)

Price range: $1.00 through $52.99

All-New Evolution

SKU: N/A Categories: , , Tags: , , ,

Summary

GEPRC introduces the all-new Cinebot25 V2, built for superior image quality and long-term versatility.

Featuring our innovative 6-Point Floating Shock-Absorbing VTX Module, the DJI O4 Air Unit Pro is mounted in an independent suspended structure to effectively isolate high-frequency vibrations, delivering cleaner and more stable footage.

The modular design supports 2.5-inch frames and future platforms, enabling flexible upgrades and lower maintenance costs.

Cinebot25 V2 — Fly smarter. Capture better.

Features

  1. Equipped with the latest DJI O4 Air Unit Pro
  2. 6-Point Floating Shock-Absorbing VTX Module
  3. Fully optimized frame structure with enhanced electronics bay protection
  4. Dedicated function board with buzzer, LED BEC, and USB tuning port
  5. Precision-designed front cover to protect the O4 Pro lens
  6. Integrated Prop Guard frame with built-in COB LED mounting slots for night visibility

Specification

  • Model: GEP-CT25 V2 Frame Kit
  • Color: Black
  • Wheelbase: 123 mm
  • Main Carbon Plate Thickness: 2.0 mm
  • FC Mounting: 25.5 × 25.5 mm
  • Motor Mounting: 9 × 9 mm
  • Camera Mount Width: 20 mm
  • Power Connector: XT30
  • Compatible Propellers: 2.5 inch
  • Frame Weight: 110±5g

Manual

Cinebot25 V2 Frame Assembly Instruction

Includes

1 × Prop Guard

1 × Top Plate

1 × Bottom Plate

2 × Battery Straps

2 × Aluminum Battery Strap Mounts

4 × Anti-Slip Battery Pads

1 × Function Board

1 × Receiver Antenna

1 × Receiver Antenna Injection-Molded Mount

1 × Receiver 3D Printed Mount

1 × Capacitor 3D Printed Mount

2 × Acrylic Plates

1 × Screw Kit

1 × Cinebot Front Module Kit

1 × Front Module / Landing Injection-Molded Parts Pack

1 × Cable Set

PARTS

GEP-CT25 V2 Frame, GEP-CT25 V2 Frame (Without LED Strip), Arm Plate, Bottom Carbon Plate, Protective Frame, GPS Protective Cover, Front Battery Stopper Plate, Front Aluminum Camera Mount(Left), Front Aluminum Camera Mount(Right), O4 Antenna Mount(Pair), O4 Air Unit Mount(Pair), Rear Landing Pads, Front Landing Pads, Top Cover, Ice Blue LED Strip, Receiver 3D Printed Mount, Damping Balls, Receiver Antenna Injection-Molded Mount, Front Lip Custom Aluminum Standoff, Battery Anti-Slip Pad(Pair), Function Board, 15 x 150mm Battery Strap, Battery Strap Aluminum Mount(Pair), AMASS XT30U-M Connector, Capacitor Mount(3D Printed), IPEX1 2.4G T Antenna, Smooth Aluminum Standoff, 25V 220uF 8x12mm Electrolytic Capacitor, Cable Pack, Screw Pack, Camera Cage
