SUMMARY

The leopard, natural predators, running at a staggering rate

This is the GEP-LX, also called ‘Leopard’, There are three kinds of specifications respectively. 4inch(wheelbase 195mm), 5inch(wheelbase 220mm), 6inch(wheelbase 255mm). The fuselage low center of gravity design.

The machine use 3k ultra-light carbon plate + Aviation aluminum # 7075 body. To strengthen the four arm, we also design a fixed four arm of the aluminum alloy parts, it is not easy to make the machine arm shift.

In order to perfect fit more lens, we presented two schemes of board. The optimum foxeer HS1190 models of cameras and 1 or 2 generation Runcam Swift models of cameras. We also equipped with A piece of PDB, take BEC output 5 v 3 A and 12V 0.5A.The frame all adopt the YFS screws, 12.9 magnitude

PRODUCT BASIC INFORMATION

  1. 1







SPECIFICATIONS

Name:GEP-LX4 Leopard
Weight:109g
Wheelbase:195mm
Props Size: 4inch
Size:175*175mm
Arms board:4mm
Side board:2mm
Other board:1.5mm

Recommended

Flight Controller:F3 /F4  / Naze32 / CC3D
Motor: 2204/2205
Esc:20A-30A
Props:4inch
Battery:  3S 1300mAh ~ 4S 1300mAh

  1. 1







SPECIFICATIONS

Name:GEP-LX5 Leopard
Weight:114g
Wheelbase:220mm
Props Size: 5inch
Size:195*195mm
Arms board:4mm
Side board:2mm
Other board:1.5mm

Recommended

Flight Controller:F3 / F4 / Naze32 / CC3D
Motors: 2204/2205/2206/2305/2306
ESC:20A-35A
Propeller:5inch
Battery:  3S 1300mAh ~ 4S 1500mAh

  1. 1







SPECIFICATIONS

Name:GEP-LX6 Leopard
Weight:123g
Wheelbase:220mm
Props Size: 6inch
Size:220*220mm
Arms board:4mm
Side board:2mm
Other board:1.5mm

Recommended

Flight Controller:F3 / F4 / Naze32 / CC3D
Motors: 2204/2205/2206/2305/2306
ESC:30A-40A
Propeller:6inch
Battery:  3S 1300mAh ~ 4S 1800mAh

Features

  1. Aviation aluminum # 7075 high-precision CNC fuselage, very strong resistance to blast
  2. 3K high strength carbon board to ensure that the frame is strong
  3. An aluminum alloy structure, binding the four machine arm will not shift
  4. “True X” Suitable for competition and Freestyle fancy flying
  5. Reasonable gopro, runcam position, convenient video
  6. 5 mm wide, 4 mm thick arm design, small wind resistance coefficient
  7. 5 inch wheelbase 220 mm, 4 “wheelbase 195 mm, 6 inch wheelbase 255 mm, have wider air through
  8. The YFS screws, 12.9 level of hardness
  9. Two sets of cameras side panel, support HS1190 HS1170, Swift, ovf lens, etc
  10. The motor position widened, home is not easy to hit the motor
  11. The camera is adjustable, 0 to 60 degrees
  12. With the kits: a piece of PDB panels, integrated XT60, BEC (5/12v output)

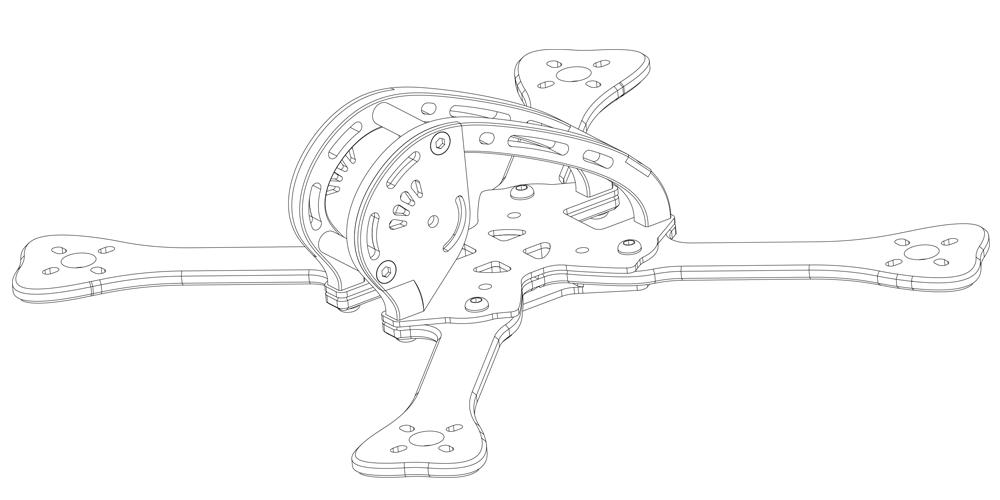

DESIGN DRAWINGS

The design of the bit by bit

DETAILS

  1. 1







# 7075 AVIATION ALUMINUM ALLOY

Ensure strong high strength structure
  1. 1







ARM FIXED PIECES

It is unshakable
  1. 1







COMPATIBLE WITH A VARIETY OF CAMERAS

Hs1177/Hs1190/Swift/Swift2
  1. 1







2MM THICK CAMERA PROTECTION BOARD

Use 3k high strength carbon plate

  1. 1







TRUE “X” STRUCTURE

Is good for racing and freestyle
  1. 1







FIXED THE ANTENNA SEAT

2 mm thickness to be used for fixed antenna
  1. 1







HIGH PRECISION CNC

Precise process to ensure safety

  1. 1







A LOW CENTER OF GRAVITY

The fuselage height only 45 mm
  1. 1







3 VERSION CHOICE

4inch,5inch,6inch
  1. 1







LARGE SPACE INSIDE

Don’t worry about not enough space

  1. 1







BATTERY PROTECTION BOARD

Don’t have to worry about battery is destroyed
  1. 1







TAIWAN YFS BRAND SCREW

12.9 level screw

ALL PARTS
